RN35-KDS (1981)

Toyota Hilux

Production Oct 1981 - Aug 1985
Engine 12RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110- )LN30,4#,RN35,45

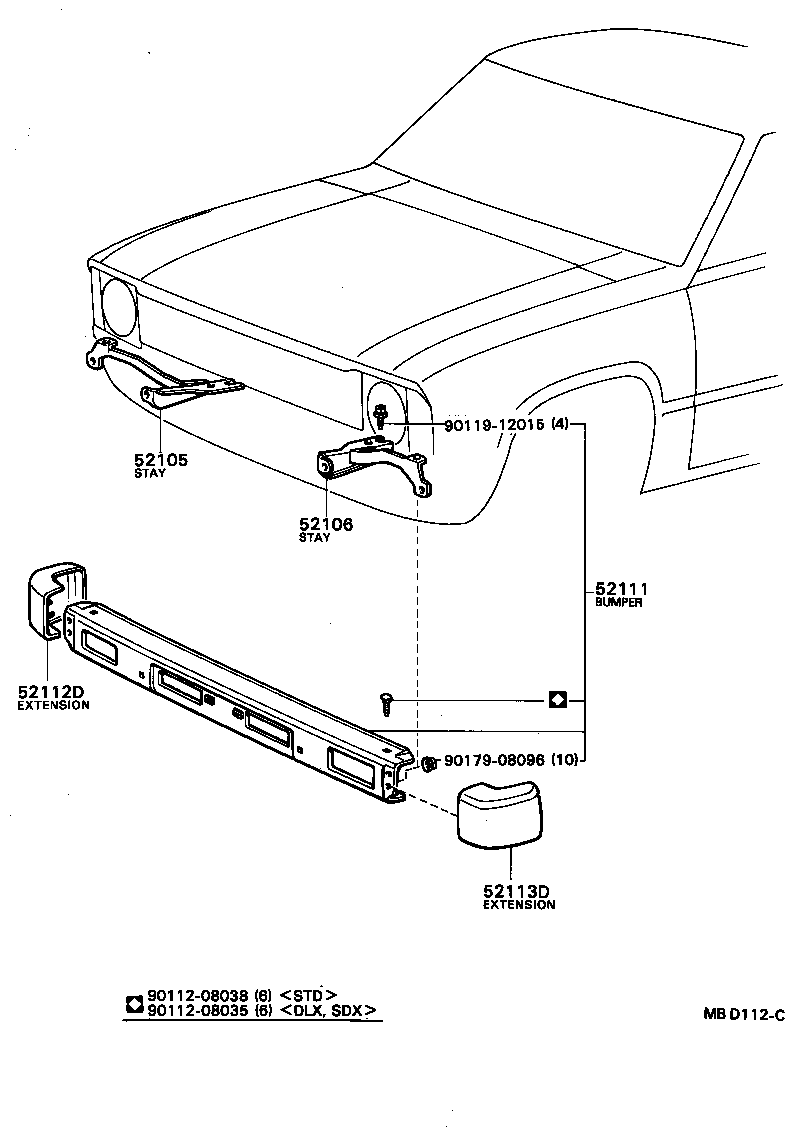

Click highlighted areas on diagram

diagram 52105 52106 52111 52112D 52113D 9011208035 9011208038 9011912015 9017908096
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-89102

LN30,40,RN30,33,4#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-89102

LN30,40,RN30,33,4#

 1
52111 - BUMPER ASSY, FRONT
52111-39065

LN30,40,RN30,33,4#..DLX,SDX

 1
Common parts
90112-08035
90112-08038
90119-12015
90179-08096
