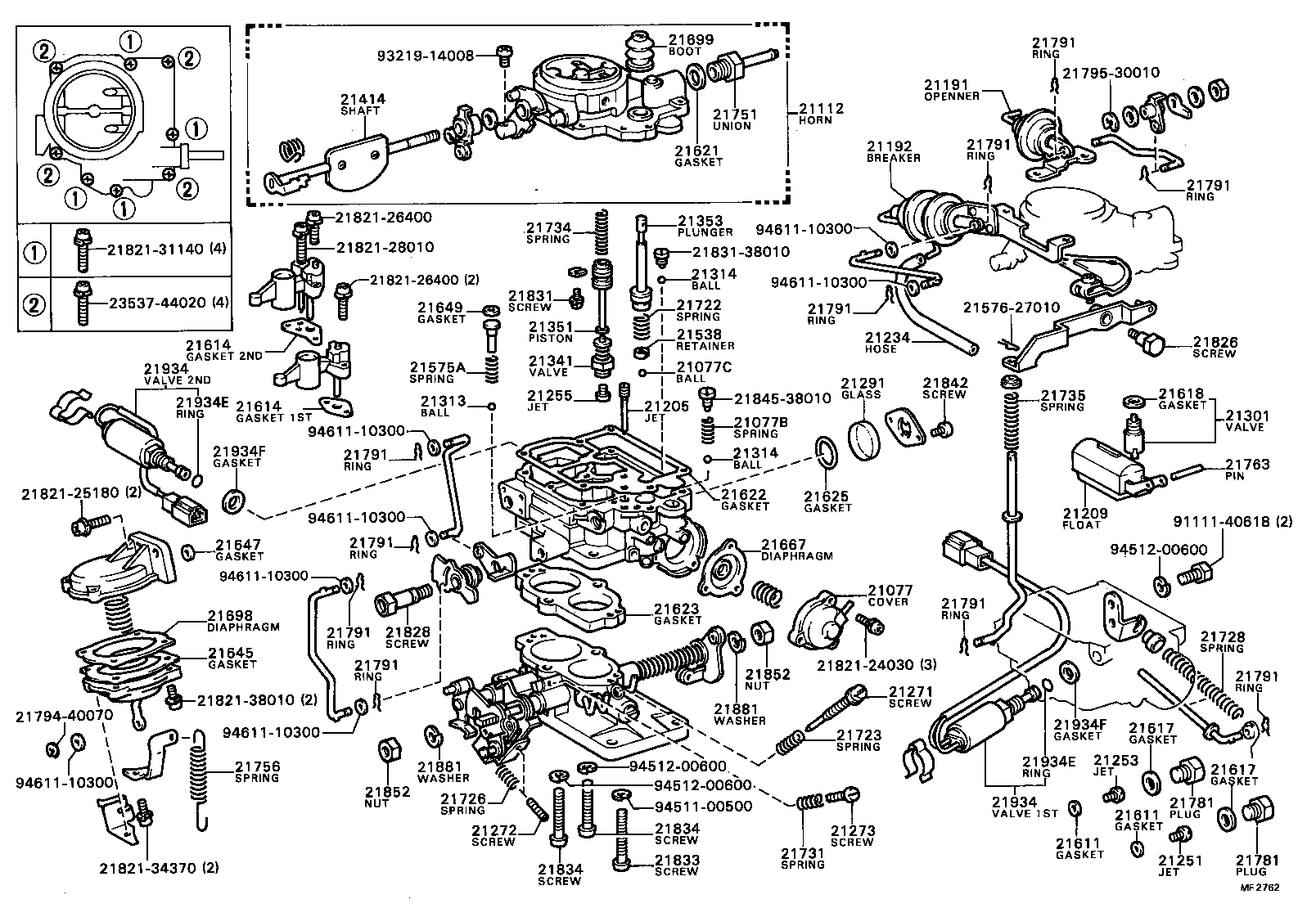

Toyota Hilux RN35 CARBURETOR - JDM Part Detective

Part #	Description	Period	Qty
21209 - FLOAT SUB-ASSY
21209-33080	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21272 - SCREW, 1ST IDLE ADJUSTING
21273-30052	12RJ..RN30,33,4#	08/1978 - 10/1981	1
21273 - SCREW, THROTTLE ADJUSTING
21844-33010	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-11020	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-11020	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21341 - VALVE, POWER
21304-30010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21351 - PISTON, POWER
21351-33080	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21353 - PLUNGER, PUMP
21353-33010	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21538 - RETAINER, BALL CHECK
21538-31010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21575A - SPRING(FOR STOPPER, B)
21864-26020	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21611 - GASKET, MAIN JET
21611-22010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21611 - GASKET, MAIN JET
21611-22010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21614 - GASKET, VENTURI
21614-33010	12RJ..RN30,33,35,4# 1ST	08/1978 - 09/1988	1
21614-33080	12RJ..RN30,33,35,4# 2ND	08/1978 - 09/1988	1
21614 - GASKET, VENTURI
21614-33010	12RJ..RN30,33,35,4# 1ST	08/1978 - 09/1988	1
21614-33080	12RJ..RN30,33,35,4# 2ND	08/1978 - 09/1988	1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21621 - GASKET, UNION NIPPLE
21633-24030	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21622 - GASKET, AIR HORN
21622-26510	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21623 - GASKET, BODY FLANGE
21623-31400	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21625 - GASKET, LEVEL GAGE
21655-60200	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21645 - GASKET, DIAPHRAGM, CAP
21645-33080	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21647 - GASKET, DIAPHRAGM HOUSING CAP
21649-33080	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21641-33011	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21698 - DIAPHRAGM
21669-31400	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21699 - BOOT(FOR PUMP PLUNGER)
21699-21061	12RJ..RN30,33,4#	08/1978 - 10/1981	1
21722 - SPRING, PUMP DAMPING
21722-22010	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21723 - SPRING, IDLE ADJUSTING
21723-21030	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21726 - SPRING, 1ST IDLE ADJUSTING
21723-21030	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21728 - SPRING, THROTTLE VALVE RETURN
21864-31400	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21726-40010	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21734 - SPRING, POWER PISTON
21734-33081	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21735 - SPRING, PUMP ARM
21735-21032	12RJ..RN30,33,4#	08/1978 - 09/1988	1
21751 - UNION, NIPPLE
21751-24290	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21756-31400	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21763 - PIN, FLOAT LEVER
21763-26350	12RJ..RN30,33,35,4#	08/1978 - 09/1988	1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020	12RJ..RN30,33,4#	08/1978 - 10/1981	2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020	12RJ..RN30,33,4#	08/1978 - 10/1981	2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	10
21826 - SCREW, PUMP ARM SET
21826-31012	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	1
21831 - SCREW, POWER PISTON STOP
21842-33010	12RJ..RN30,33,4#	08/1978 - 10/1981	1
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21824-31400	12RJ..RN30,33,35,4#	08/1978 - 09/1988	2
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21824-38010	12RJ,18RJ..RN30,33,35,39,4# W/HOLE	08/1978 - 09/1988	2
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21824-38010	12RJ,18RJ..RN30,33,35,39,4# W/HOLE	08/1978 - 09/1988	2
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21852 - NUT, THROTTLE LEVER SET
21852-30010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21852 - NUT, THROTTLE LEVER SET
21852-30010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21934F - GASKET
21617-10010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
21934F - GASKET
21617-10010	12RJ,18RJ..RN30,33,35,39,4#	08/1978 - 09/1988	2
Common parts
21576-27010
21794-40070
21795-30010
21821-24030
21821-25180
21821-26400
21821-28010
21821-31140
21821-34370
21821-38010
21831-38010
21845-38010
23537-44020
91111-40618
93219-14008
94511-00500
94512-00600
94611-10300

RN35-KDS (1981)

(8110- )12RJ
