RN33-JRSW (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8508)RN30,33,35,4#

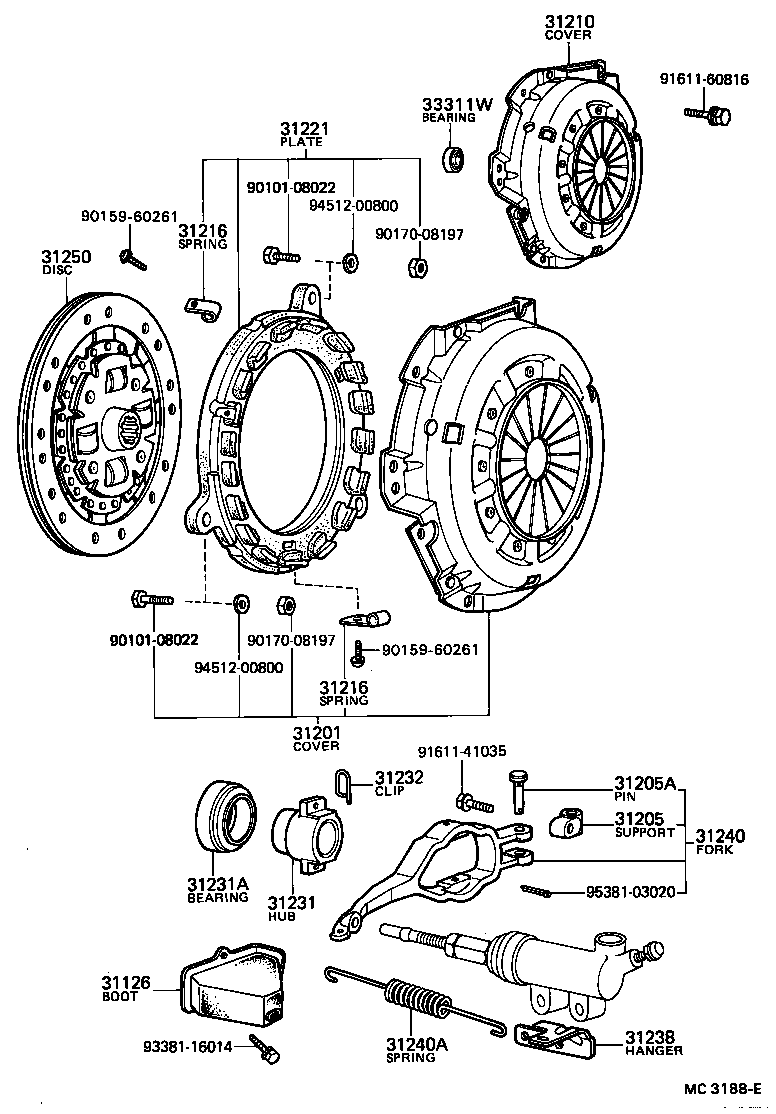

Click highlighted areas on diagram

diagram 31126 31201 31205 31205A 31210 31216 31216 31221 31231 31231A 31232 31238 31240 31240A 31250 33311W 9010108022 9010108022 9015960261 9015960261 9017008197 9017008197 9161141035 9161160816 9338116014 9451200800 9451200800 9538103020
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-26010

RN30,33,35,4#

 1
31205 - SUPPORT SUB-ASSY, RELEASE FORK
31205-30010

RN30,33,35,4#

 1
31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT)
90245-10072

RN30,33,35,4#

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN30,33,36,39,4#

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN30,33,36,39,4#

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39045

RN30,33,35,4#

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40019

LN30,40,RN3#,43

 1
90363-40003

LN30,40,RN3#,4#

 1
90363-40010

LN30,40,RN3#,43

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

LN30,40,RN3#,4#

 2
31238 - HANGER, RELEASE FORK RETRACTING SPRING
31238-26010

RN30,33,35,39,4#

 1
31240 - FORK ASSY, CLUTCH RELEASE
31240-35011

RN30,33,4#

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16282

RN30,33,35,4#

 1
33311W - BEARING (FOR INPUT SHAFT)
97143-06201

LN30,40,RN3#,4#

 1
Common parts
90101-08022
90159-60261
90170-08197
91611-41035
91611-60816
93381-16014
94512-00800
95381-03020

(7912- )LN3#,4#

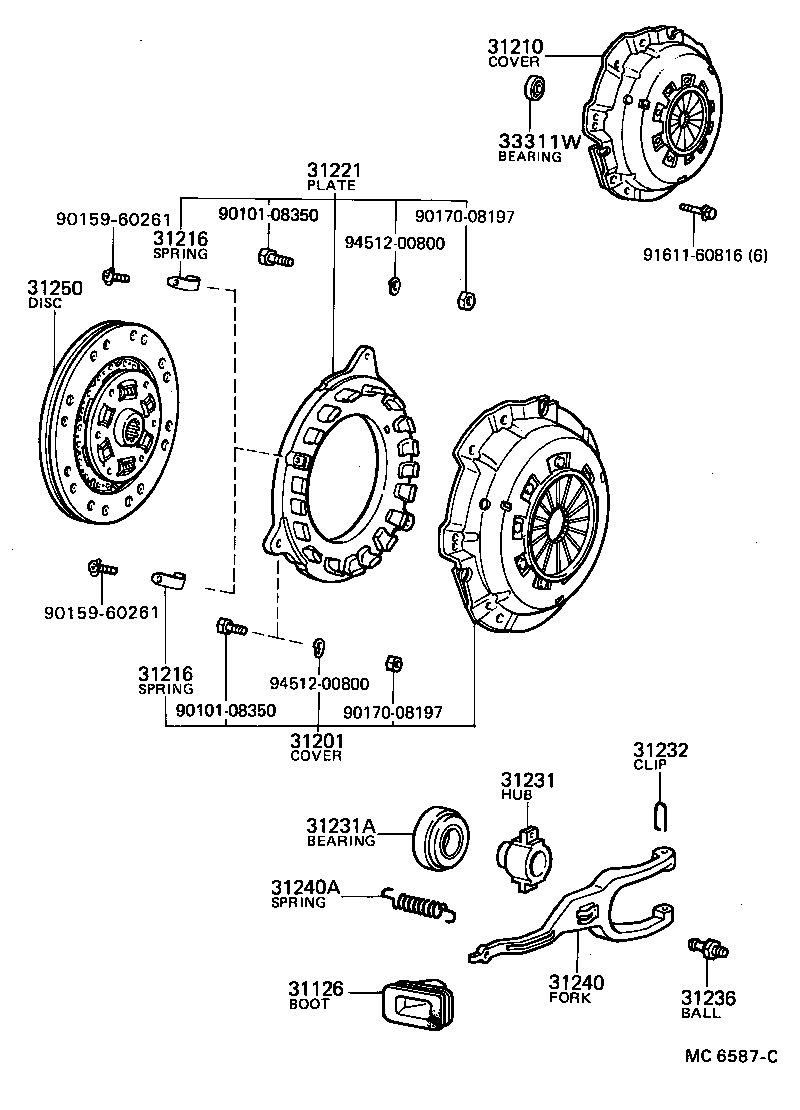

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31240A 31250 33311W 9010108350 9010108350 9015960261 9015960261 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-26010

RN30,33,35,4#

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN30,33,36,39,4#

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN30,33,36,39,4#

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39045

RN30,33,35,4#

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40019

LN30,40,RN3#,43

 1
90363-40003

LN30,40,RN3#,4#

 1
90363-40010

LN30,40,RN3#,43

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

LN30,40,RN3#,4#

 2
31240 - FORK ASSY, CLUTCH RELEASE
31240-35011

RN30,33,4#

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16282

RN30,33,35,4#

 1
33311W - BEARING (FOR INPUT SHAFT)
97143-06201

LN30,40,RN3#,4#

 1
Common parts
90101-08350
90159-60261
90170-08197
91611-60816
94512-00800
