RN30-KDSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

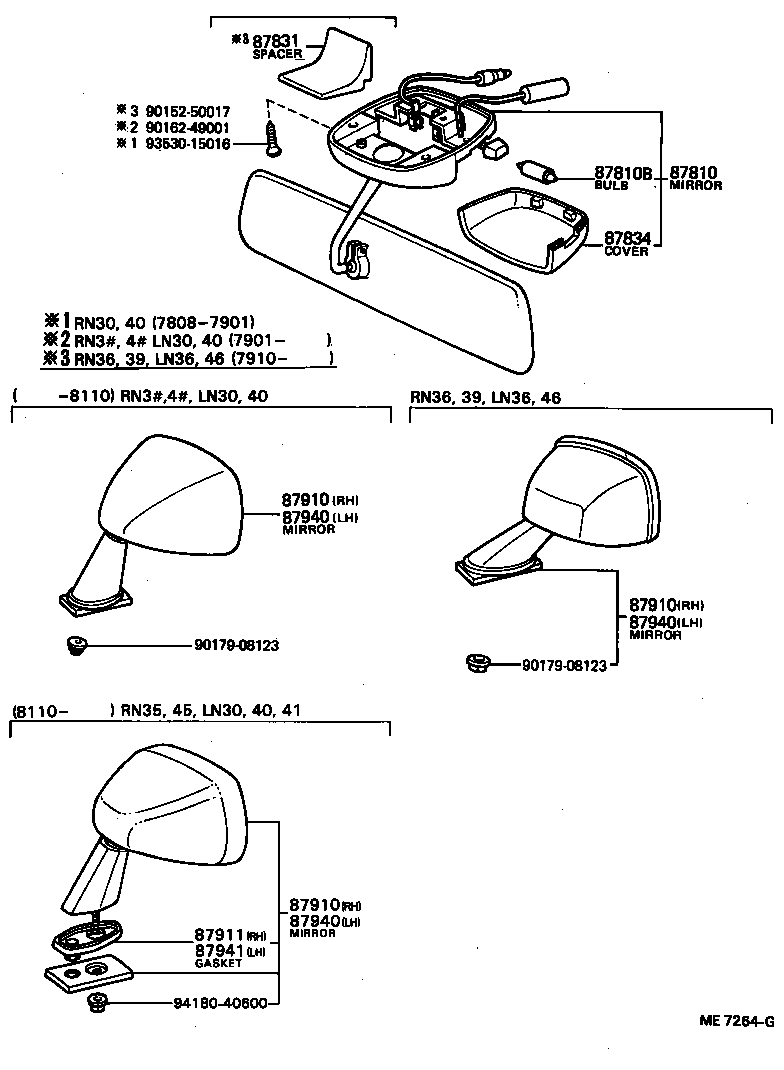

Click highlighted areas on diagram

diagram 87810 87810B 87831 87834 87910 87910 87910 87911 87940 87940 87940 87941 9015250017 9016249001 9017908123 9017908123 9353015016 9418040600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-8910404

RN3#,4#

BLUE,BLUE,TRIM8#

 1
87810-8910403

RN3#,4#

GRAY,GRAY,TRIM2#

 1
87810-8910405

RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-13050

LN3#,4#,RN3#,4#..T1

12V 5W,12V 5W

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87814-12020

LN30,40,RN3#,4#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-89108

LN30,40,RN30,33,4#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-89108

LN30,40,RN30,33,4#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-89108

LN30,40,RN30,33,4#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-89111

LN30,40,RN30,33,4#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-89111

LN30,40,RN30,33,4#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-89111

LN30,40,RN30,33,4#

 1
Common parts
90152-50017
90162-49001
90179-08123
93530-15016
94180-40600
