RN30-KDSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7808- )LN30,40,41,RN30,33,35,4#

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010110096 9010110113 9017010021 9017010021 9020110012 9020110012 9161160820 9412041000 9451201000 9451201000 9451202000 9538103022
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-14040

LN30,40,RN30,33,4#

 1
45240A - BEARING(FOR STEERING WORM)
90369-43001

LN30,40,RN30,33,4#

 2
45240A - BEARING(FOR STEERING WORM)
90369-43001

LN30,40,RN30,33,4#

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-19001

LN30,40,41,RN30,33,35,4#

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-30050

LN30,40,RN30,33,4#

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-30060

LN30,40,RN30,33,35,4#

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-35090

LN30,40,RN30,33,4#

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-28027

LN30,40,41,RN30,33,35,4#

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-35080

LN30,40,41,RN30,33,35,4#

 1
45331 - COVER, SECTOR SHAFT END
45304-35050

LN30,40,RN30,33,35,4#

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-22020

LN30,40,41,RN30,33,35,4#

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

LN30,40,41,RN30,33,35,4#

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-14030

LN30,40,RN30,33,35,4#

厚さ=2.08,T=2.08

 1
45352-14040

LN30,40,RN30,33,35,4#

厚さ=2.12,T=2.12

 1
45352-14010

LN30,40,RN30,33,35,4#

厚さ=2.00,T=2.00

 1
45352-14020

LN30,40,RN30,33,35,4#

厚さ=2.04,T=2.04

 1
45352-14060

LN30,40,RN30,33,35,4#

厚さ=2.20,T=2.20

 1
45352-14050

LN30,40,RN30,33,35,4#

厚さ=2.16,T=2.16

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-30040

LN30,40,41,RN30,33,35,4#

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

LN30,40,41,RN30,33,35,4#

 1
45401 - ARM SUB-ASSY, PITMAN
45411-35130

LN30,40,41,RN30,33,35,4#

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042

LN30,40,41,RN30,33,35,4#

 1
Common parts
90101-10096
90101-10113
90170-10021
90201-10012
91611-60820
94120-41000
94512-01000
94512-02000
95381-03022

ILLUST NO. 2 OF 2(7808- )LN30,40,41,RN30,33,35,4#

Click highlighted areas on diagram

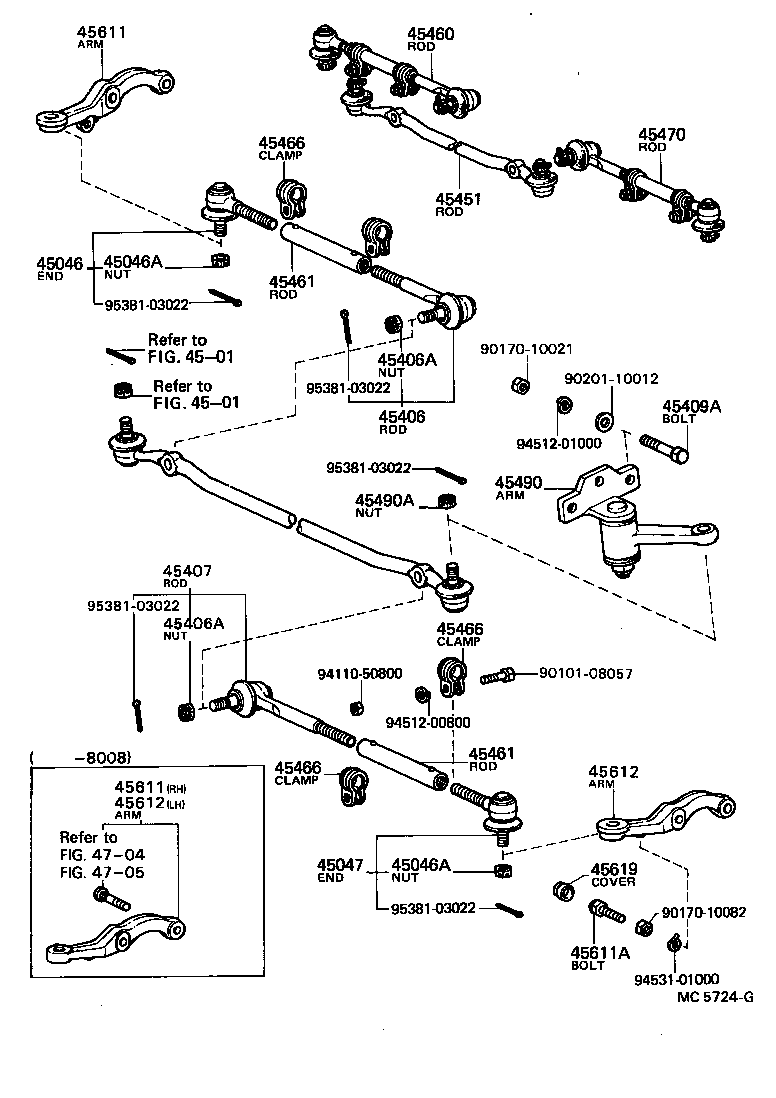

diagram 4501 4501 45046 45046A 45046A 45047 45406 45406A 45406A 45407 45409A 45451 45460 45461 45461 45466 45466 45466 45470 45490 45490A 45611 45611 45611A 45612 45612 45619 4704 4705 9010108057 9017010021 9017010082 9020110012 9411050800 9451200800 9451201000 9453101000 9538103022 9538103022 9538103022 9538103022 9538103022
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-39105

LN30,40,RN3#,4#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN3#,4#,RN3#,4#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN3#,4#,RN3#,4#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39105

LN30,40,RN30,33,4#

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-39085

LN30,40,RN30,33,4#

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN30,40,41,RN30,33,35,4#

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN30,40,41,RN30,33,35,4#

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-39085

LN30,40,RN30,33,4#

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
90101-10053

LN30,40,RN30,33,35,4#

 3
45451 - ROD, STEERING RELAY
45450-39015

LN30,40,RN30,33,4#

 1
45460 - ROD ASSY, TIE, RH
45460-39095

LN30,40,RN30,33,4#

 1
45461 - ROD, STEERING TIE
45465-35020

LN30,40,41,RN30,33,35,4#

 2
45461 - ROD, STEERING TIE
45465-35020

LN30,40,41,RN30,33,35,4#

 2
45466 - CLAMP, TIE ROD END
45466-30020

LN3#,4#,RN3#,4#

 4
45466 - CLAMP, TIE ROD END
45466-30020

LN3#,4#,RN3#,4#

 4
45466 - CLAMP, TIE ROD END
45466-30020

LN3#,4#,RN3#,4#

 4
45470 - ROD ASSY, TIE, LH
45460-39095

LN30,40,RN30,33,4#

 1
45490 - ARM ASSY, STEERING IDLER
45490-35080

LN30,40,RN30,33,4#

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

LN30,40,41,RN30,33,35,4#

 1
45611 - ARM, STEERING KNUCKLE, RH
45601-35060

LN30,40,RN30,33,4#

 1
45611 - ARM, STEERING KNUCKLE, RH
45601-35060

LN30,40,RN30,33,4#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

LN30,40,41,RN30,33,35,4#

 2
45612 - ARM, STEERING KNUCKLE, LH
45606-35040

LN30,40,RN30,33,4#

 1
45612 - ARM, STEERING KNUCKLE, LH
45606-35040

LN30,40,RN30,33,4#

 1
Common parts
90101-08057
90170-10021
90170-10082
90201-10012
94110-50800
94512-00800
94512-01000
94531-01000
95381-03022
