RN30-KDSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8002)12RJ

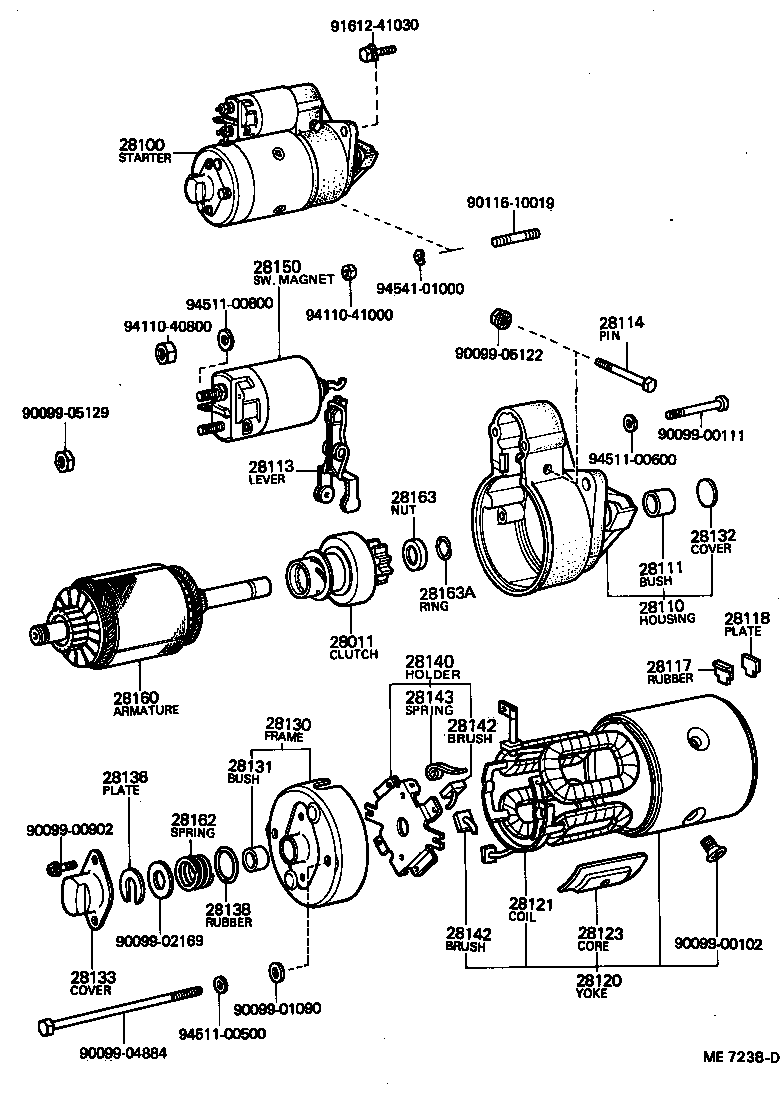

Click highlighted areas on diagram

12V 0.8KW

diagram 28011 28100 28110 28111 28113 28114 28117 28118 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 9009900102 9009900111 9009900902 9009901090 9009902169 9009904884 9009905122 9009905129 9011610019 9161241030 9411040800 9411041000 9451100500 9451100600 9451100800 9454101000
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41011

12RJ..RN30,33,4#

12V 0.8KW

 1
28100 - STARTER ASSY
28100-40015

12RJ..RN30,33,4#

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40030

12RJ..RN30,33,4#

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

12RJ..RN30,33,4#

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41013

12RJ..RN30,33,4#

12V 0.8KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-41013

12RJ..RN30,33,4#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-36040

12RJ..RN30,33,4#

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-36040

12RJ..RN30,33,4#

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-40012

12RJ..RN30,33,4#

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

12RJ..RN30,33,4#

12V 0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10040

12RJ..RN30,33,4#

12V 0.8KW U/S 0.5

 1
90099-10039

12RJ..RN30,33,4#

12V 0.8KW,U/S 0.3

 1
28131-20010

12RJ..RN30,33,4#

12V 0.8KW,STD

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

12RJ..RN30,33,4#

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

12RJ..RN30,33,4#

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

12RJ..RN30,33,4#

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41012

12RJ..RN30,33,4#

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-21010

12RJ..RN30,33,4#

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-21010

12RJ..RN30,33,4#

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-40010

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-33020

12RJ..RN30,40

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-40014

12RJ..RN30,33,4#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

12RJ..RN30,33,4#

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
Common parts
90099-00102
90099-00111
90099-00902
90099-01090
90099-02169
90099-04884
90099-05122
90099-05129
90116-10019
91612-41030
94110-40800
94110-41000
94511-00500
94511-00600
94511-00800
94541-01000
