RN30-JRSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

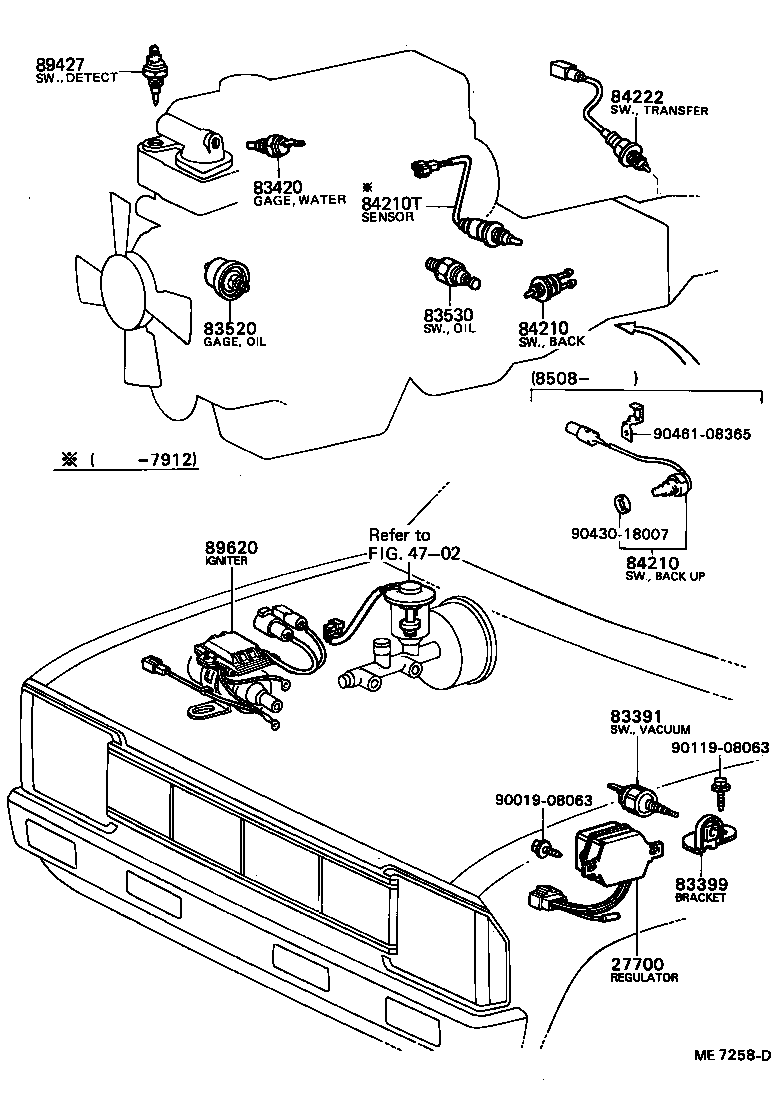

ILLUST NO. 1 OF 3(7808- )RN3#,4#

Click highlighted areas on diagram

diagram 27700 4702 83391 83399 83420 83520 83530 84210 84210 84210T 84222 89427 89620 9001908063 9011908063 9043018007 9046108365
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-13010

L,12RJ,18RJ..LN30,40,RN3#,4#

12V

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RN3#,40

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-36011

LN3#,4#,RN3#,4#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-26010

RN3#,4#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-26010

RN3#,4#

 1
84210T - SENSOR ASSY, SHIFT POINT
84220-35040

RN30,40..4H

 1
89427 - SWITCH, TEMPERATURE DETECT
89428-12030

RN30,40

 1
Common parts
90019-08063
90119-08063
90430-18007
90461-08365
Linked diagrams
4702

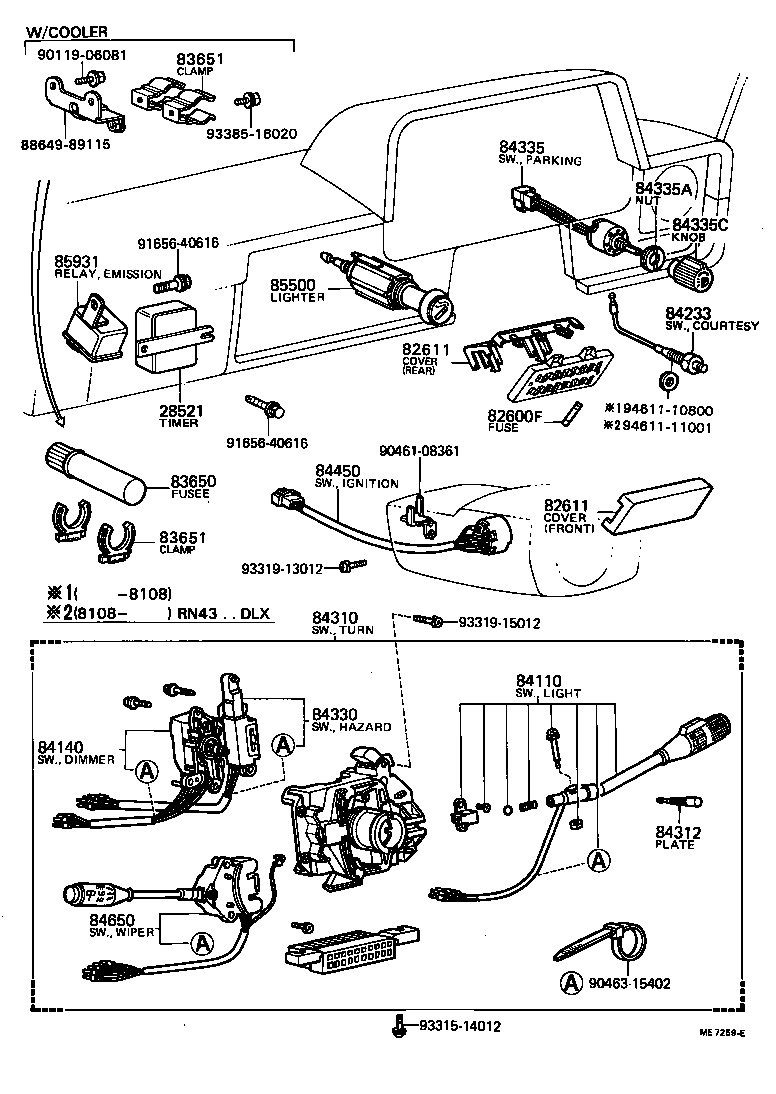

ILLUST NO. 2 OF 3(7808-8110)

Click highlighted areas on diagram

diagram 28521 82600F 82611 82611 83650 83651 83651 84110 84140 84233 84310 84312 84330 84335 84335A 84335C 84450 84650 85500 85931 8864989115 9011906081 9046108361 9046315402 9165640616 9165640616 9331514012 9331913012 9331915012 9338516020 9461110800 9461111001
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
99118-62005

LN30,40,RN3#,4#

5A

 2
99118-62915

LN30,40,RN3#,4#

15A,15A

 6
99118-62910

LN30,40,RN3#,4#

10A

 7
82611 - COVER, FUSE BLOCK
82611-89105

LN30,40,RN3#,4#

REAR

 1
82611-89106

LN30,40,RN3#,4#

FRONT

 1
82611 - COVER, FUSE BLOCK
82611-89105

LN30,40,RN3#,4#

REAR

 1
82611-89106

LN30,40,RN3#,4#

FRONT

 1
83650 - FUSEE
90986-01003

LN3#,4#,RN3#,4#

 1
83651 - CLAMP, FUSEE
90044-65032

LN3#,4#,RN3#,4#

W/COOLER

 2
90468-23001

LN3#,4#,RN3#,4#

 2
83651 - CLAMP, FUSEE
90044-65032

LN3#,4#,RN3#,4#

W/COOLER

 2
90468-23001

LN3#,4#,RN3#,4#

 2
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19075

LN30,40,RN3#,4#

12V

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19015

LN30,40,RN3#,4#

12V

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-20040

LN30,40,RN3#,4#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10210

RN30,33,4#..STD

 1
84312 - PLATE, HORN CONTACT
84312-20011

LN3#,4#,RN3#,4#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19015

LN30,40,RN3#,4#

12V

 1
84335 - SWITCH ASSY, PARKING LAMP
84332-89108

LN3#,4#,RN3#,4#

 1
84335A - BOLT OR NUT, PARKING LAMP SWITCH SET
90170-11003

LN3#,4#,RN3#,4#

 1
84335C - KNOB, PARKING LAMP SWITCH
84331-89106

LN30,40,RN3#,4#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-14021

LN3#,4#,RN3#,4#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-19135

RN30,33,4#..STD

 1
85931 - RELAY, EMISSION CONTROL
85925-12010

RN30,40

 1
Common parts
88649-89115
90119-06081
90461-08361
90463-15402
91656-40616
93315-14012
93319-13012
93319-15012
93385-16020
94611-10800
94611-11001

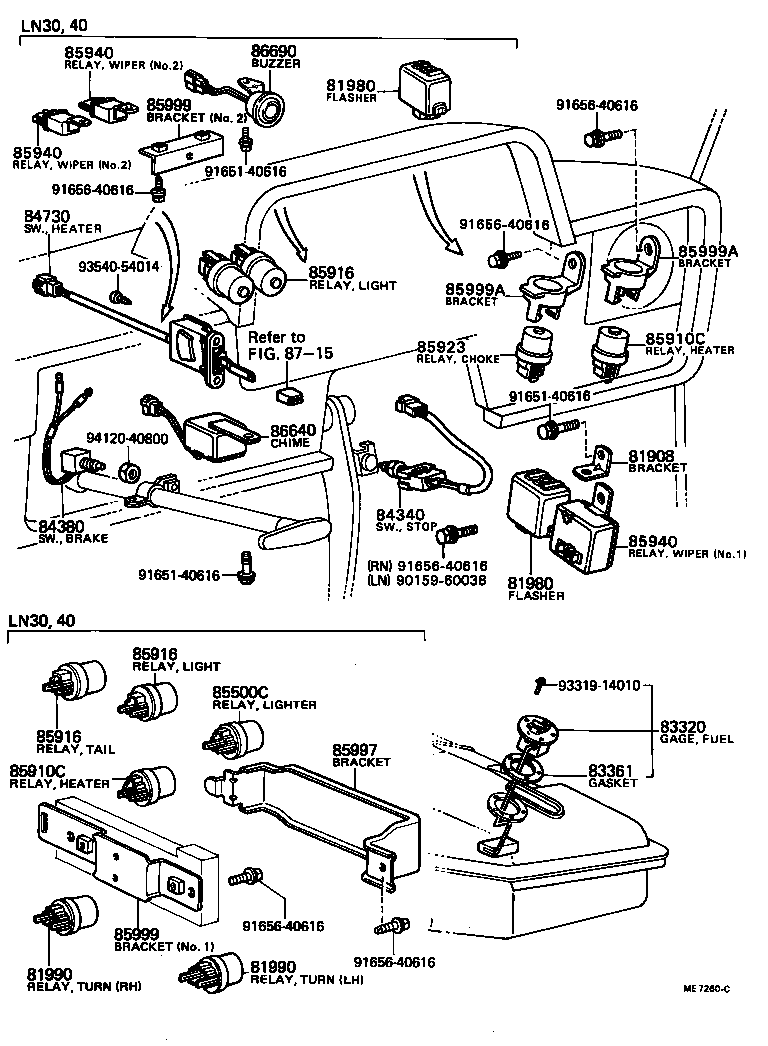

ILLUST NO. 3 OF 3(7808-8110)

Click highlighted areas on diagram

diagram 81908 81980 81980 81990 81990 83320 83361 84340 84380 84730 85500C 85910C 85910C 85916 85916 85916 85923 85940 85940 85940 85997 85999 85999 85999A 85999A 86640 86690 8715 9015960038 9165140616 9165140616 9165140616 9165640616 9165640616 9165640616 9165640616 9165640616 9165640616 9331914010 9354054014 9412040800
Part # Description Qty Price
81908 - BRACKET SUB-ASSY, FLASHER
85999-89101

LN3#,4#,RN3#,4#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22060

LN30,40,RN3#,4#

12V

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22060

LN30,40,RN3#,4#

12V

 1
83320 - GAGE ASSY, FUEL SENDER
83320-39175

LN30,RN3#

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LN3#,4#,RN3#,4#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22071

LN3#,4#,RN3#,4#

TOKAIRIKA

 1
84340-22060

LN30,40,RN3#,4#

MATSUSHITA

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-35010

LN3#,4#,RN3#,4#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-89104

LN30,40,RN3#,4#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02001

LN30,40,RN3#,4#

12V

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02001

LN30,40,RN3#,4#

12V

 1
85916 - RELAY, LIGHT CONTROL
90987-01001

LN30,40,RN3#,4#

12V

 2
85916 - RELAY, LIGHT CONTROL
90987-01001

LN30,40,RN3#,4#

12V

 2
85916 - RELAY, LIGHT CONTROL
90987-01001

LN30,40,RN3#,4#

12V

 2
85999A - BRACKET, RELAY, NO.2
85999-26010

LN30,40,RN3#,4#

12V,HEATER RELAY

 1
85999A - BRACKET, RELAY, NO.2
85999-26010

LN30,40,RN3#,4#

12V,HEATER RELAY

 1
86640 - CHIME ASSY
86640-10012

RN3#,4#

 1
Common parts
90159-60038
91651-40616
91656-40616
93319-14010
93540-54014
94120-40800
Linked diagrams
8715
