RN30-JRSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

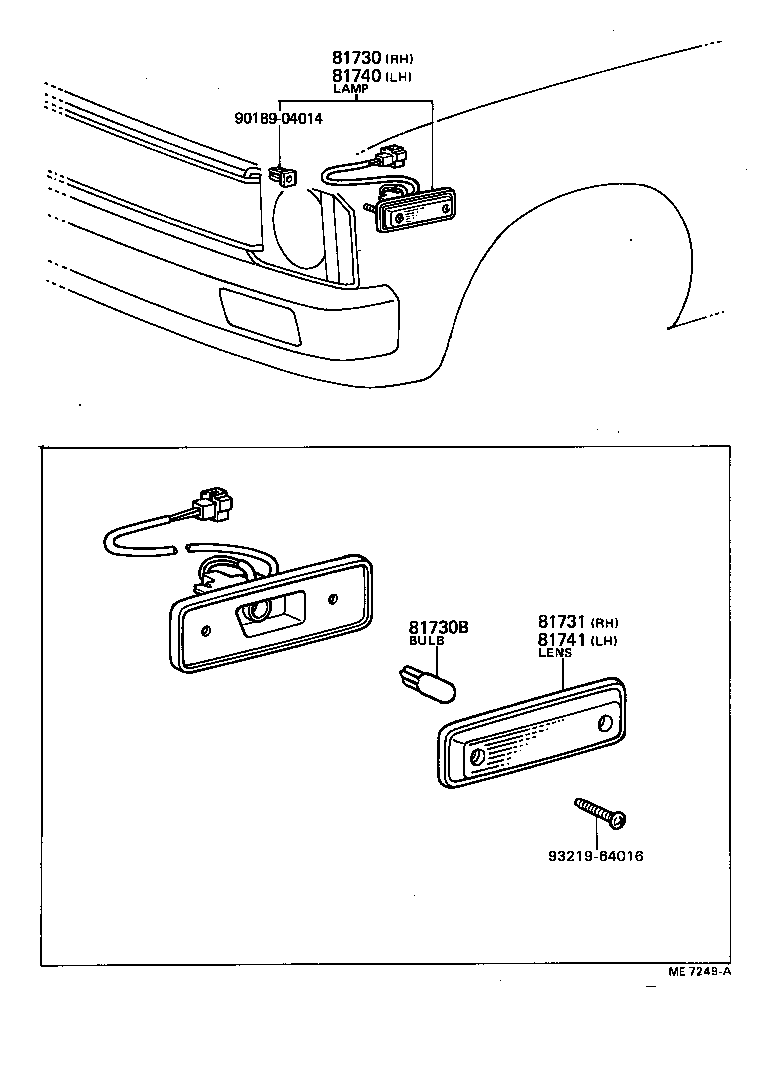

Click highlighted areas on diagram

diagram 81730 81730B 81731 81740 81741 9018904014 9321964016
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-39105

LN3#,4#,RN3#,4#

12V

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

LN3#,4#,RN3#,4#

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14090

LN3#,4#,RN3#,4#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-39105

LN3#,4#,RN3#,4#

12V

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14090

LN3#,4#,RN3#,4#

 1
Common parts
90189-04014
93219-64016
