RN30-JRSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN30,33,35,4#

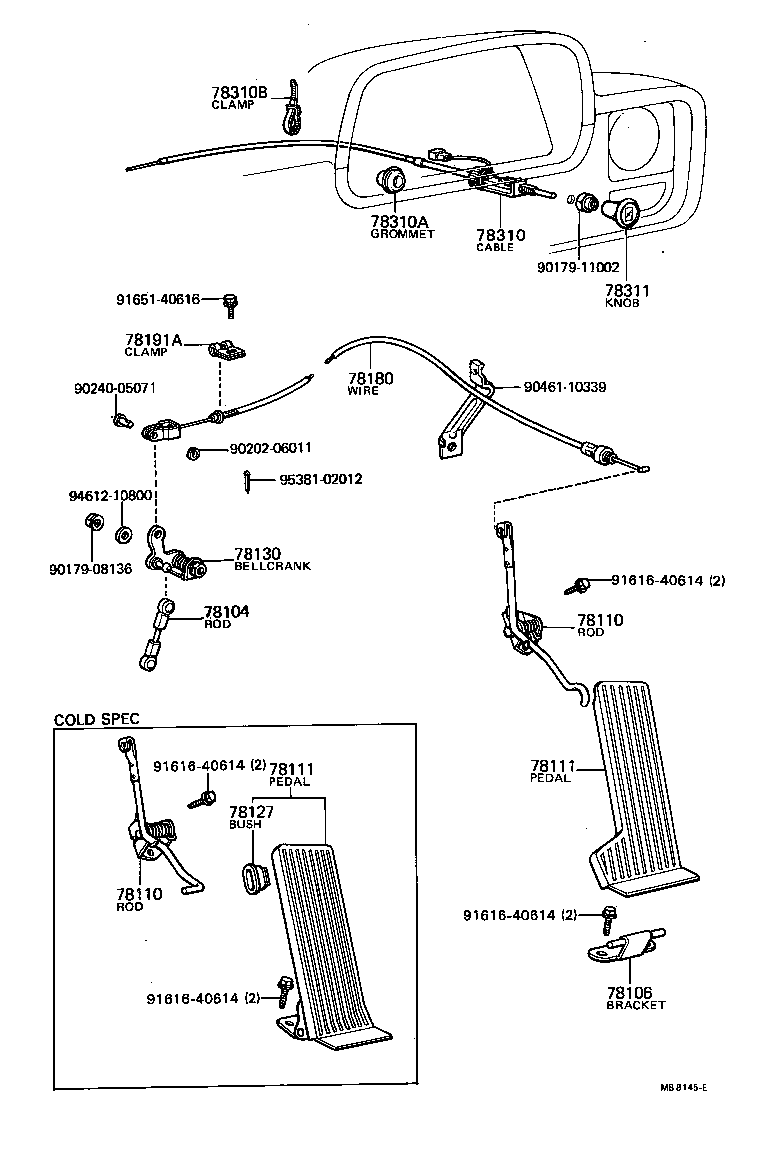

Click highlighted areas on diagram

diagram 78104 78106 78110 78110 78111 78111 78127 78130 78180 78191A 78310 78310A 78310B 78311 9017908136 9017911002 9020206011 9024005071 9046110339 9161640614 9161640614 9161640614 9161640614 9165140616 9461210800 9538102012
Part # Description Qty Price
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-89104

RN30,33,35,4#

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-89101

LN30,40,41,RN30,33,35,4#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89104

RN30,33,35,4#

COLD SPEC

 1
78120-89101

RN30,33,35,4#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89104

RN30,33,35,4#

COLD SPEC

 1
78120-89101

RN30,33,35,4#

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78010-89103

LN30,40,RN30,33,35,4#

COLD SPEC

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78010-89103

LN30,40,RN30,33,35,4#

COLD SPEC

 1
78127 - BUSH, ACCELERATOR PEDAL, NO.2
78127-20010

LN3#,4#,RN3#,4#

COLD SPEC

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-89108

RN30,33,35,4#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89117

RN30,33,35,4#

 1
78180-89120

RN30,33,35,4#

COLD SPEC

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-08148

RN30,33,35,4#

 1
78310 - CABLE ASSY, CHOKE
78310-89108

RN30,33,4#

 1
78310A - GROMMET, CHOKE CABLE
90480-15001

RN30,33,35,4#

 1
78310B - CLAMP, CHOKE CABLE
90463-12002

RN30,33,35,4#

 1
78311 - KNOB, CHOKE CONTROL CABLE
78311-89101

RN30,33,4#

 1
Common parts
90179-08136
90179-11002
90202-06011
90240-05071
90461-10339
91616-40614
91651-40616
94612-10800
95381-02012
