RN30-JRSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

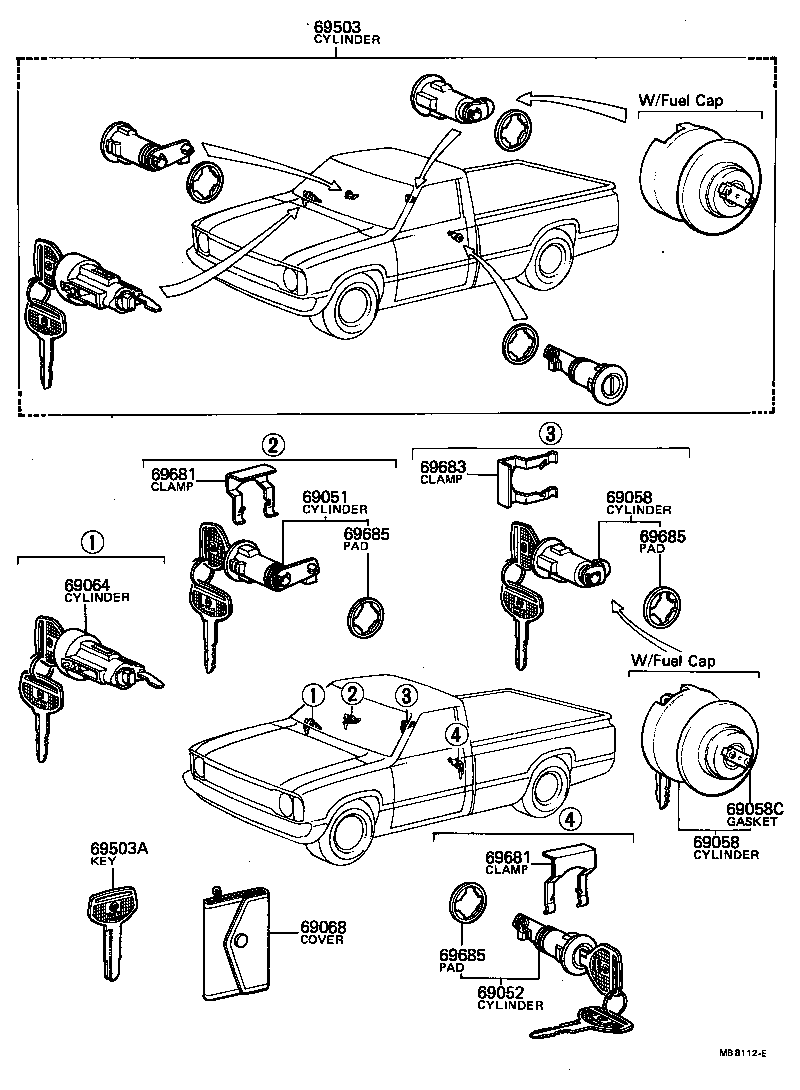

Click highlighted areas on diagram

diagram 69051 69052 69058 69058 69058C 69064 69068 69503 69503A 69681 69681 69683 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-89106

LN30,40,RN3#,4#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-89106

LN30,40,RN3#,4#

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-89101

LN3#,4#,RN3#,4#..CBU

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-89101

LN3#,4#,RN3#,4#..CBU

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-89101

RN30,33,35,40,43..STD

W/O STEERING LOCK

 1
69057-12011

LN3#,4#,RN3#,4#

W/STEERING LOCK

 1
69068 - COVER SUB-ASSY, KEY
84041-89102

LN3#,4#,RN3#,4#

 1
69503 - CYLINDER SET, LOCK
69005-89106

LN30,40,RN3#,4#..CBU

W/STEERING LOCK

 1
69005-89105

RN30,33,4#..STD..CBU

W/O STEERING LOCK

 1
69503A - KEY, BLANK
90999-00066

LN3#,4#,RN3#,4#

ﾏｽﾀｰｷｰ

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN30,40

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN30,40

 2
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20010

RN30,40

 1
69685 - PAD, LOCK CYLINDER
69685-12010

LN3#,4#,RN3#,4#

DOOR LOCK

 2
69685-95400

LN3#,4#,RN3#,4#..CBU

FUEL LOCK

 1
69685 - PAD, LOCK CYLINDER
69685-12010

LN3#,4#,RN3#,4#

DOOR LOCK

 2
69685-95400

LN3#,4#,RN3#,4#..CBU

FUEL LOCK

 1
69685 - PAD, LOCK CYLINDER
69685-12010

LN3#,4#,RN3#,4#

DOOR LOCK

 2
69685-95400

LN3#,4#,RN3#,4#..CBU

FUEL LOCK

 1
