RN30-JRSJ (1978)
Toyota Hilux
(7808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62529A - GRILLE, SPEAKER | ||||
| 62529-8910101 |
LN3#,4#,RN3#,4# BLACK,BLACK,TRIM2# |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-89121 |
LN30,40,41,RN30,33,35,4#..DLX,STD |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-89123 |
LN30,40,41,RN30,33,35,4#..DLX,STD |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-89106 |
LN3#,4#,RN3#,4# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-89108 |
LN3#,4#,RN3#,4# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-89106 |
LN3#,4#,RN3#,4# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-89106 |
LN3#,4#,RN3#,4# |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67433-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67434-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-89105 |
LN3#,4#,RN3#,4# |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67481-89105 |
LN3#,4#,RN3#,4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8911504 |
RN30,33,4#..STD BLUE,BLUE,TRIM8# |
1 | ||
| 67610-8911501 |
RN30,33,4#..STD BLACK,BLACK,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8911504 |
RN30,33,4#..STD BLUE,BLUE,TRIM8# |
1 | ||
| 67610-8911501 |
RN30,33,4#..STD BLACK,BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-89101 |
LN3#,4#,RN3#,4#..DLX,STD |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-89101 |
LN3#,4#,RN3#,4#..DLX,STD |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8911401 |
RN30,33,4#..STD BLACK,BLACK,TRIM2# |
1 | ||
| 67620-8911404 |
RN30,33,4#..STD BLUE,BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8911401 |
RN30,33,4#..STD BLACK,BLACK,TRIM2# |
1 | ||
| 67620-8911404 |
RN30,33,4#..STD BLUE,BLUE,TRIM8# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-2003004 |
RN30,33,4#..STD BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2003001 |
RN30,33,4#..STD BLACK,BLACK,TRIM2# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-2003004 |
RN30,33,4#..STD BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2003001 |
RN30,33,4#..STD BLACK,BLACK,TRIM2# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-89103 |
LN3#,4#,RN3#,4# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-89103 |
LN3#,4#,RN3#,4# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-89104 |
LN3#,4#,RN3#,4# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-89103 |
LN3#,4#,RN3#,4# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-89107 |
RN30,33,35,40,43..STD *TEM,厚さ=4.0,*TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-89106 |
RN30,33,35,40,43..STD *TEM,厚さ=4.0,*TEM,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-89105 |
LN3#,4#,RN3#,4# |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-89104 |
LN3#,4#,RN3#,4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-89104 |
RN30,33,35,40,43..STD RH |
1 | ||
| 68170-89105 |
RN30,33,35,40,43..STD LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-89104 |
RN30,33,35,40,43..STD RH |
1 | ||
| 68170-89105 |
RN30,33,35,40,43..STD LH |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-89101 |
LN3#,4#,RN3#,4# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
LN3#,4#,RN3#,4# |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 68211-89103 | ||||
| 90467-11002 | ||||
| 91656-40616 | ||||
| 91661-40614 | ||||
| 93520-14010 | ||||

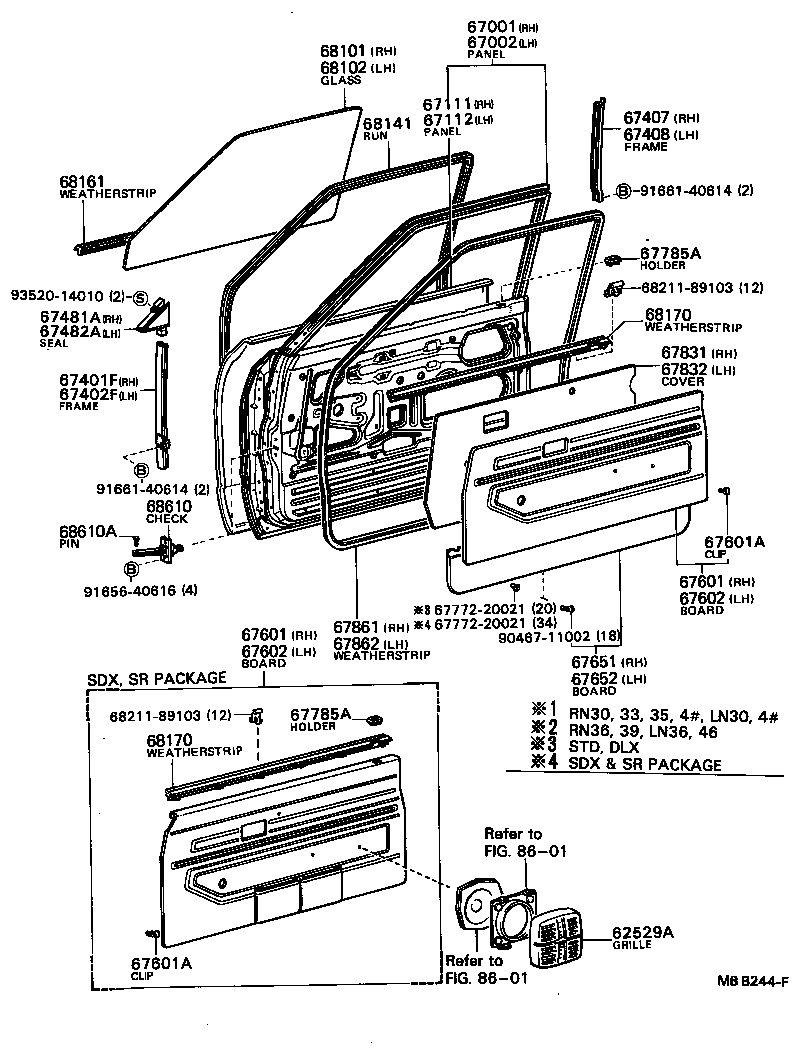

| Linked diagrams | ||||
| 8601 | ||||
