RN30-JRSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )T1

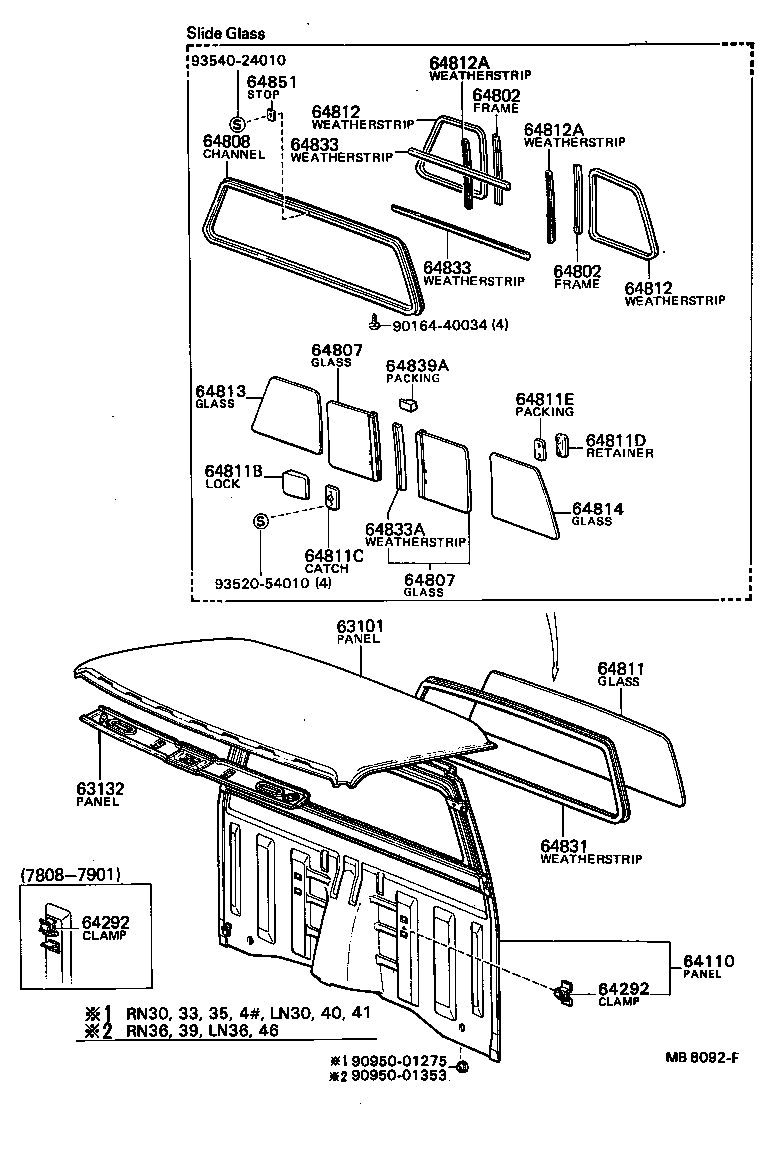

Click highlighted areas on diagram

diagram 63101 63132 64110 64292 64292 64802 64802 64807 64807 64808 64811 64811B 64811C 64811D 64811E 64812 64812 64812A 64812A 64813 64814 64831 64833 64833 64833A 64839A 64851 9016440034 9095001275 9095001353 9352054010 9354024010
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-89104

LN30,40,41,RN30,33,35,4#..T1..(DLX,STD)

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-89101

LN3#,4#,RN3#,4#

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-89110

RN30,40

 1
64292 - CLAMP, JACK HANDLE
64292-12010

RN30,40

 2
64292 - CLAMP, JACK HANDLE
64292-12010

RN30,40

 2
64811 - GLASS, BACK WINDOW
64811-89107

LN3#,4#,RN3#,4#

*TEM,T=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-89101

LN3#,4#,RN3#,4#

 1
Common parts
90164-40034
90950-01275
90950-01353
93520-54010
93540-24010
