RN30-JRSJ (1978)
Toyota Hilux
Production
Aug 1978
-
Dec 1979
Engine
12RJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )12RJ,18RJ

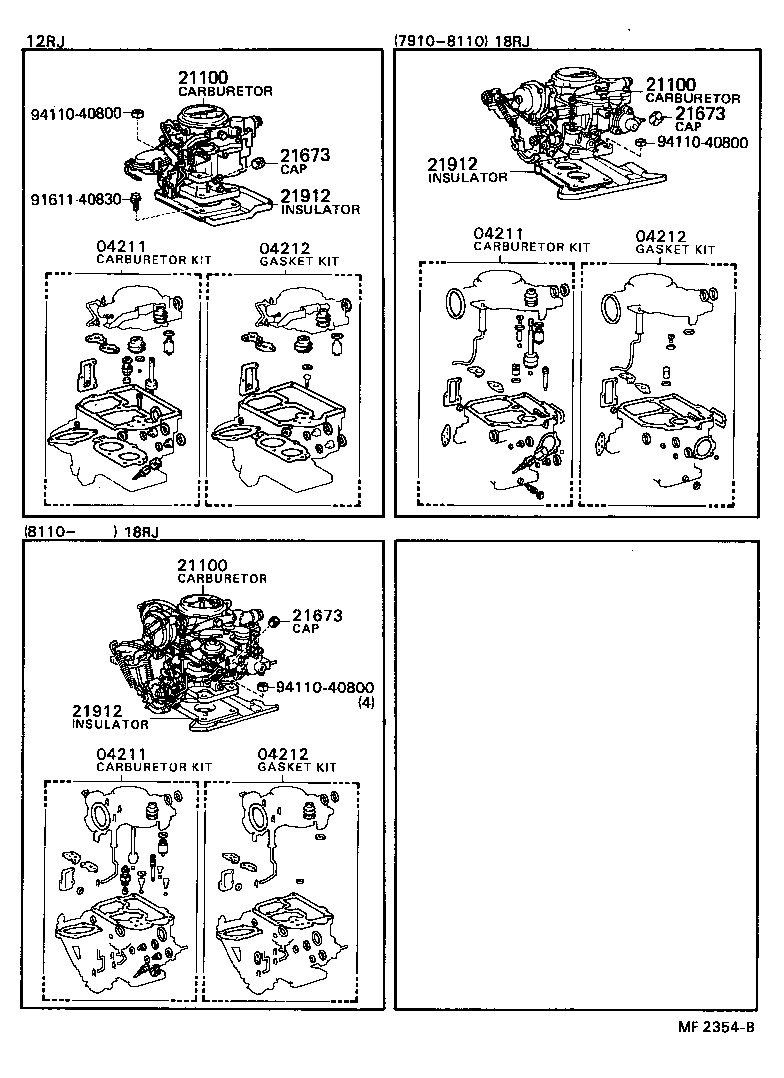

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04211 - CARBURETOR KIT | ||||
| 04211-31280 |
12RJ..RN30,40 |
1 | ||
| 04211 - CARBURETOR KIT | ||||
| 04211-31280 |
12RJ..RN30,40 |
1 | ||
| 04211 - CARBURETOR KIT | ||||
| 04211-31280 |
12RJ..RN30,40 |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-31070 |
12RJ..RN30,40 |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-31070 |
12RJ..RN30,40 |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-31070 |
12RJ..RN30,40 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-31400 |
12RJ..RN30,40 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-31400 |
12RJ..RN30,40 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-31400 |
12RJ..RN30,40 |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-38020 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-38020 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-38020 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-31061 |
12RJ..RN30,33,35,4# |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-31061 |
12RJ..RN30,33,35,4# |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-31061 |
12RJ..RN30,33,35,4# |
1 | ||
| Common parts | ||||
| 91611-40830 | ||||
| 94110-40800 | ||||
