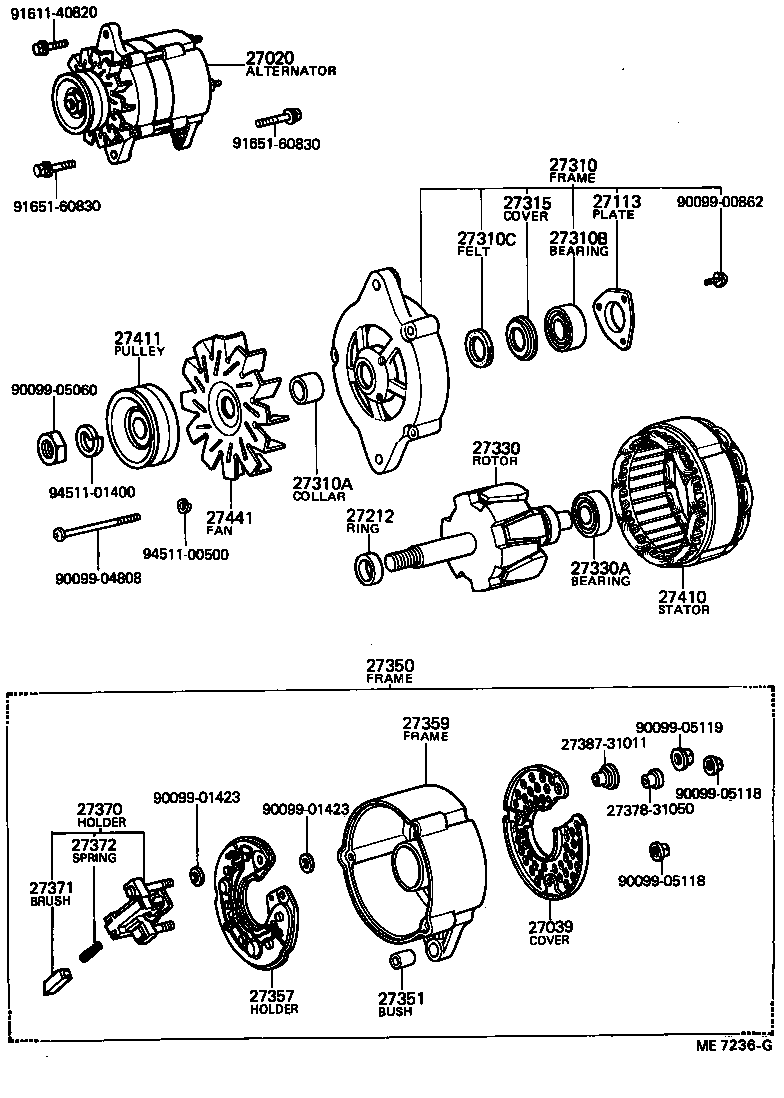

RN30-JRSJ (1978)
Toyota Hilux
(7808- )12RJ
12V 30A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27020-31080 |
12RJ..RN30,33,4# 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11014 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27039-36070 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27113-10012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 90099-19068 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45020 |
12RJ..RN30,33,4# 12V 40A |
1 | ||
| 27310-22012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-56040 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 90099-19075 |
12RJ..RN30,33,4# 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 90099-10109 |
12RJ..RN30,40 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 90099-02009 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27313-31011 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27330-26050 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
12RJ..RN30,40 12V 40A |
1 | ||
| 97110-06201 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27350-36061 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27351-25010 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11014 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27359-36061 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12RJ,18RJ..RN3#,4# 12V 30A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12RJ,18RJ..RN3#,4# 12V 30A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27410-11014 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-44050 |
12RJ..RN30,33,35,4# 12V 40A |
1 | ||
| 27411-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27441-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| Common parts | ||||
| 27378-31050 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-01423 | ||||
| 90099-04808 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 91611-40820 | ||||
| 91651-60830 | ||||
| 94511-00500 | ||||
| 94511-01400 | ||||

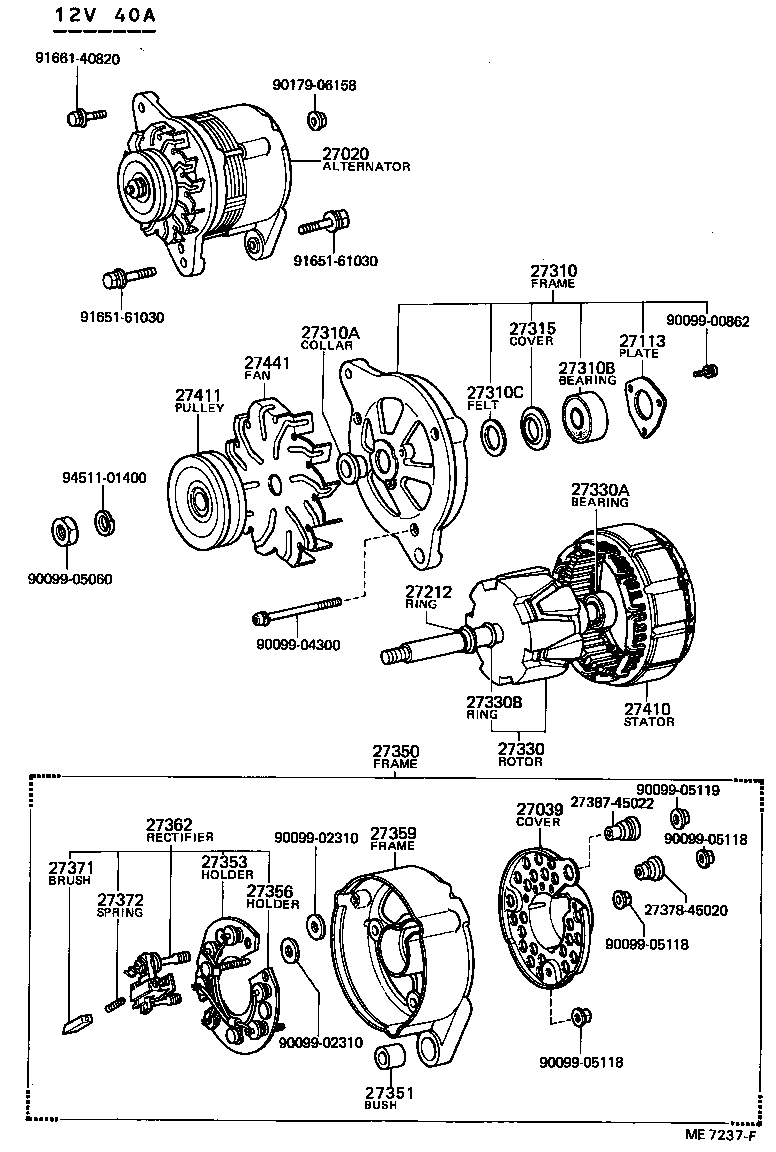

(7808- )12RJ
12V 40A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27020-31080 |
12RJ..RN30,33,4# 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11014 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27039-36070 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27113-10012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 90099-19068 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45020 |
12RJ..RN30,33,4# 12V 40A |
1 | ||
| 27310-22012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-56040 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 90099-19075 |
12RJ..RN30,33,4# 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 90099-10109 |
12RJ..RN30,40 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 90099-02009 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27313-31011 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27330-26050 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
12RJ..RN30,40 12V 40A |
1 | ||
| 97110-06201 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27350-36061 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27351-25010 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-26030 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27359-36061 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-26040 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12RJ,18RJ..RN3#,4# 12V 30A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12RJ,18RJ..RN3#,4# 12V 30A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27410-11014 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-44050 |
12RJ..RN30,33,35,4# 12V 40A |
1 | ||
| 27411-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27441-31090 |
12RJ..RN30,33,35,4# 12V 30A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27387-45022 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90179-06158 | ||||
| 91651-61030 | ||||
| 91661-40820 | ||||
| 94511-01400 | ||||
