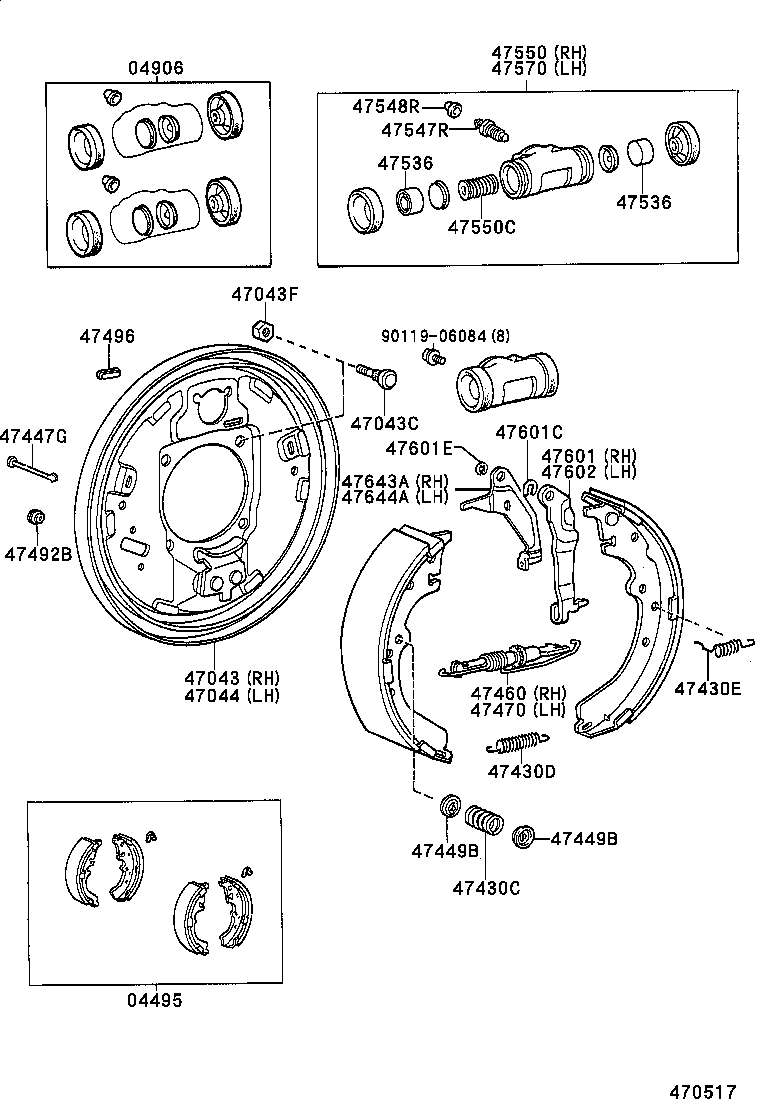

LN86-TRQDS (1994)
Toyota Hilux
(9408- )LN8#,YN8#..T1,T3,TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04497-35070 |
LN8#,YN8# REBUILT |
1 | ||
| 04495-35101 |
LN8#,YN8# |
1 | ||
| 04495-35200 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35080 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 04906-30120 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26120 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10067 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26120 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
KZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18299 |
LN8#,YN8#..T1,T3,TW1 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-12036 |
LN8#,YN8#..T1,T3,TW1 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LN8#,YN8# |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30020 |
LN8#,YN8# |
1 | ||
| 47061-35020 |
LN8#,YN8# |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30020 |
LN8#,YN8# |
1 | ||
| 47062-35020 |
LN8#,YN8# |
1 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
KZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1 |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26070 |
LN8#,YN8#..T1,T3,TW1 |
4 | ||
| 47051-30040 |
LN8#,YN8#..T1,T3,TW1 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26070 |
LN8#,YN8#..T1,T3,TW1 |
4 | ||
| 47051-30040 |
LN8#,YN8#..T1,T3,TW1 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
LN8#,YN8#..T1,T3,TW1 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-26090 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47550-30140 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-20010 |
LN8#,YN8#..T1,T3,TW1 |
2 | ||
| 47509-30010 |
LN8#,YN8#..T1,T3,TW1 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-26090 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47550-30140 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-26050 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 厚さ=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
KZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-26050 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-26010 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-26010 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
