LN86-TBQDS (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )YN107,8#

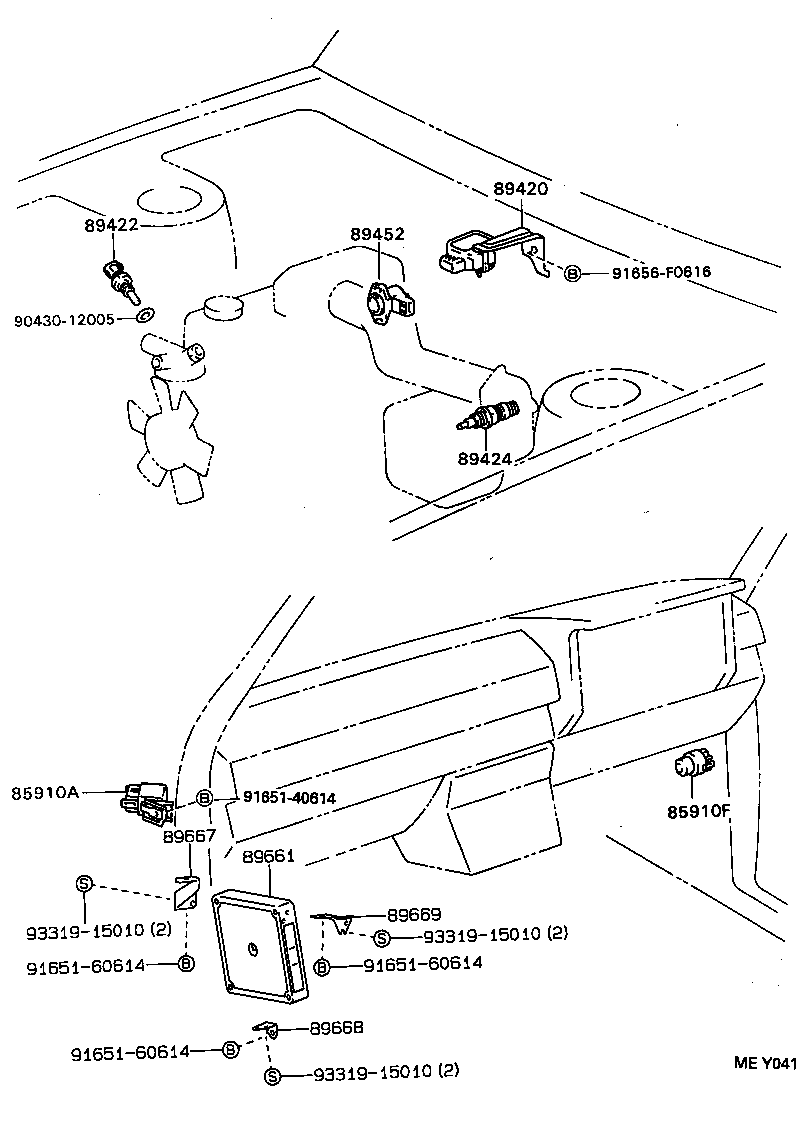

Click highlighted areas on diagram

diagram 85910A 85910F 89420 89422 89424 89452 89661 89667 89668 89669 9043012005 9165140614 9165160614 9165160614 9165160614 91656F0616 9331915010 9331915010 9331915010
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

YN107,8#

ENGINE BLOCK

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-24010

YN107,8#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090

YN107,8#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3D110

YN107,8#

 1
Common parts
90430-12005
91651-40614
91651-60614
91656-F0616
93319-15010
