LN85-TRQSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )

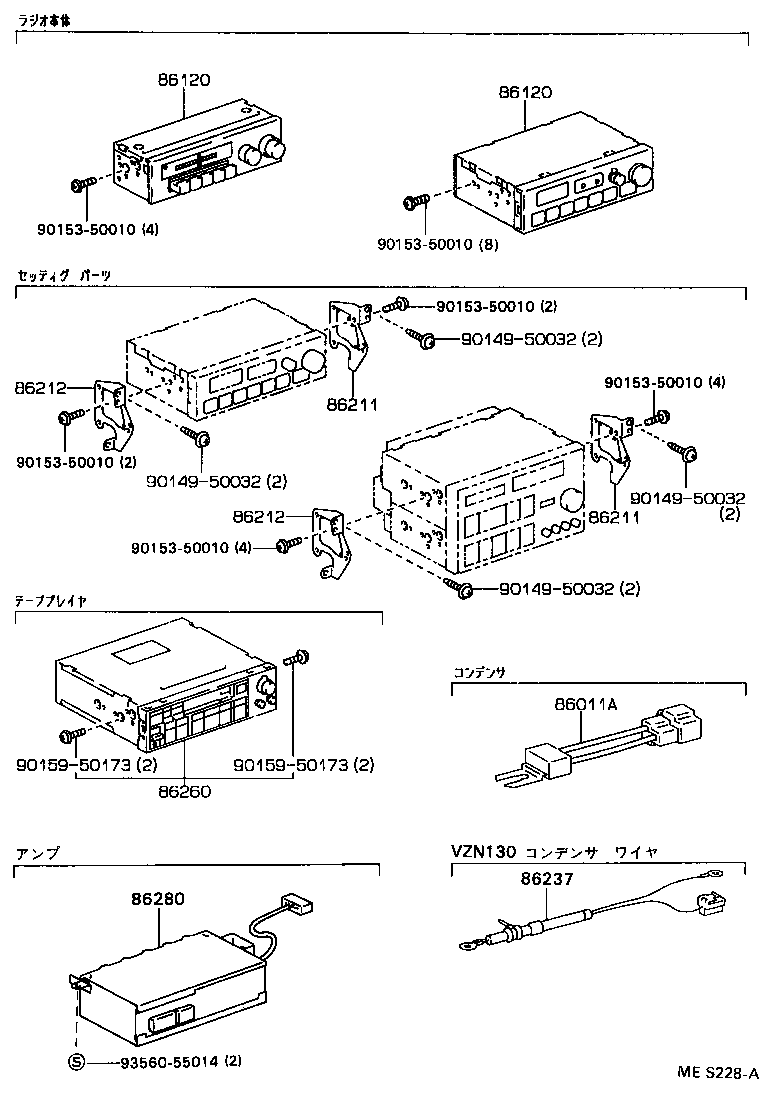

Click highlighted areas on diagram

diagram 86011A 86120 86120 86211 86211 86212 86212 86237 86260 86280 9014950032 9014950032 9014950032 9014950032 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9015950173 9015950173 9356055014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04072

LN10#,8#,YN10#,8#

 1
90980-04040

LN100,106,107,109,8#,YN10#,80,85..CBR,DSL

 1
86120 - RECEIVER ASSY, RADIO
86120-16530

LN10#,13#,8#,YN10#,130,8#

AM 5ﾎﾞﾀﾝ

 1
86120-20650

LN10#,13#,8#,VZN130,YN10#,130,8#

AM/FM MPX ETR ﾗｼﾞｵ

 1
86120-2A160

LN10#,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

AM/FM MPX ETR ﾗｼﾞｵ

 1
86120-35130

KZN130,LN100,106,107,108,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

AM/FM MPX ETR ﾗｼﾞｵ

 1
86120-37010

LN100,106,107,108,131,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

AM 5ﾎﾞﾀﾝ

 1
86120 - RECEIVER ASSY, RADIO
86120-16530

LN10#,13#,8#,YN10#,130,8#

AM 5ﾎﾞﾀﾝ

 1
86120-20650

LN10#,13#,8#,VZN130,YN10#,130,8#

AM/FM MPX ETR ﾗｼﾞｵ

 1
86120-2A160

LN10#,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

AM/FM MPX ETR ﾗｼﾞｵ

 1
86120-35130

KZN130,LN100,106,107,108,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

AM/FM MPX ETR ﾗｼﾞｵ

 1
86120-37010

LN100,106,107,108,131,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

AM 5ﾎﾞﾀﾝ

 1
86211 - BRACKET, RADIO, NO.1
86211-89111

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
86211 - BRACKET, RADIO, NO.1
86211-89111

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
86212 - BRACKET, RADIO, NO.2
86212-89111

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
86212 - BRACKET, RADIO, NO.2
86212-89111

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
86260 - TAPE PLAYER ASSY
86260-19145

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
Common parts
90149-50032
90153-50010
90159-50173
93560-55014
