LN85-TRQSS (1988)
Toyota Hilux

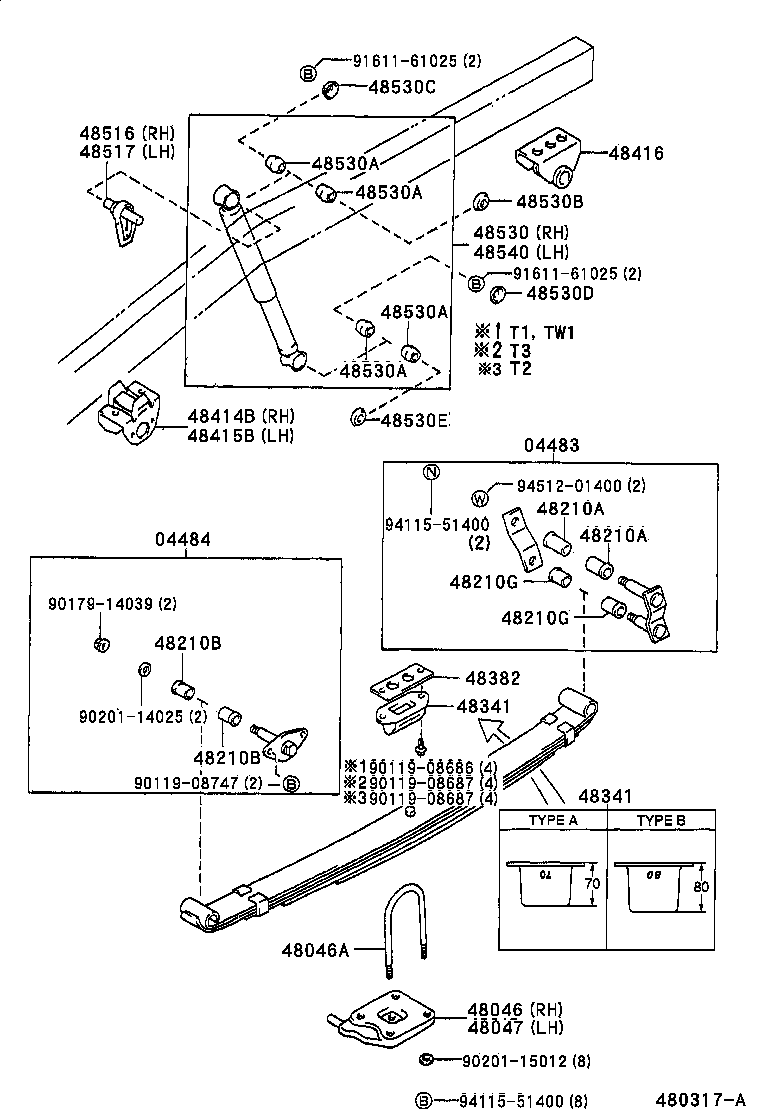

ILLUST NO. 1 OF 2(8809- )LN8#,YN8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35051 |
LN8#,YN8# |
2 | ||
| 04483-35070 |
LN85,86,YN85,86..RCB;LN107,108,109,112,80,81,YN107,80,81 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-35030 |
LN10#,8#,YN10#,8# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35140 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14040 |
LN8#,YN8#..T1,T3,TW1 長さ=155 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35140 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18012 |
LN85,86,YN85,86..RCB;LN107,108,109,112,80,81,YN107,80,81 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18012 |
LN85,86,YN85,86..RCB;LN107,108,109,112,80,81,YN107,80,81 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LN100,106,8#,YN100,105,8# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LN100,106,8#,YN100,105,8# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN10#,112,8#,YN10#,8# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN10#,112,8#,YN10#,8# |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-35050 |
LN8#,YN8#..T1,TW1 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48341-35060 |
LN8#,YN8# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-35050 |
LN8#,YN8#..T1,TW1 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48341-35060 |
LN8#,YN8# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-35160 |
LN100,106,8#,YN100,105,8#..T1,TW1 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-35160 |
LN100,106,8#,YN100,105,8#..T1,TW1 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-35080 |
LN8#,YN8# |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35030 |
LN8#,YN8# |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35030 |
LN8#,YN8# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39925 |
LN8#,YN8# ﾏｰｸ 48531−35600 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN8#,YN8# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN8#,YN8# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN8#,YN8# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN8#,YN8# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
LN8#,YN8# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
LN8#,YN8# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
LN8#,YN8# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
LN8#,YN8# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39925 |
LN8#,YN8# ﾏｰｸ 48531−35600 |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08687 | ||||
| 90119-08747 | ||||
| 90179-14039 | ||||
| 90201-14025 | ||||
| 90201-15012 | ||||
| 91611-61025 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

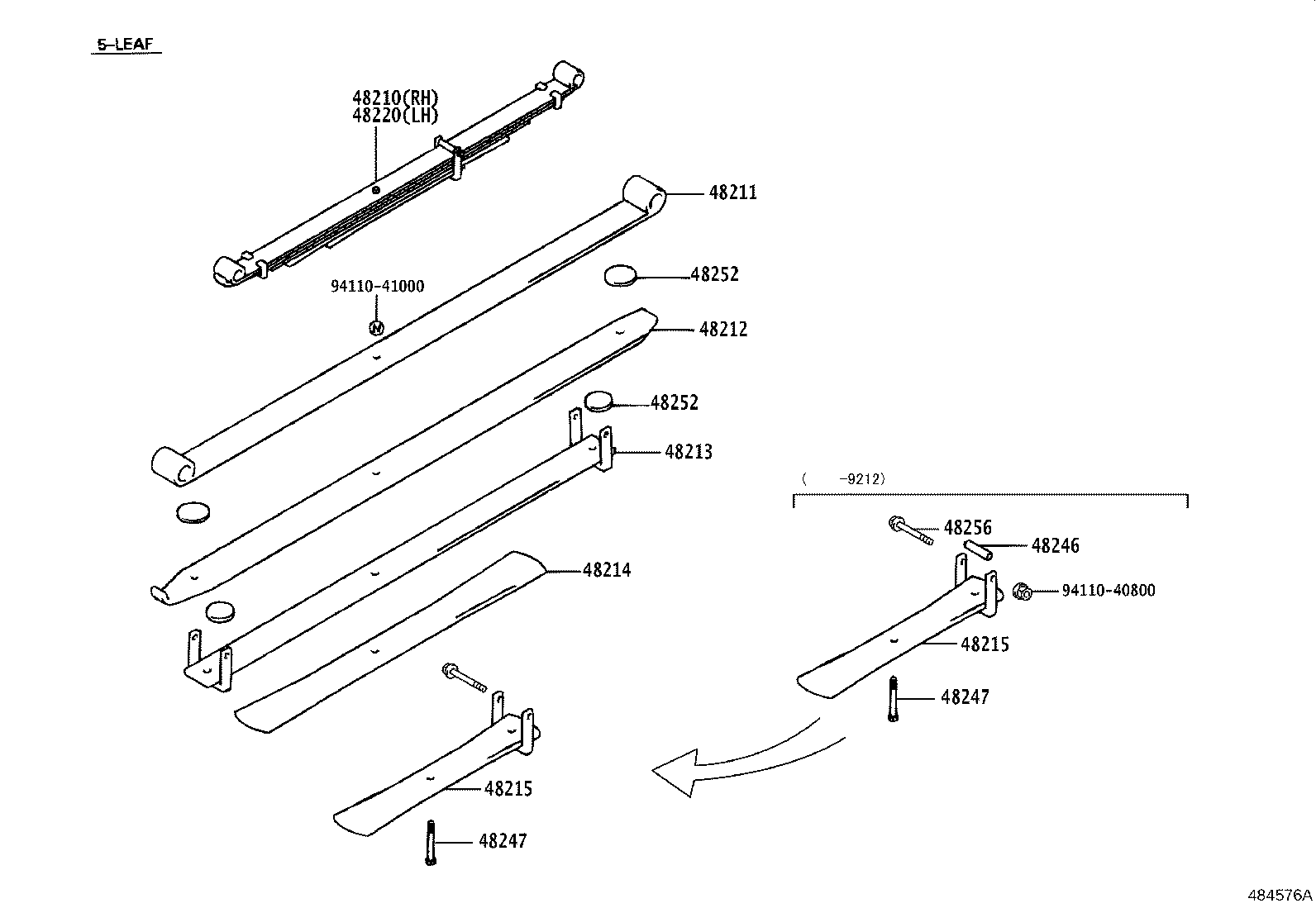

ILLUST NO. 2 OF 2(8809- )LN8#,YN8#..T1,TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35730 |
LN8#,YN8#..T1 5枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48210-35630 |
LN8#,YN8#..T1 5枚ﾘｰﾌ |
1 | ||
| 48210-35640 |
LN8#,YN8#..T1 5枚ﾘｰﾌ,ｱﾘ(185R14 ﾀｲﾔ) |
1 | ||
| 48210-35640 |
LN8#,YN8#..T1..(DLX,SDX) 5枚ﾘｰﾌ,ｱﾘ(185R14 ﾀｲﾔ) |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35730 |
LN8#,YN8#..T1 厚さ=8.0 |
2 | ||
| 48211-35640 |
LN8#,YN8#..T1 ｱﾘ(185R14 ﾀｲﾔ),厚さ=7.0 |
2 | ||
| 48211-35630 |
LN8#,YN8#..T1 厚さ=7.0 |
2 | ||
| 48211-35640 |
LN8#,YN8#..T1..(DLX,SDX) ｱﾘ(185R14 ﾀｲﾔ),厚さ=7.0 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35730 |
LN8#,YN8#..T1 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,厚さ=8.0 |
2 | ||
| 48202-35730 |
LN8#,YN8#..T1 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,厚さ=8.0 |
2 | ||
| 48212-35640 |
LN8#,YN8#..T1 ｱﾘ(185R14 ﾀｲﾔ),厚さ=7.0 |
2 | ||
| 48212-35640 |
LN8#,YN8#..T1..(DLX,SDX) ｱﾘ(185R14 ﾀｲﾔ),厚さ=7.0 |
2 | ||
| 48212-35630 |
LN8#,YN8#..T1 厚さ=7.0 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35640 |
LN8#,YN8#..T1..(DLX,SDX) ｱﾘ(185R14 ﾀｲﾔ),厚さ=7.0 |
2 | ||
| 48202-35730 |
LN8#,YN8#..T1 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,厚さ=8.0 |
2 | ||
| 48202-35630 |
LN8#,YN8#..T1 厚さ=7.0 |
2 | ||
| 48202-35640 |
LN8#,YN8#..T1 ｱﾘ(185R14 ﾀｲﾔ),厚さ=7.0 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-35730 |
LN8#,YN8#..T1 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,厚さ=8.0 |
2 | ||
| 48214-35630 |
LN8#,YN8#..T1 厚さ=7.0 |
2 | ||
| 48214-35640 |
LN8#,YN8#..T1..(DLX,SDX) ｱﾘ(185R14 ﾀｲﾔ),T=12.0 |
2 | ||
| 48214-35640 |
LN8#,YN8#..T1 ｱﾘ(185R14 ﾀｲﾔ),T=12.0 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-35630 |
LN8#,YN8#..T1 厚さ=7.0 |
2 | ||
| 48203-35640 |
LN8#,YN8#..T1..(DLX,SDX) ｱﾘ(185R14 ﾀｲﾔ),T=12.0 |
2 | ||
| 48203-35640 |
LN8#,YN8#..T1 ｱﾘ(185R14 ﾀｲﾔ),T=12.0 |
2 | ||
| 48203-35730 |
LN8#,YN8#..T1 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,厚さ=8.0 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-35630 |
LN8#,YN8#..T1 厚さ=7.0 |
2 | ||
| 48203-35640 |
LN8#,YN8#..T1..(DLX,SDX) ｱﾘ(185R14 ﾀｲﾔ),T=12.0 |
2 | ||
| 48203-35640 |
LN8#,YN8#..T1 ｱﾘ(185R14 ﾀｲﾔ),T=12.0 |
2 | ||
| 48203-35730 |
LN8#,YN8#..T1 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,厚さ=8.0 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35640 |
LN8#,YN8#..T1 5枚ﾘｰﾌ,ｱﾘ(185R14 ﾀｲﾔ) |
1 | ||
| 48210-35640 |
LN8#,YN8#..T1..(DLX,SDX) 5枚ﾘｰﾌ,ｱﾘ(185R14 ﾀｲﾔ) |
1 | ||
| 48210-35730 |
LN8#,YN8#..T1 5枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48210-35630 |
LN8#,YN8#..T1 5枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-35160 |
LN8#,YN8# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35630 |
LN8#,YN8# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35630 |
LN8#,YN8# |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
LN8#,YN8#..T1,TW1 |
8 | ||
| 48252-35270 |
LN8#,YN8#..RCB ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
LN8#,YN8#..T1,TW1 |
8 | ||
| 48252-35270 |
LN8#,YN8#..RCB ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35160 |
LN8#,YN8# |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
