LN85-TRQSS (1988)
Toyota Hilux
(8809-9408)2L

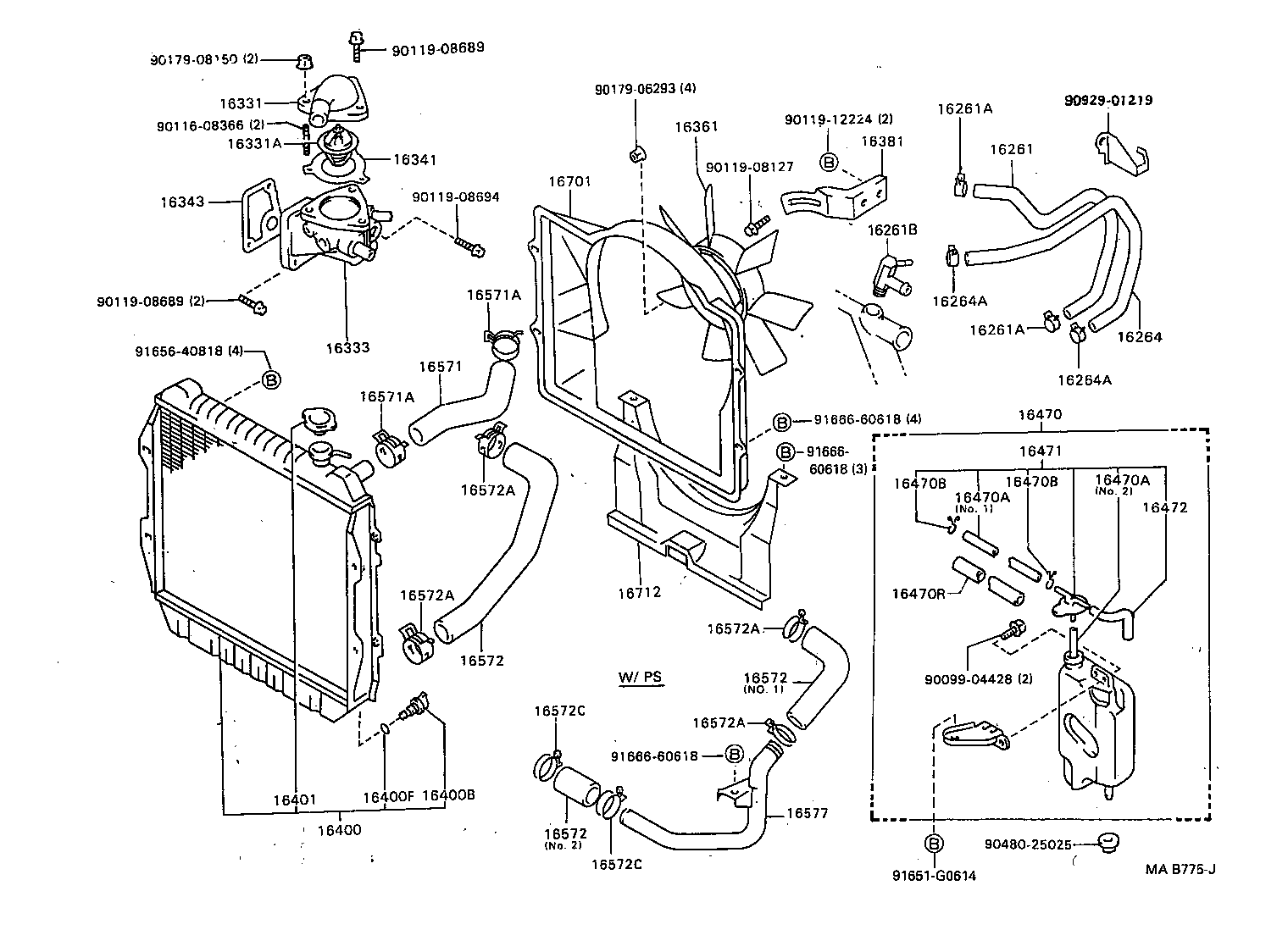

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54080 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16261-54080 |
2L,3L..LN100,106,107,109,131,8# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54070 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#,2L,3L..LN100,106,107,109,13#,8# |
2 | ||
| 90467-15004 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54090 |
2L,3L..LN100,106,107,109,131,8# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2LT#,2L,3L..LN10#,13#,8# *WAX 88−100 |
1 | ||
| 90916-03072 |
2L#,3L..LN10#,13#,8# *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-54030 |
2L,3L..LN10#,131,8# |
1 | ||
| 16333-54111 |
2L,3L..LN10#,131,8# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54030 |
2L,3L..LN10#,131,8# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54030 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 16343-54040 |
2L#,3L..LN10#,112,13#,8# |
1 | ||
| 16361 - FAN | ||||
| 16361-54020 |
2L..LN8#..5H |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16381-54060 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B010 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 16400-54610 |
2L..LN8#..5H |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09099 |
2L..LN8# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90910-09054 |
2LT#,2L,3L..LN10#,13#,8# |
1 | ||
| 90910-09054 |
2L,3L..LN10#,131,8# |
1 | ||
| 90910-09099 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90910-09054 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 90910-09054 |
2L..LN85..5H;2L#,3L..LN10#,112,13#,80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 96711-19007 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 96711-19007 |
2L,3L..LN10#,131,8# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2L,3L..LN10#,131,8# |
1 | ||
| 16401-63010 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 16401-63010 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54120 |
2L,3L..LN10#,131,8# |
1 | ||
| 16470-54120 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT#,2L,3L..LN10#,13#,8# *H,L=220,NO.2 |
1 | ||
| 90445-12078 |
2L,3L..LN10#,131,8# *H,L=260,NO.1 |
1 | ||
| 90445-12078 |
2L,3L..LN100,106,107,109,8# *H,L=260 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT#,2L,3L..LN10#,13#,8# *H,L=220,NO.2 |
1 | ||
| 90445-12078 |
2L,3L..LN10#,131,8# *H,L=260,NO.1 |
1 | ||
| 90445-12078 |
2L,3L..LN100,106,107,109,8# *H,L=260 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16483-55020 |
2L,3L..LN100,106,107,109,131,8# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54180 |
2L,3L..LN100,106,107,109,131,8# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2LT#,2L,3L..LN10#,112,13#,8# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54270 |
2L,3L..LN100,106,107,109,131,8# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37003 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37003 |
2LT#,2L,3L..LN10#,112,13#,8# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54100 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.2 |
1 | ||
| 16572-54390 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.1 |
1 | ||
| 16572-54250 |
2L..LN8#..5H |
1 | ||
| 16573-54100 |
2L..LN8# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.2 |
1 | ||
| 16572-54250 |
2L..LN8# |
1 | ||
| 16572-54390 |
2L..LN8# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54100 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.2 |
1 | ||
| 16572-54390 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.1 |
1 | ||
| 16572-54250 |
2L..LN8#..5H |
1 | ||
| 16573-54100 |
2L..LN8# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.2 |
1 | ||
| 16572-54250 |
2L..LN8# |
1 | ||
| 16572-54390 |
2L..LN8# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54100 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.2 |
1 | ||
| 16572-54390 |
2L..LN8#..5H ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.1 |
1 | ||
| 16572-54250 |
2L..LN8#..5H |
1 | ||
| 16573-54100 |
2L..LN8# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.2 |
1 | ||
| 16572-54250 |
2L..LN8# |
1 | ||
| 16572-54390 |
2L..LN8# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2LT#,2L,3L..LN10#,112,13#,8# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LT#,2L,3L..LN10#,112,13#,8# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54150 |
2L,3L..LN8# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54260 |
2L..LN8#..5H |
1 | ||
| 16711-54410 |
2L..LN8#..5H |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54280 |
2L..LN8#..5H |
1 | ||
| 16712-54180 |
2L..LN8#..5H |
1 | ||
| Common parts | ||||
| 90099-04428 | ||||
| 90116-08366 | ||||
| 90119-08127 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90179-08150 | ||||
| 90480-25025 | ||||
| 90929-01219 | ||||
| 91651-G0614 | ||||
| 91656-40818 | ||||
| 91666-60618 | ||||
