8716 - HEATING & AIR CONDITIONING - WATER PIPING

LN85-TRPDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994

Engine 2L

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8809- )YN107,130,8#

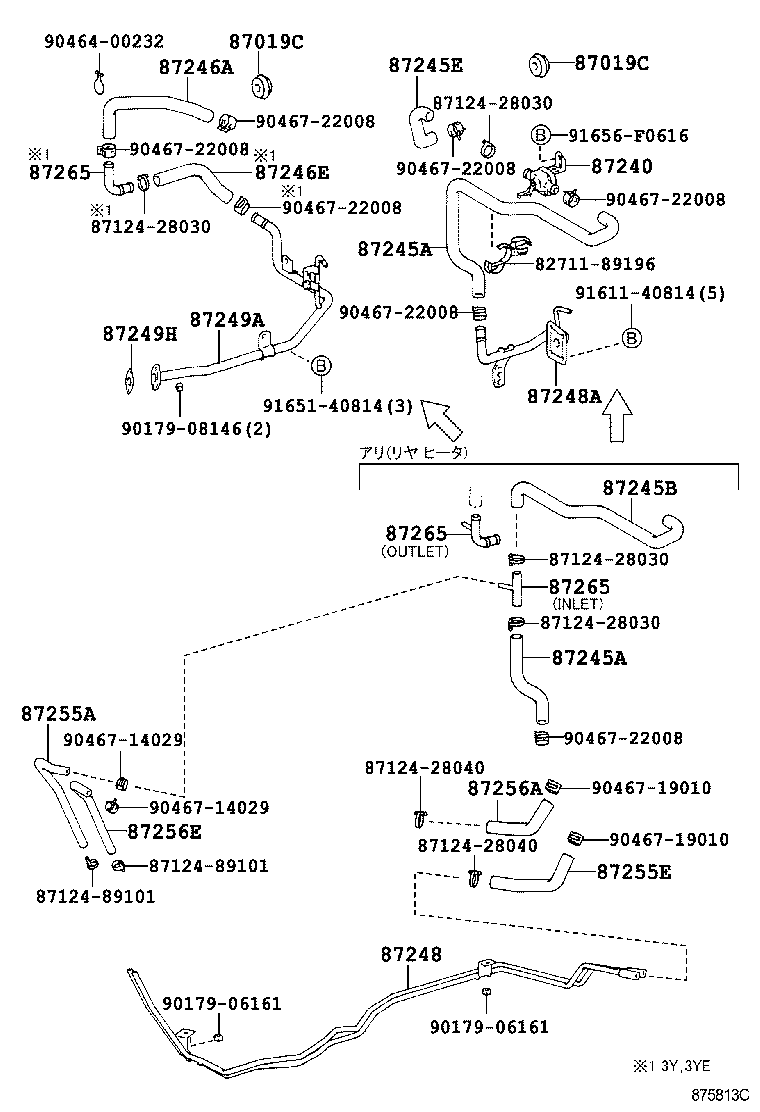

Click highlighted areas on diagram

Part #	Description	Period	Qty
87019C - GROMMET, HEATER HOSE
90480-36005	YN107..CBR;LN10#,112,13#,8#,VZN130,YN100,105,130,80,85,86	09/1988 - 12/2999	2
87019C - GROMMET, HEATER HOSE
90480-36005	YN107..CBR;LN10#,112,13#,8#,VZN130,YN100,105,130,80,85,86	09/1988 - 12/2999	2
87240 - VALVE ASSY, HEATER WATER
87240-35020	KZN130,LN10#,112,8#,VZN130,YN10#,8#	08/1993 - 12/2999	1
87240-89126	LN10#,13#,8#,VZN130,YN10#,130,8#	09/1988 - 08/1993	1
87245A - HOSE, HEATER WATER, INLET A
87245-89238	LN10#,8#	09/1988 - 10/1988	1
87245-89279	LN10#,112,13#,8#	10/1988 - 12/2999	1
87245-89228	YN10#,8#	09/1988 - 08/1994	1
87245A - HOSE, HEATER WATER, INLET A
87245-89238	LN10#,8#	09/1988 - 10/1988	1
87245-89279	LN10#,112,13#,8#	10/1988 - 12/2999	1
87245-89228	YN10#,8#	09/1988 - 08/1994	1
87245B - HOSE, HEATER WATER, INLET B
87245-89281	LN10#,112,13#,8#	10/1988 - 12/2999	1
87245-89240	LN10#,8#	09/1988 - 10/1988	1
87245E - HOSE, HEATER WATER, INLET E
87245-89233	KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#	09/1988 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89241	LN100,106,107,109,131,8#	09/1988 - 12/2999	1
87245-89217	YN10#,8#	09/1988 - 08/1994	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89239	LN10#,8#	09/1988 - 10/1988	1
87245-89280	LN10#,131,8#	10/1988 - 08/1989	1
87245-89280	LN10#,112,13#,8#	08/1989 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87208-35140	YN10#,8#	10/1991 - 05/1993	1
87208-89134	YN10#,8#	09/1988 - 10/1991	1
87208-89134	YN10#,8#	05/1993 - 08/1994	1
87249A - PIPE, HEATER WATER OUTLET, A
87208-89135	YN10#,8#	09/1988 - 10/1991	1
87208-89135	YN10#,8#	05/1993 - 08/1994	1
87208-35150	YN10#,8#	10/1991 - 05/1993	1
87249H - GASKET, WATER OUTLET PIPE
17175-72011	YN10#,130,8#	12/1989 - 12/2999	1
17175-72010	YN10#,130,8#	09/1988 - 12/1989	1
Common parts
82711-89196
87124-28030
87124-28040
87124-89101
90179-06161
90179-08146
90464-00232
90467-14029
90467-19010
90467-22008
91611-40814
91651-40814
91656-F0616

ILLUST NO. 1 OF 2(8809- )LN10#,112,13#,8#

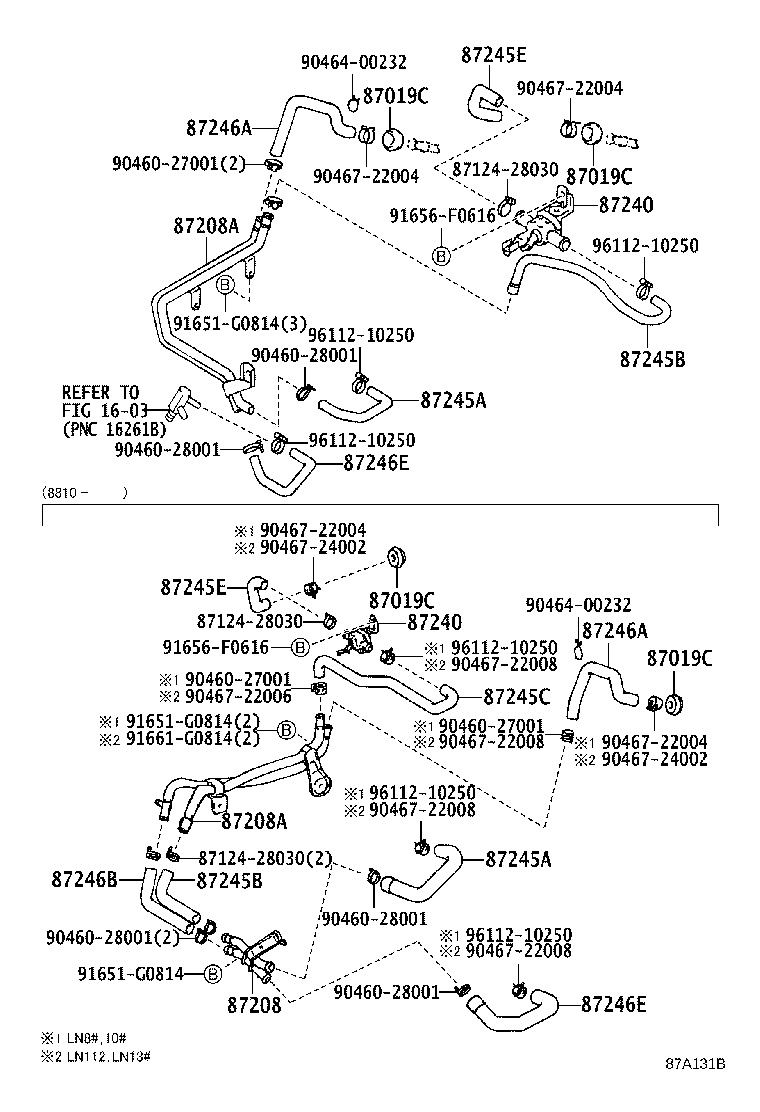

Click highlighted areas on diagram

ﾅｼ(ﾘﾔﾋ-ﾀ)

Part #	Description	Period	Qty
87019C - GROMMET, HEATER HOSE
90480-36005	YN107..CBR;LN10#,112,13#,8#,VZN130,YN100,105,130,80,85,86	09/1988 - 12/2999	2
87019C - GROMMET, HEATER HOSE
90480-36005	YN107..CBR;LN10#,112,13#,8#,VZN130,YN100,105,130,80,85,86	09/1988 - 12/2999	2
87019C - GROMMET, HEATER HOSE
90480-36005	YN107..CBR;LN10#,112,13#,8#,VZN130,YN100,105,130,80,85,86	09/1988 - 12/2999	2
87019C - GROMMET, HEATER HOSE
90480-36005	YN107..CBR;LN10#,112,13#,8#,VZN130,YN100,105,130,80,85,86	09/1988 - 12/2999	2
87208 - PIPE SUB-ASSY, HEATER WATER
87208-89144	LN100,106,107,109,131,8#	10/1988 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136	LN10#,8#	09/1988 - 10/1988	1
87208-89143	LN100,106,107,109,131,8#	10/1988 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136	LN10#,8#	09/1988 - 10/1988	1
87208-89143	LN100,106,107,109,131,8#	10/1988 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-35020	KZN130,LN10#,112,8#,VZN130,YN10#,8#	08/1993 - 12/2999	1
87240-89126	LN10#,13#,8#,VZN130,YN10#,130,8#	09/1988 - 08/1993	1
87240 - VALVE ASSY, HEATER WATER
87240-35020	KZN130,LN10#,112,8#,VZN130,YN10#,8#	08/1993 - 12/2999	1
87240-89126	LN10#,13#,8#,VZN130,YN10#,130,8#	09/1988 - 08/1993	1
87245A - HOSE, HEATER WATER, INLET A
87245-89238	LN10#,8#	09/1988 - 10/1988	1
87245-89279	LN10#,112,13#,8#	10/1988 - 12/2999	1
87245-89228	YN10#,8#	09/1988 - 08/1994	1
87245A - HOSE, HEATER WATER, INLET A
87245-89238	LN10#,8#	09/1988 - 10/1988	1
87245-89279	LN10#,112,13#,8#	10/1988 - 12/2999	1
87245-89228	YN10#,8#	09/1988 - 08/1994	1
87245B - HOSE, HEATER WATER, INLET B
87245-89281	LN10#,112,13#,8#	10/1988 - 12/2999	1
87245-89240	LN10#,8#	09/1988 - 10/1988	1
87245B - HOSE, HEATER WATER, INLET B
87245-89281	LN10#,112,13#,8#	10/1988 - 12/2999	1
87245-89240	LN10#,8#	09/1988 - 10/1988	1
87245C - HOSE, HEATER WATER ,INLET C
87245-89240	LN100,106,107,109,131,8#	10/1988 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-89233	KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#	09/1988 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-89233	KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#	09/1988 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89241	LN100,106,107,109,131,8#	09/1988 - 12/2999	1
87245-89217	YN10#,8#	09/1988 - 08/1994	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89241	LN100,106,107,109,131,8#	09/1988 - 12/2999	1
87245-89217	YN10#,8#	09/1988 - 08/1994	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-89282	LN10#,112,13#,8#	10/1988 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89239	LN10#,8#	09/1988 - 10/1988	1
87245-89280	LN10#,131,8#	10/1988 - 08/1989	1
87245-89280	LN10#,112,13#,8#	08/1989 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89239	LN10#,8#	09/1988 - 10/1988	1
87245-89280	LN10#,131,8#	10/1988 - 08/1989	1
87245-89280	LN10#,112,13#,8#	08/1989 - 12/2999	1
Common parts
87124-28030
90460-27001
90460-28001
90464-00232
90467-22004
90467-22006
90467-22008
90467-24002
91651-G0814
91656-F0616
91661-G0814
96112-10250
