LN85-TRPDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )LN8#,YN8#

Click highlighted areas on diagram

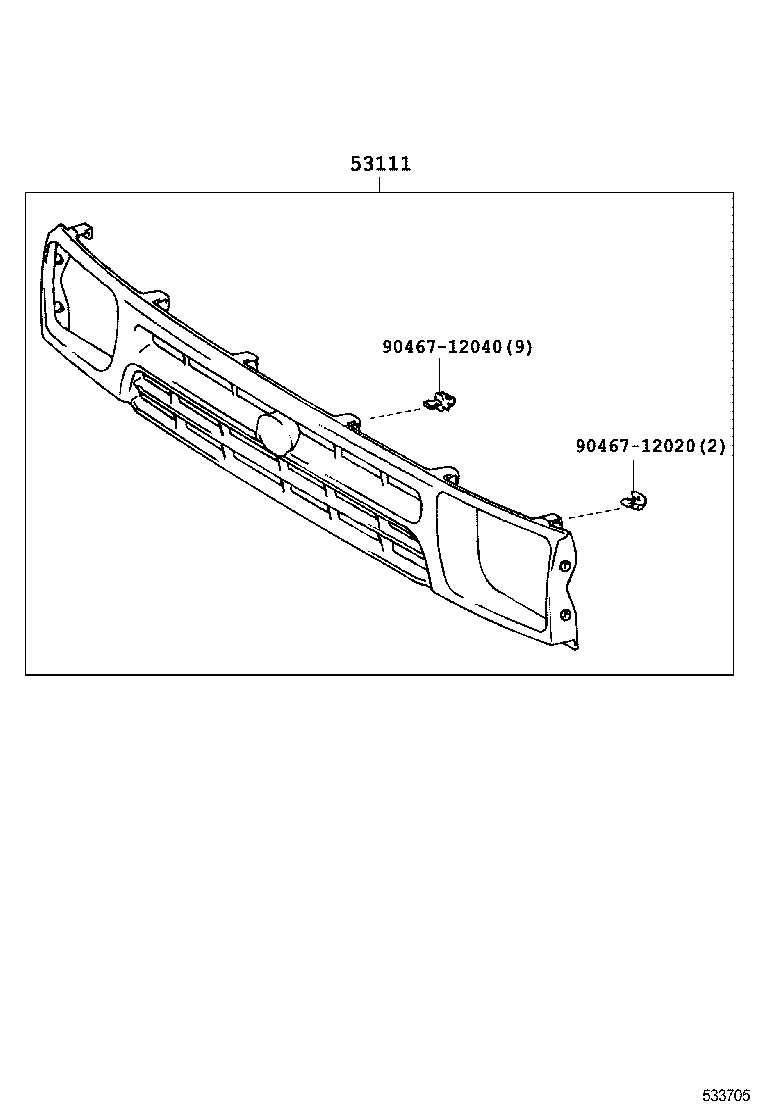

diagram 53111 9046712020 9046712040
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-89131

LN8#,YN8#..DLX

塗装不要

 1
53111-35060

LN8#,YN8#

塗装不要

 1
Common parts
90467-12020
90467-12040

(8809-9108)LN8#,YN8#

Click highlighted areas on diagram

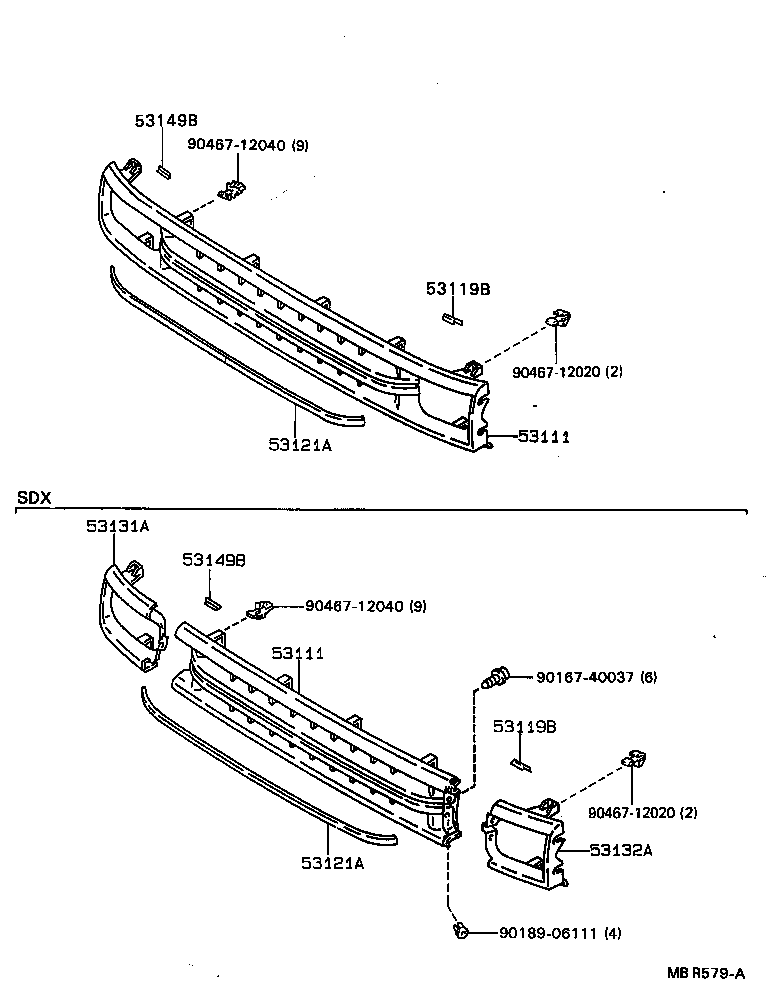

diagram 53111 53111 53119B 53119B 53121A 53121A 53131A 53132A 53149B 53149B 9016740037 9018906111 9046712020 9046712020 9046712040 9046712040
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-89131

LN8#,YN8#..DLX

塗装不要

 1
53111-35060

LN8#,YN8#

塗装不要

 1
53111 - GRILLE, RADIATOR
53111-89131

LN8#,YN8#..DLX

塗装不要

 1
53111-35060

LN8#,YN8#

塗装不要

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-89105

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-89105

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
53121A - MOULDING, RADIATOR GRILLE
53121-89108

LN8#,YN8#..DLX

 2
53121A - MOULDING, RADIATOR GRILLE
53121-89108

LN8#,YN8#..DLX

 2
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
Common parts
90167-40037
90189-06111
90467-12020
90467-12040
