LN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )T2,T3

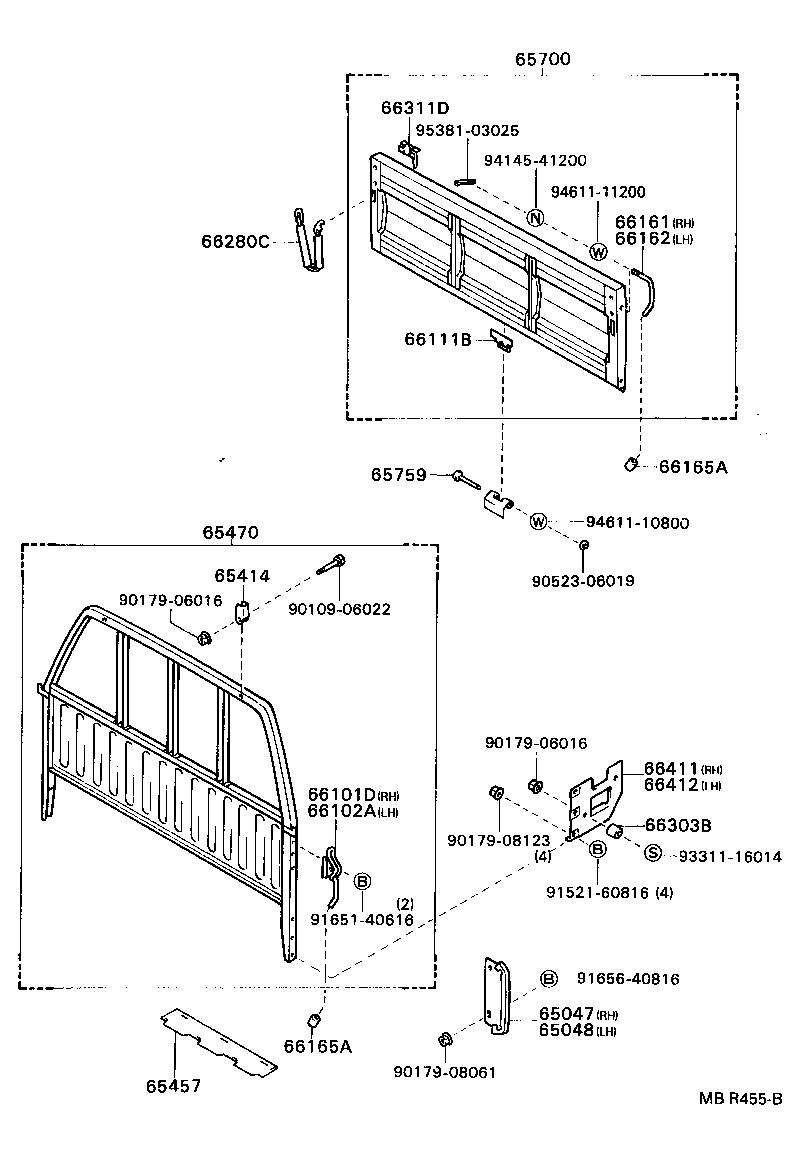

Click highlighted areas on diagram

diagram 65047 65048 65414 65457 65470 65700 65759 66101D 66102A 66111B 66161 66162 66165A 66165A 66280C 66303B 66311D 66411 66412 9010906022 9017906016 9017906016 9017908061 9017908123 9052306019 9152160816 9165140616 9165640816 9331116014 9414541200 9461110800 9461111200 9538103025
Part # Description Qty Price
65047 - PROTECTOR SUB-ASSY, GUARD FRAME, RH
65047-89101

LN85,86,YN85,86..(T2,T3)..CBU

 1
65048 - PROTECTOR SUB-ASSY, GUARD FRAME, LH
65048-89101

LN85,86,YN85,86..(T2,T3)..CBU

 1
65414 - STOPPER, GUARD FRAME
65414-89102

LN100,106,107,8#,YN10#,8#..(DLX,SDX,SR,STD)..CBU

 2
65457 - PLATE, BAFFLE DUST REAR BODY
65457-89102

LN85,86,YN85,86..(T2,T3)..CBU

 1
65470 - BOARD ASSY, HEADER
65470-89145

LN85,86,YN85,86..T2..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-89152

LN85,86,YN85,86..(T2,T3)..CBU

 1
65759 - COVER, TAIL GATE SERVICE HOLE
66113-89105

LN85,86,YN85,86..(T2,T3)..CBU

 3
66113-87402

LN85,YN85..(T2,T3)..CBU

 3
66101D - LATCH SUB-ASSY, GATE
66101-87401

LN85,86,YN85,86..(T2,T3)..CBU

 1
66102A - LATCH SUB-ASSY, GATE
66102-87401

LN85,86,YN85,86..(T2,T3)..CBU

 1
66111B - HINGE, TAIL GATE MALE
66111-87404

LN85,86,YN85,86..(T2,T3)..CBU

 3
66161 - HANDLE, SIDE GATE LATCH, RH
66161-87403

LN85,86,YN85,86..(T2,T3)..CBU

 1
66162 - HANDLE, SIDE GATE LATCH, LH
66162-87402

LN85,86,YN85,86..(T2,T3)..CBU

 1
66165A - CAP, GATE LATCH HANDLE
66165-87402

LN85,86,YN85,86..(T2,T3)..CBU

 4
66165A - CAP, GATE LATCH HANDLE
66165-87402

LN85,86,YN85,86..(T2,T3)..CBU

 4
66280C - CHAIN ASSY, TAIL GATE
66280-95700

LN85,86,YN85,86..(T2,T3)..CBU

 2
66303B - CUSHION SUB-ASSY, RUBBER
52208-89101

LN85,86,YN85,86..T2..CBU

 4
66311D - HOOK, ROPE
66311-87401

LN85,86,YN85,86..(T2,T3)..CBU

 3
66411 - BRACKET, GUARD FRAME, RH
66411-95700

LN85,YN85..(T2,T3)..CBU

 1
66411-95701

LN85,86,YN85,86..(T2,T3)..CBU

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95700

LN85,YN85..(T2,T3)..CBU

 1
66412-95701

LN85,86,YN85,86..(T2,T3)..CBU

 1
Common parts
90109-06022
90179-06016
90179-08061
90179-08123
90523-06019
91521-60816
91651-40616
91656-40816
93311-16014
94145-41200
94611-10800
94611-11200
95381-03025
