LN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )2LT#,2L,3L

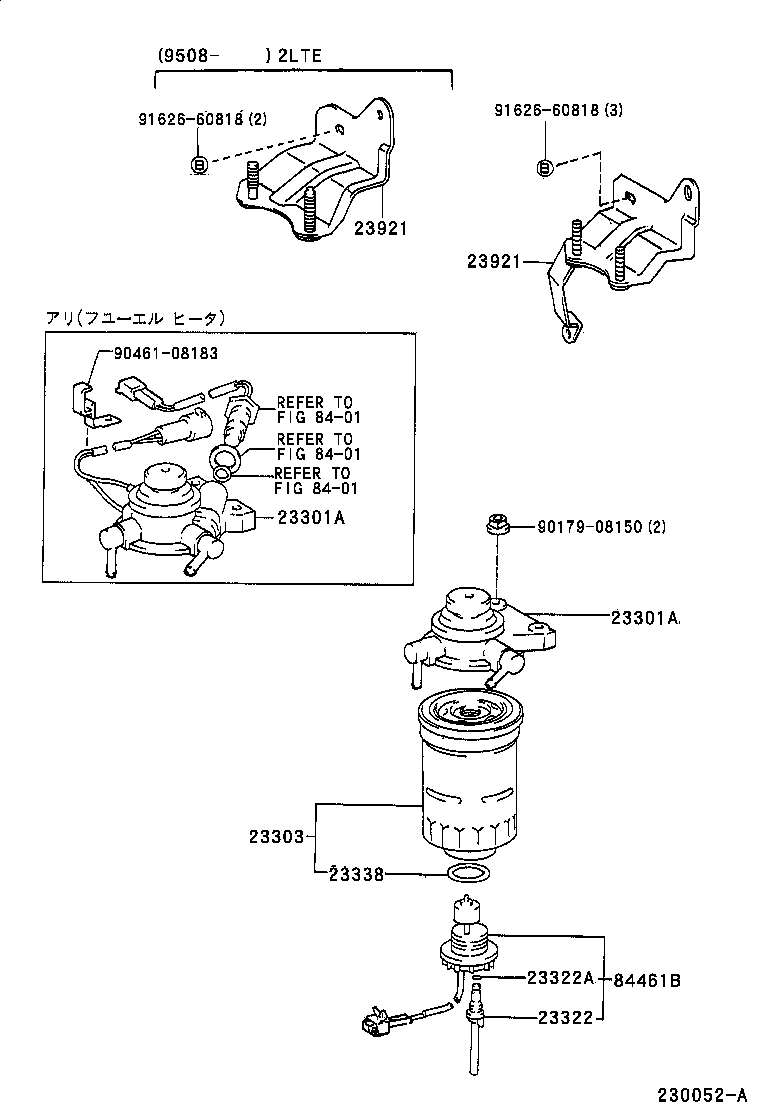

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 23921 23921 8401 8401 8401 84461B 9017908150 9046108183 9162660818 9162660818
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54420

2LT#,2L,3L..LN10#,112,13#,8#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54410

2LT#,2L,3L..LN10#,112,13#,8#

 1
23301A - CAP ASSY, FUEL FILTER
23301-54420

2LT#,2L,3L..LN10#,112,13#,8#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54410

2LT#,2L,3L..LN10#,112,13#,8#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64020

2LT#,2L,3L..LN10#,13#,8#

 1
23303-64010

2L#,3L..LN10#,112,13#,8#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2LT#,2L,3L..LN10#,112,13#,8#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2LT#,2L,3L..LN10#,112,13#,8#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2LT#,2L,3L..LN10#,112,13#,8#

 1
23921 - SUPPORT, FUEL FILTER
23921-54270

2LT,2L,3L..LN100,106,107,109,13#,8#

 1
23921 - SUPPORT, FUEL FILTER
23921-54270

2LT,2L,3L..LN100,106,107,109,13#,8#

 1
84461B - SWITCH, LEVEL WARNING
84461-35060

LN10#,13#,8#

 1
Common parts
90179-08150
90461-08183
91626-60818
Linked diagrams
8401
