LN85-PRQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

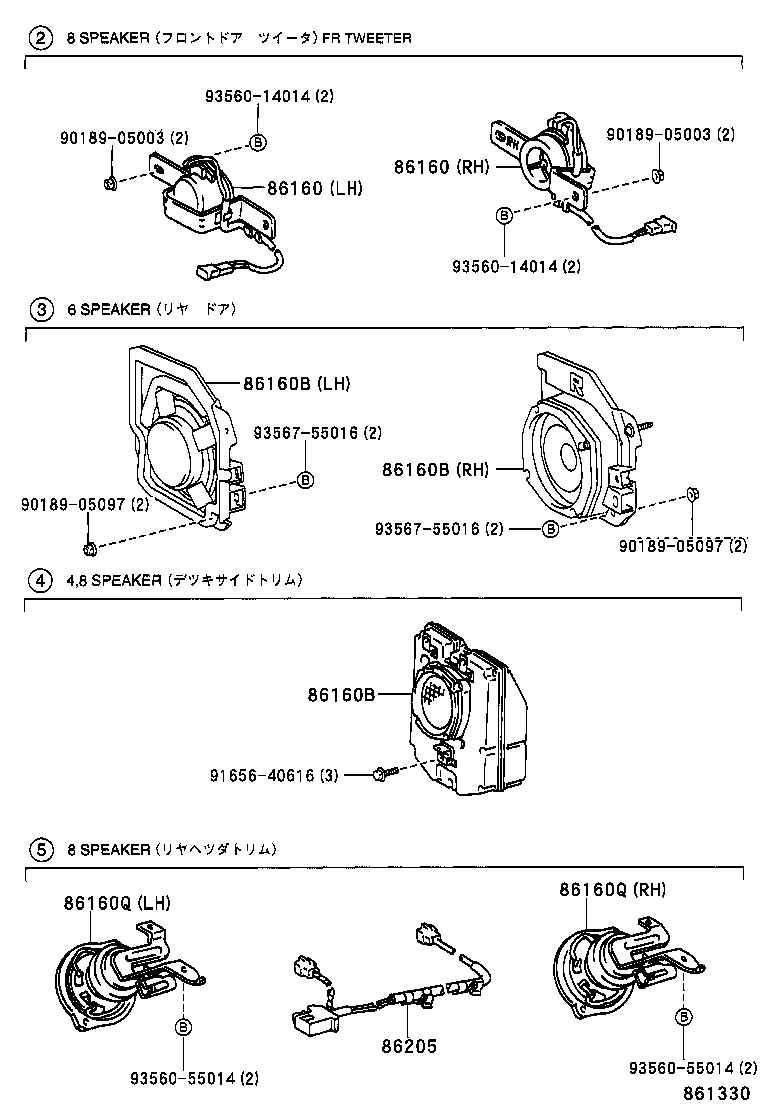

ILLUST NO. 2 OF 2(8809- )

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160B 86160Q 86160Q 86205 9018905003 9018905003 9018905097 9018905097 9165640616 9356014014 9356014014 9356055014 9356055014 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN10#,13#,8#,YN10#,130,8#

 1
86160-16130

LN10#,13#,8#,VZN130,YN10#,130,8#

ｱﾘ(2 ｽﾋﾟ-ｶ)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN10#,13#,8#,YN10#,130,8#

 1
86160-16130

LN10#,13#,8#,VZN130,YN10#,130,8#

ｱﾘ(2 ｽﾋﾟ-ｶ)

 2
Common parts
90189-05003
90189-05097
91656-40616
93560-14014
93560-55014
93567-55016

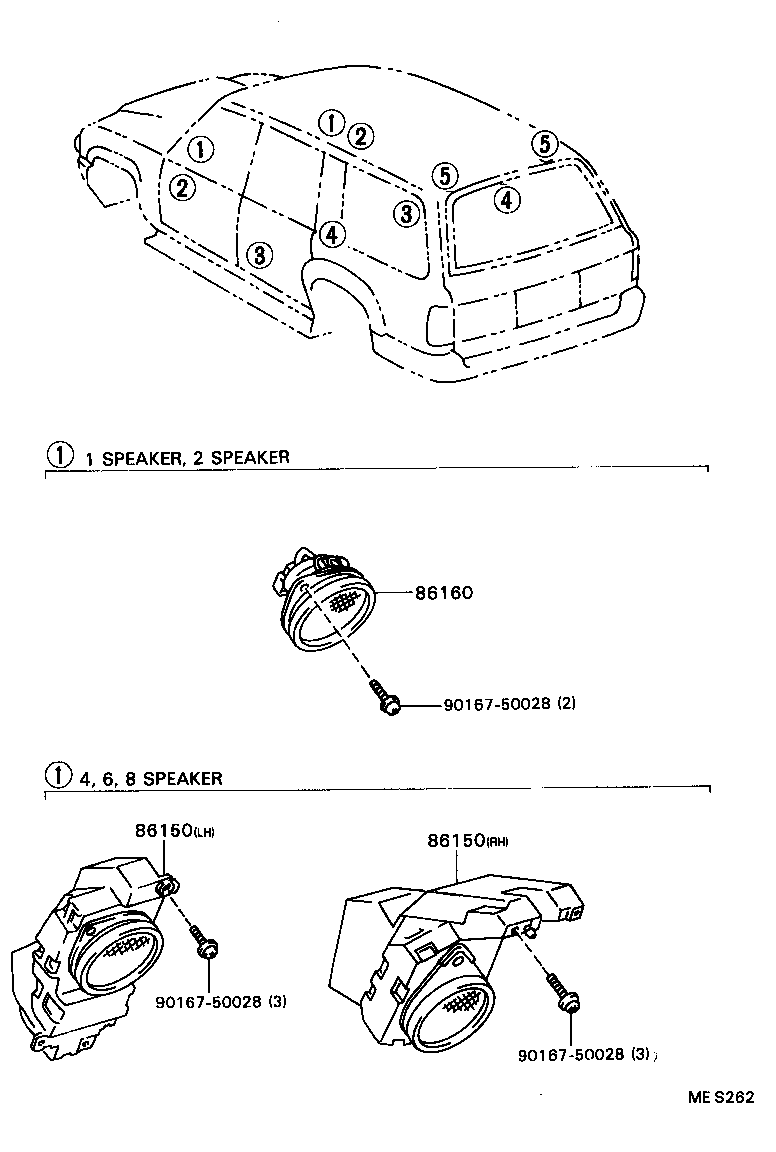

ILLUST NO. 1 OF 2(8809- )

Click highlighted areas on diagram

diagram 86150 86150 86160 9016750028 9016750028 9016750028
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN10#,13#,8#,YN10#,130,8#

 1
86160-16130

LN10#,13#,8#,VZN130,YN10#,130,8#

ｱﾘ(2 ｽﾋﾟ-ｶ)

 2
Common parts
90167-50028
