LN85-PRQDS (1988)
Toyota Hilux
(8809-9108)
2-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3527004 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-3527003 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-35270E0 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45100-3527006 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-04010J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 45100-04010B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 45100-35340B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-35100J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45112-3510003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45112-3510006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45112-35100E0 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45112-3510004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45112-35100B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45112-35100J0 |
LN106,8#,YN8#..DLX,STD MEDIUM BLUE,TRIM8# |
1 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-3517004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45125-3517003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45125-3517006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45125-3517004 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-35060 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-35050 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3504004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45180-3504003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX,STD MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-3504006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35040B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-35040E0 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-04010B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-04010J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-35060B0 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90179-12071 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,8# |
1 | ||
| Common parts | ||||
| 90167-41001 | ||||
(8809-9108)

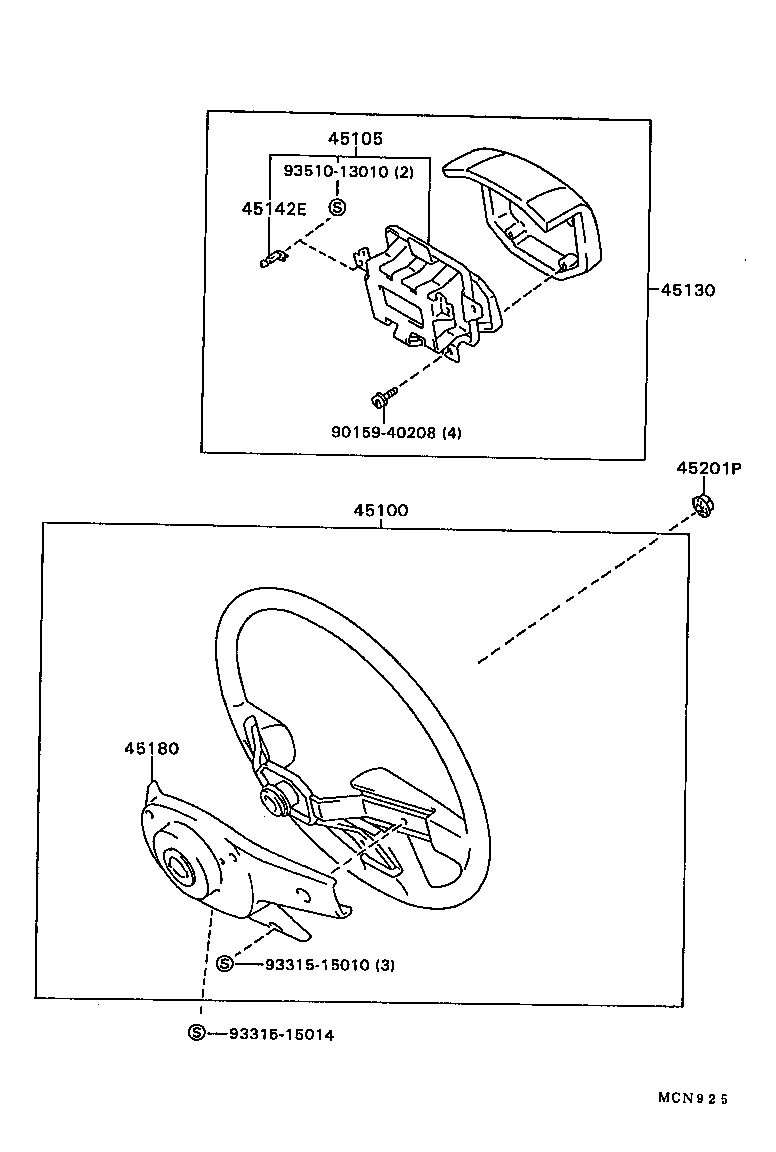

3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3527004 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-3527003 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-35270E0 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45100-3527006 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-04010J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 45100-04010B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 45100-35340B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-35060 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3504004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45180-3504003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX,STD MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-3504006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35040B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-35040E0 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-04010B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-04010J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-35060B0 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90179-12071 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,8# |
1 | ||
| Common parts | ||||
| 93315-15010 | ||||
| 93315-15014 | ||||
(9108-9408)
2-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3527004 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-3527003 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-35270E0 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45100-3527006 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-04010J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 45100-04010B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 45100-35340B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-35060 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3504004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45180-3504003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX,STD MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-3504006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35040B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-35040E0 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-04010B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-04010J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-35060B0 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90179-12071 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,8# |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90167-41001 | ||||
| 93315-15014 | ||||
(9108- )
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3527004 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-3527003 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-35270E0 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45100-3527006 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-04010J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 45100-04010B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 45100-35340B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-35060 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3504004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45180-3504003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX,STD MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-3504006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35040B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-35040E0 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-04010B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-04010J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-35060B0 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90179-12071 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,8# |
1 | ||
| Common parts | ||||
| 90159-40208 | ||||
| 93315-15010 | ||||
| 93315-15014 | ||||
| 93510-13010 | ||||
(8904- )
3-SPOKE,ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3527004 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-3527003 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-35270E0 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270J0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35270B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45100-3527006 |
LN8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-35340J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8# |
1 | ||
| 45100-04010J0 |
LN106,8#,YN8#..DLX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 45100-04010B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 45100-35340B0 |
LN106,8#,YN8#..DLX,STD 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MEDIUM GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-35060 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-3517004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45125-3517003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45125-3517006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45125-3517004 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45130-35270J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3504004 |
LN106,8#,YN8#..DLX,STD BLUE,TRIM8# |
1 | ||
| 45180-3504003 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX,STD MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-3504006 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35040B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-35040E0 |
LN8#,YN8#..DLX BROWN,TRIM4# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45180-35040J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-04010B0 |
LN106,8#,YN8#..DLX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 45180-04010J0 |
LN106,8#,YN8#..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 45180-35060B0 |
LN106,8#,YN8#..DLX,STD GRAY,TRIM1# |
1 | ||
| 45180-35060J0 |
LN106,8#,YN8#..DLX BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90179-12071 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,8# |
1 | ||
| Common parts | ||||
| 90159-40208 | ||||
| 93315-15010 | ||||
| 93315-15014 | ||||
| 93510-13010 | ||||
| 93510-15014 | ||||
| Linked diagrams | ||||
| 8408 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
