LN85-PRQDS (1988)
Toyota Hilux
(8809- )2L,3L..LN100,106,107,109,8#
12V 55A

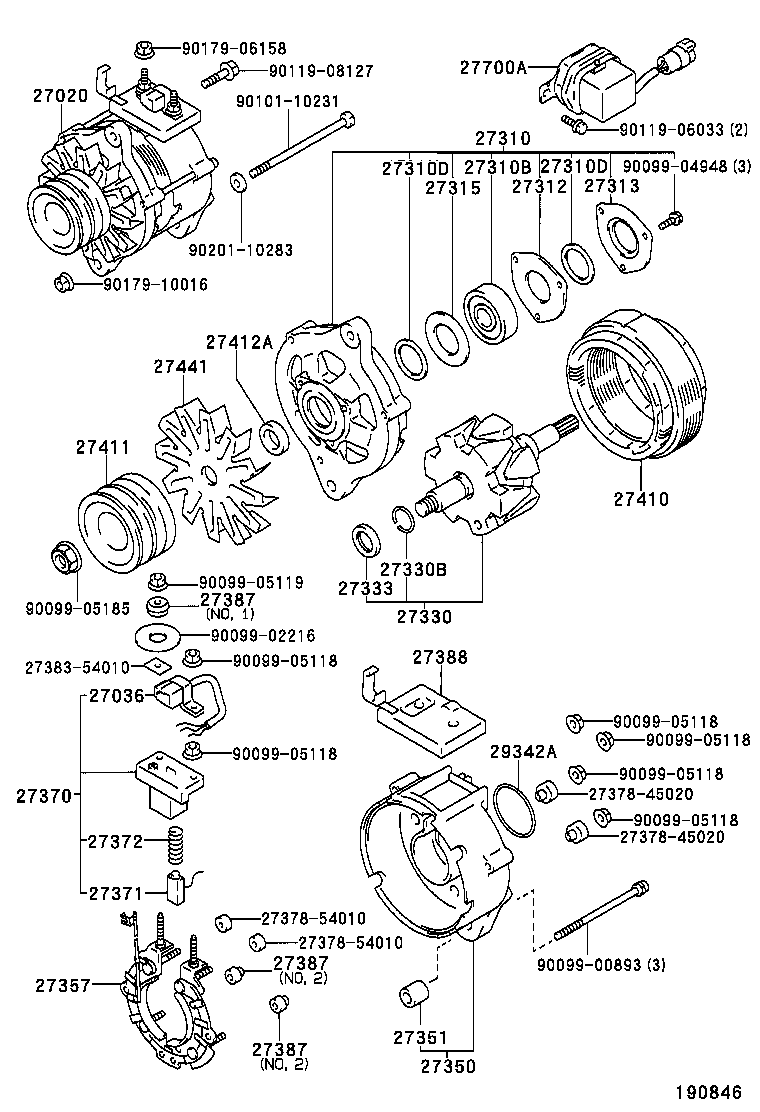

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54351 |
2L,3L..LN10#,8# 12V 55A |
1 | ||
| 27020-54352 |
2L,3L..LN10#,8# 12V 55A |
1 | ||
| 27020-54353 |
2L,3L..LN10#,8# 12V 55A |
1 | ||
| 27020-54354 |
2L,3L..LN100,106,107,109,8# 12V 55A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54250 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
2L,3L..LN10#,8# |
1 | ||
| 27310-54130 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27310-54131 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 90099-10137 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27310D - WASHER, FELT | ||||
| 90099-02209 |
2L,3L..LN100,106,107,109,8# |
2 | ||
| 90099-02209 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 27310D - WASHER, FELT | ||||
| 90099-02209 |
2L,3L..LN100,106,107,109,8# |
2 | ||
| 90099-02209 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27312-57060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27313-57060 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27315-57060 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
2L,3L..LN10#,8# |
1 | ||
| 27330-64011 |
2L,3L..LN10#,8# |
1 | ||
| 27330-64012 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 90099-07103 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27333-57060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54130 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27350-54130 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27351-56013 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-64060 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2L,3L..LN10#,8# |
2 | ||
| 27371-56070 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 27371-54412 |
2L,3L..LN100,106,107,109,8# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2L,3L..LN100,106,107,109,8# |
2 | ||
| 27372-56070 |
2L#,3L..LN10#,13#,8# |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
2L,3L..LN10#,8# 12V 60A,NO.1 |
1 | ||
| 27387-56070 |
2L#,3L..LN10#,13#,8# 12V 60A,NO.1 |
1 | ||
| 27387-54010 |
2L#,3L..LN10#,13#,8# NO.2 |
2 | ||
| 27387-54310 |
2L,3L..LN100,106,107,109,8# 12V 55A,NO.1 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
2L,3L..LN10#,8# 12V 60A,NO.1 |
1 | ||
| 27387-56070 |
2L#,3L..LN10#,13#,8# 12V 60A,NO.1 |
1 | ||
| 27387-54010 |
2L#,3L..LN10#,13#,8# NO.2 |
2 | ||
| 27387-54310 |
2L,3L..LN100,106,107,109,8# 12V 55A,NO.1 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
2L,3L..LN10#,8# 12V 60A,NO.1 |
1 | ||
| 27387-56070 |
2L#,3L..LN10#,13#,8# 12V 60A,NO.1 |
1 | ||
| 27387-54010 |
2L#,3L..LN10#,13#,8# NO.2 |
2 | ||
| 27387-54310 |
2L,3L..LN100,106,107,109,8# 12V 55A,NO.1 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-54342 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27388-54341 |
2L,3L..LN10#,8# |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27410-43040 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54350 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27411-54350 |
2L,3L..LN10#,8# |
1 | ||
| 27411-54351 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27412-57060 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
2L,3L,2Y,3Y..LN10#,8#,YN10#,8# |
1 | ||
| 27700-63010 |
2L,3L,2Y,3Y..LN100,106,107,109,8#,YN10#,80,85 |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
2L#,3L..LN10#,13#,8# |
1 | ||
| 90099-14055 |
2L,3L..LN100,106,107,109,8# |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 90099-00893 | ||||
| 90099-02216 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90101-10231 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10283 | ||||
