LN81-TRQDS (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9502)

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85220 85221 85221 9009900913 9009900913 9009900925 9009900925 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-89141

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-89126

LN10#,13#,8#,VZN130,YN10#,130,8#

PNC 85110参照

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89135

LN10#,13#,8#,YN10#,130,8#

右側

 1
85210-89105

LN10#,13#,8#,YN10#,130,8#

左側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89135

LN10#,13#,8#,YN10#,130,8#

右側

 1
85210-89105

LN10#,13#,8#,YN10#,130,8#

左側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12620

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-12560

LN10#,13#,8#,YN10#,130,8#

左側

 1
85220-16410

LN10#,13#,8#,YN10#,130,8#

右側

 1
85220-16580

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12620

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-12560

LN10#,13#,8#,YN10#,130,8#

左側

 1
85220-16410

LN10#,13#,8#,YN10#,130,8#

右側

 1
85220-16580

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12620

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-12560

LN10#,13#,8#,YN10#,130,8#

左側

 1
85220-16410

LN10#,13#,8#,YN10#,130,8#

右側

 1
85220-16580

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

LN10#,13#,8#,VZN130,YN10#,130,8#

右側

 1
85221-12230

LN10#,13#,8#,VZN130,YN10#,130,8#

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

LN10#,13#,8#,VZN130,YN10#,130,8#

右側

 1
85221-12230

LN10#,13#,8#,VZN130,YN10#,130,8#

左側

 1
Common parts
90099-00913
90099-00925
90119-06187

(9502- )

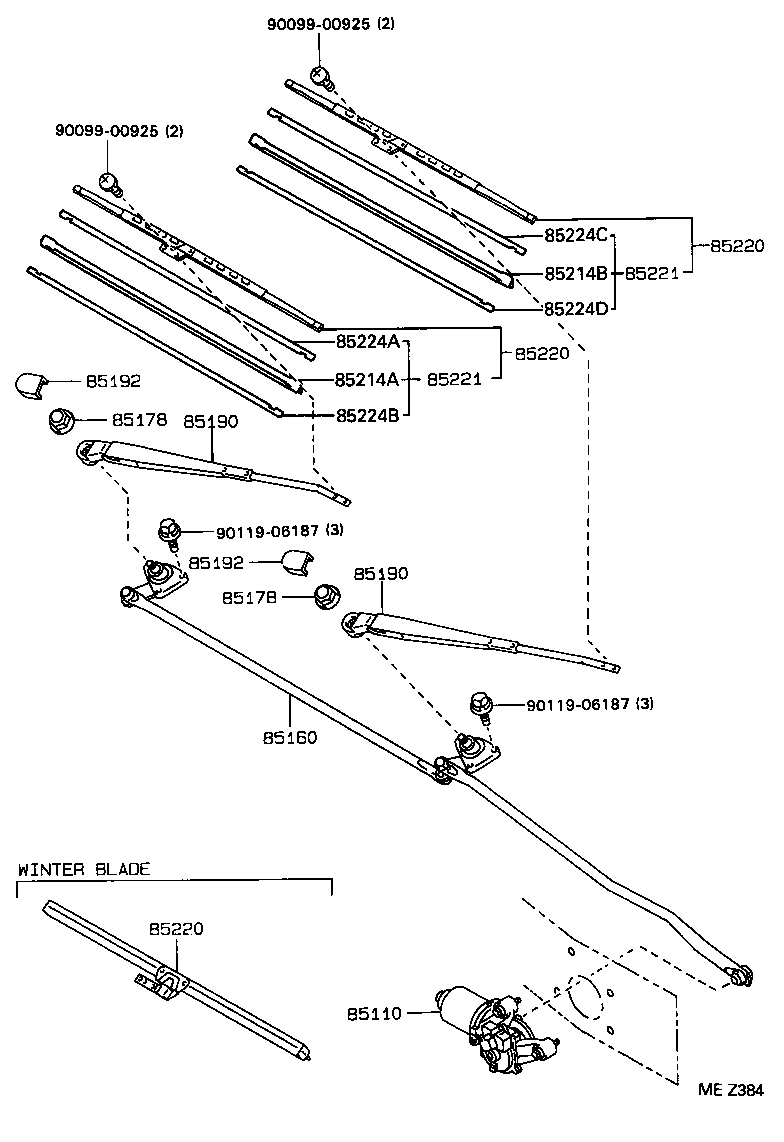

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85214A 85214B 85220 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9009900925 9009900925 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-89141

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-89126

LN10#,13#,8#,VZN130,YN10#,130,8#

PNC 85110参照

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89135

LN10#,13#,8#,YN10#,130,8#

右側

 1
85210-89105

LN10#,13#,8#,YN10#,130,8#

左側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89135

LN10#,13#,8#,YN10#,130,8#

右側

 1
85210-89105

LN10#,13#,8#,YN10#,130,8#

左側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
85214A - RUBBER, WIPER, RH
85214-20320

KZN130,LN10#,112,8#,VZN130,YN107,8#

 1
85214B - RUBBER, WIPER, LH
85214-35010

LN8#,YN8#

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12620

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-12560

LN10#,13#,8#,YN10#,130,8#

左側

 1
85220-16410

LN10#,13#,8#,YN10#,130,8#

右側

 1
85220-16580

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12620

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-12560

LN10#,13#,8#,YN10#,130,8#

左側

 1
85220-16410

LN10#,13#,8#,YN10#,130,8#

右側

 1
85220-16580

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12620

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-12560

LN10#,13#,8#,YN10#,130,8#

左側

 1
85220-16410

LN10#,13#,8#,YN10#,130,8#

右側

 1
85220-16580

LN10#,13#,8#,YN10#,130,8#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

LN10#,13#,8#,VZN130,YN10#,130,8#

右側

 1
85221-12230

LN10#,13#,8#,VZN130,YN10#,130,8#

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

LN10#,13#,8#,VZN130,YN10#,130,8#

右側

 1
85221-12230

LN10#,13#,8#,VZN130,YN10#,130,8#

左側

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-60060

LN10#,112,8#,YN107,8#

 1
85224-60060

LN8#,YN8#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-60060

LN8#,YN8#

 1
85224-60060

LN10#,112,8#,YN107,8#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-35020

LN8#,YN8#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-35020

LN8#,YN8#

 1
Common parts
90099-00925
90119-06187
