LN65-MS (1983)

Toyota Hilux

Production Nov 1983 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311-8508)L,2L# ; (8508- )2LT

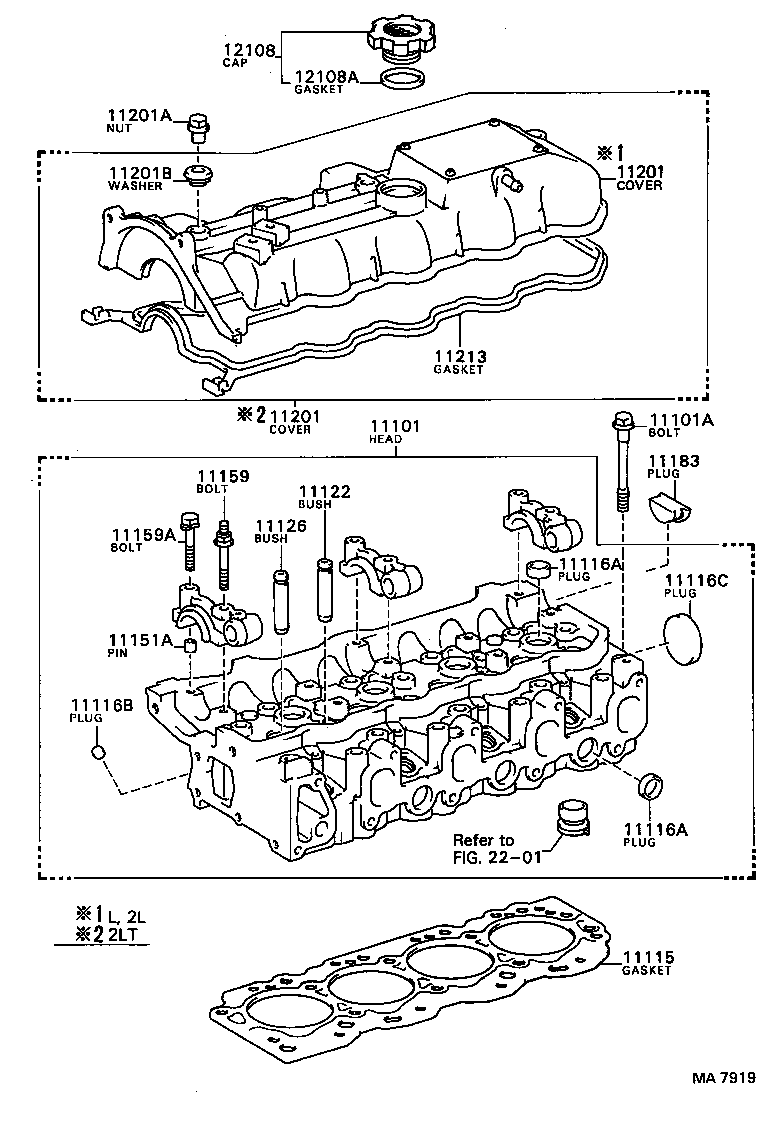

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116A 11116B 11116C 11122 11126 11151A 11159 11159A 11183 11201 11201 11201A 11201B 11213 12108 12108A 2201
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54050

2L..LN51,56,6#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02060

L,2L#..LN5#,6#

*12-1.25PX112-24

 18
11115 - GASKET, CYLINDER HEAD
11115-54020

2L#..LN51,56,6#

 1
11116A - PLUG, TIGHT, NO.1
96411-42500

L,2L#..LN5#,6#

OD=25

 7
11116A - PLUG, TIGHT, NO.1
96411-42500

L,2L#..LN5#,6#

OD=25

 7
11116B - PLUG, TIGHT, NO.2
96411-41200

L,2L#..LN5#,6#

OD=12

 4
11116C - PLUG, TIGHT, NO.3
96411-45000

L,2L#..LN5#,6#

OD=50

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-54011

L,2L#..LN5#,6#

O/S 0.05,O/S 0.05

 4
11122-54011

L,2L#..LN5#,6#

STD,STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54011

L,2L#..LN5#,6#

STD,STD

 4
11123-54011

L,2L#..LN5#,6#

O/S 0.05,O/S 0.05

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11001

L,2L#..LN5#,6#

長さ=11,外径=11,L=11,OD=11

 6
11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-08137

L,2L#..LN5#,6#

L=76.6,S=13&15

 3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08191

L,2L#..LN5#,6#

*8-1.25PX55-30

 3
11183 - PLUG, SEMICIRCULAR
11183-54011

L,2L#..LN5#,6#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-54050

L,2L..LN5#,6#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-54050

L,2L..LN5#,6#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

L,2L#..LN5#,6#

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

L,2L#..LN5#,6#

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-54030

L,2L..LN5#,6#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

L,2L#..LN5#,6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

L,2L#..LN5#,6#

 1
Linked diagrams
2201

(8508- )2L

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116A 11116B 11116C 11122 11126 11151A 11159 11159A 11183 11201 11201A 11201B 11212 11212A 11213 11224 11249 12108 12108A 2201 9011908452 9017906139 9054019002
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54050

2L..LN51,56,6#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02060

L,2L#..LN5#,6#

*12-1.25PX112-24

 18
11115 - GASKET, CYLINDER HEAD
11115-54020

2L#..LN51,56,6#

 1
11116A - PLUG, TIGHT, NO.1
96411-42500

L,2L#..LN5#,6#

OD=25

 7
11116A - PLUG, TIGHT, NO.1
96411-42500

L,2L#..LN5#,6#

OD=25

 7
11116B - PLUG, TIGHT, NO.2
96411-41200

L,2L#..LN5#,6#

OD=12

 4
11116C - PLUG, TIGHT, NO.3
96411-45000

L,2L#..LN5#,6#

OD=50

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-54011

L,2L#..LN5#,6#

O/S 0.05,O/S 0.05

 4
11122-54011

L,2L#..LN5#,6#

STD,STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54011

L,2L#..LN5#,6#

STD,STD

 4
11123-54011

L,2L#..LN5#,6#

O/S 0.05,O/S 0.05

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11001

L,2L#..LN5#,6#

長さ=11,外径=11,L=11,OD=11

 6
11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-08137

L,2L#..LN5#,6#

L=76.6,S=13&15

 3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08191

L,2L#..LN5#,6#

*8-1.25PX55-30

 3
11183 - PLUG, SEMICIRCULAR
11183-54011

L,2L#..LN5#,6#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-54050

L,2L..LN5#,6#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

L,2L#..LN5#,6#

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

L,2L#..LN5#,6#

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-54030

L,2L..LN5#,6#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

L,2L#..LN5#,6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

L,2L#..LN5#,6#

 1
Common parts
90119-08452
90179-06139
90540-19002
Linked diagrams
2201
