LN65-MD (1983)

Toyota Hilux

Production Nov 1983 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

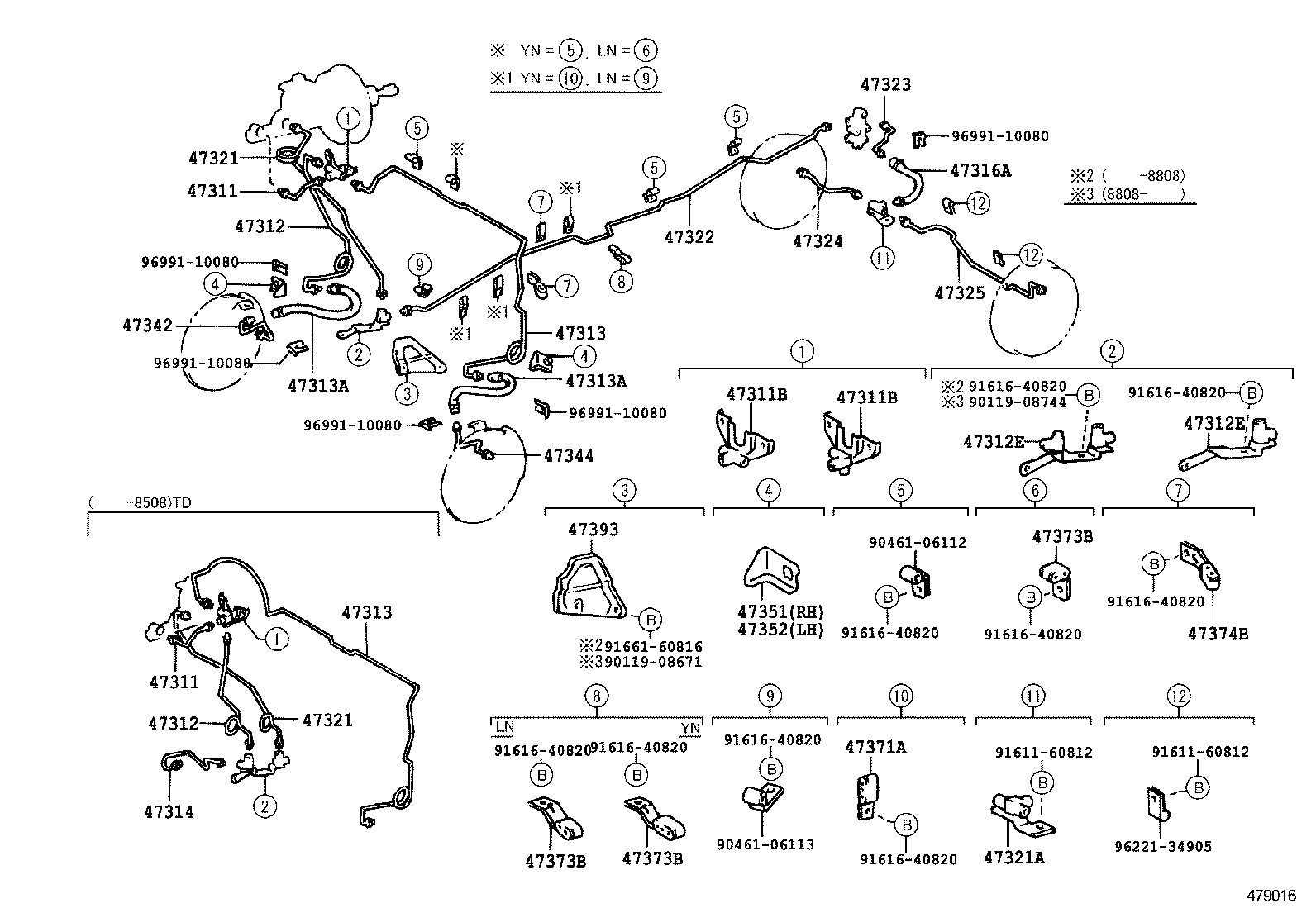

ILLUST NO. 1 OF 2(8311- )LN6#,YN6#

Click highlighted areas on diagram

diagram 47311 47311 47311B 47311B 47312 47312 47312E 47312E 47313 47313 47313A 47313A 47314 47316A 47321 47321 47321A 47322 47323 47324 47325 47342 47344 47351 47352 47371A 47373B 47373B 47373B 47374B 47393 9011908671 9011908744 9046106112 9046106113 9161160812 9161160812 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9166160816 9622134905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35350

LN6#,YN6#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-35350

LN6#,YN6#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

LN5#,6#,YN5#,6#..CBR,DSL

 1
90413-10111

LN5#,60,65,YN5#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

LN5#,6#,YN5#,6#..CBR,DSL

 1
90413-10111

LN5#,60,65,YN5#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35440

LN60,65,YN60,65..CBR,DSL

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35440

LN60,65,YN60,65..CBR,DSL

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN5#,60,65,YN5#,60,65..CBR,DSL

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN5#,60,65,YN5#,60,65..CBR,DSL

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35310

LN60,65,YN60,65..CBR,DSL

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35310

LN60,65,YN60,65..CBR,DSL

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02383

LN60,65,YN60,65

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02383

LN60,65,YN60,65

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34805

LN6#,YN6#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35210

LN5#,60,65,YN5#,60,65..CBR,DSL

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35210

LN5#,60,65,YN5#,60,65..CBR,DSL

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10162

LN6#,YN6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35300

LN65,YN65

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35060

LN6#,YN6#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35080

LN6#,YN6#

 1
47324-35110

LN60,65,YN60,65

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35090

LN6#,YN6#

 1
47325-35120

LN60,65,YN60,65

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35030

LN60,65,YN60,65

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35030

LN60,65,YN60,65

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35120

LN60,65,YN60,65

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47353-35080

LN60,65,YN60,65

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35010

LN5#,6#

DASH PANEL SIDE

 1
47372-35020

LN6#

SIDE RAIL SIDE

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35010

LN5#,6#

DASH PANEL SIDE

 1
47372-35020

LN6#

SIDE RAIL SIDE

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35010

LN5#,6#

DASH PANEL SIDE

 1
47372-35020

LN6#

SIDE RAIL SIDE

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35010

LN5#,6#,YN5#,6#

DASH PANEL SIDE

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35060

LN60,65..DSL

 1
Common parts
90119-08671
90119-08744
90461-06112
90461-06113
91611-60812
91616-40820
91661-60816
96221-34905
96991-10080

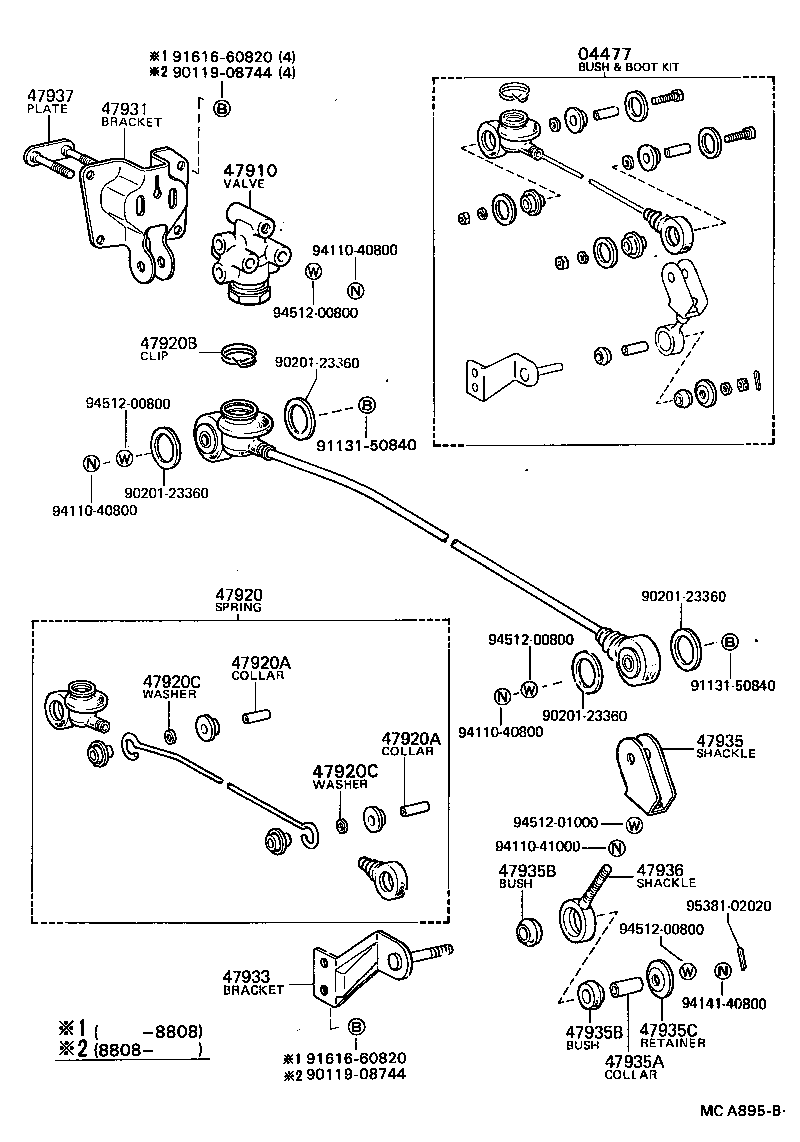

ILLUST NO. 2 OF 2(8311- )LN6#,YN6#

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908744 9011908744 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161660820 9161660820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LN60,65,YN60,65

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-35070

LN60,65,YN60,65

 1
47920 - SPRING ASSY, LOAD SENSING
47920-35050

LN6#,YN6#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LN6#,YN6#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LN6#,YN6#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LN6#,YN6#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LN6#,YN6#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LN6#,YN6#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-35050

LN6#,YN6#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-35040

LN6#,YN6#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LN6#,YN6#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LN6#,YN6#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LN6#,YN6#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LN6#,YN6#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LN6#,YN6#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35020

LN6#,YN6#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LN6#,YN6#

 1
Common parts
90119-08744
90201-23360
91131-50840
91616-60820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020
