LN65-MD (1983)

Toyota Hilux

Production Nov 1983 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )LN6#,YN6#

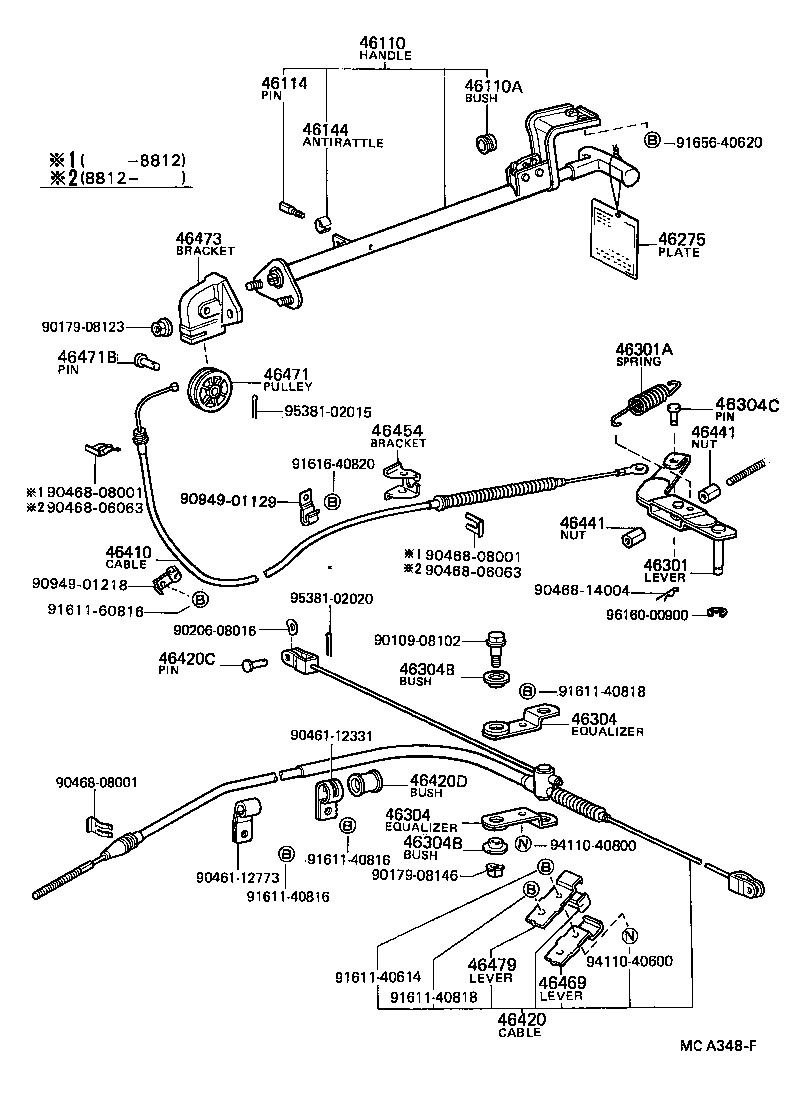

Click highlighted areas on diagram

diagram 46110 46110A 46114 46144 46275 46301 46301A 46304 46304 46304B 46304B 46304C 46410 46420 46420C 46420D 46441 46441 46454 46469 46471 46471B 46473 46479 9010908102 9017908123 9017908146 9020608016 9046112331 9046112773 9046806063 9046806063 9046808001 9046808001 9046808001 9046814004 9094901129 9094901218 9161140614 9161140816 9161140816 9161140818 9161140818 9161160816 9161640820 9165640620 9411040600 9411040800 9538102015 9538102020 9616000900
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46110-35150

LN5#,6#,YN56,6#

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LN5#,6#,YN5#,6#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LN5#,6#,YN5#,6#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LN5#,6#,YN5#,6#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35140

LN60,65,YN60,65

 1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90507-20011

LN6#,YN6#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

LN6#,YN6#

 2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

LN6#,YN6#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LN6#,YN6#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LN6#,YN6#

 2
46304C - PIN(FOR PARKING BRAKE EQUALIZER)
90240-08040

LN6#,YN6#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35290

LN65

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35250

LN60,65,YN60,65..T1,TW

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08028

LN6#,YN6#

L=21.5

 2
46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
90385-13051

LN6#,YN6#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

LN6#,YN6#

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

LN6#,YN6#

 2
46454 - BRACKET, CABLE RETAINER, FRONT
46454-35080

LN60,65,YN60,65

 1
46454-35080

LN6#,YN6#..T1,TW

 1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-35020

LN6#,YN6#

 1
46471 - PULLEY, WIRE
46471-20010

LN5#,6#,YN5#,6#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08070

LN5#,6#,YN5#,6#

 1
46473 - BRACKET, PULLEY
46473-35020

LN5#,6#,YN5#,6#

 1
46479 - LEVER, CABLE GUIDE SAPPORT, NO.2
46479-35010

LN6#,YN6#

 1
Common parts
90109-08102
90179-08123
90179-08146
90206-08016
90461-12331
90461-12773
90468-06063
90468-08001
90468-14004
90949-01129
90949-01218
91611-40614
91611-40816
91611-40818
91611-60816
91616-40820
91656-40620
94110-40600
94110-40800
95381-02015
95381-02020
96160-00900
