LN61V-MS (1985)
Toyota Hilux
Production
Aug 1985
-
Mar 1989
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )LN61,YN61

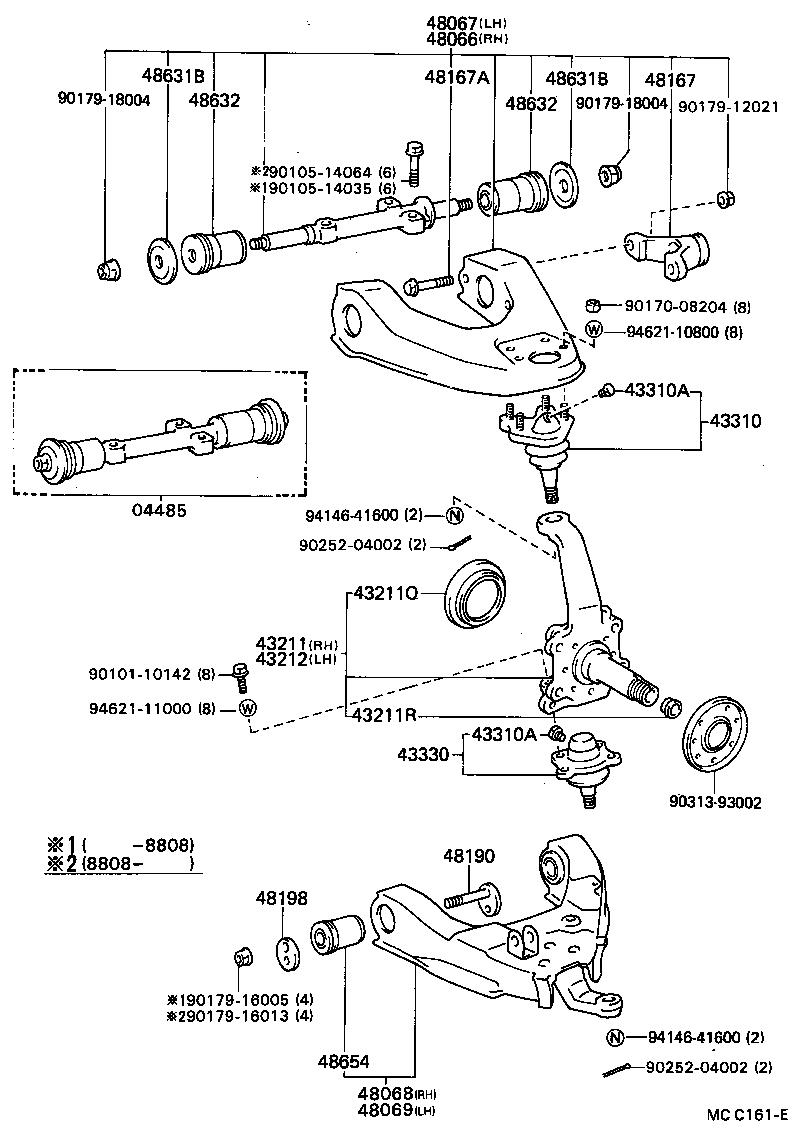

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-35040 |
LN61,YN61 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-35020 |
LN61,YN61 |
1 | ||
| 43211Q - SEAL, OIL (FOR STEERING KNUCKLE) | ||||
| 90316-60002 |
LN61,YN61 |
2 | ||
| 90316-60001 |
LN61,YN61 |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90999-70068 |
LN61,YN61 INNER |
2 | ||
| 90381-30003 |
LN61,YN61 OUTER |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-35010 |
LN61,YN61 |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43350-39045 |
LN61,YN61 RH |
1 | ||
| 43360-39075 |
LN61,YN61 LH |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LN5#,61,YN5#,61 |
2 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LN5#,61,YN5#,61 |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-39195 |
LN61,YN61 RH |
1 | ||
| 43340-39175 |
LN61,YN61 LH |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-35070 |
LN61,YN61 |
1 | ||
| 48066-35100 |
LN61,YN61 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-35030 |
LN61,YN61 |
1 | ||
| 48067-35040 |
LN61,YN61 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-35040 |
LN61,YN61 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-35040 |
LN61,YN61 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-35010 |
LN61,YN61 |
2 | ||
| 48106-35011 |
LN61,YN61 |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12112 |
LN61,YN61 |
4 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-35010 |
LN61,YN61 |
4 | ||
| 48190-35020 |
LN61,YN61 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-35010 |
LN61,YN61 |
4 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02066 |
LN61,YN61 RR |
2 | ||
| 90948-02065 |
LN61,YN61 FR |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02066 |
LN61,YN61 RR |
2 | ||
| 90948-02065 |
LN61,YN61 FR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-26010 |
LN61,YN61 RR |
2 | ||
| 48632-26010 |
LN61,YN61 FR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-26010 |
LN61,YN61 RR |
2 | ||
| 48632-26010 |
LN61,YN61 FR |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-35011 |
LN61,YN61 |
4 | ||
| 48061-35010 |
LN61,YN61 |
4 | ||
| Common parts | ||||
| 90101-10142 | ||||
| 90105-14035 | ||||
| 90105-14064 | ||||
| 90170-08204 | ||||
| 90179-12021 | ||||
| 90179-16005 | ||||
| 90179-16013 | ||||
| 90179-18004 | ||||
| 90252-04002 | ||||
| 90313-93002 | ||||
| 94146-41600 | ||||
| 94621-10800 | ||||
| 94621-11000 | ||||
