LN60V-MSX (1984)

Toyota Hilux

Production Nov 1984 - Aug 1985
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8508)V

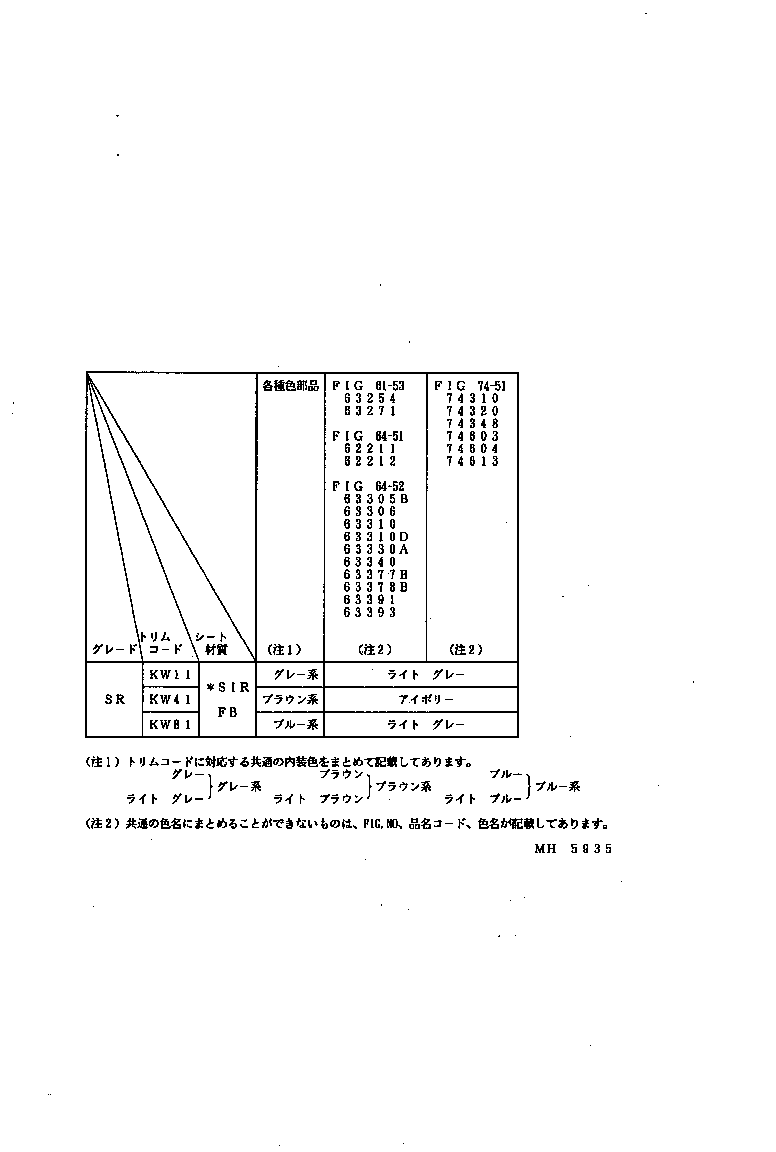

Click highlighted areas on diagram

diagram 6153 62211 62212 63254 63271 63305B 63306 63310 63310D 63330A 63340 63377B 63378B 63391 63393 6451 6452 74310 74320 74348 7451 74603 74604 74613
Part # Description Qty Price
63310D - CLIP, ROOF HEADLINING
90467-1004403

LN5#,6#,YN56,6#

LIGHT GRAY,GRAY,TRIM1#,8#

 4
90467-1004408

LN5#,6#,YN5#,6#

IVORY,IVORY,TRIM4#

 4
74310 - VISOR ASSY, RH
74310-8911803

LN6#,YN6#

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74310-8911808

LN6#,YN6#

IVORY,IVORY,TRIM4#

 1
74320 - VISOR ASSY, LH
74310-8911408

LN5#,6#,YN5#,6#

IVORY,IVORY,TRIM4#

 1
74310-8911403

LN5#,6#,YN5#,6#

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74348 - HOLDER, VISOR
74348-1401023

LN5#,6#,YN56,6#

LIGHT GRAY,GRAY,TRIM1#,8#

 2
74348-1401018

LN5#,6#,YN5#,6#

IVORY,IVORY,TRIM4#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74611-8910123

LN5#,6#,YN56,6#

LIGHT GRAY,GRAY,TRIM1#,8#

 1
Linked diagrams
6153
6451
6452
7451
