LN60V-MSX (1984)
Toyota Hilux
(8311-8508)LN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36031 |
LN6#,YN6# |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN6#,YN6# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN6#,YN6# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
LN6#,YN6#..CBR,DSL,TD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35110 |
LN6#,YN6# |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
YN65..DLX;LN60,65,YN60 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
LN60,65,YN60,65 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
YN65..DLX;LN60,65,YN60 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35170 |
LN6#,YN6# |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35060 |
YN65;LN60,65,YN60..SR W/POWER STEERING |
1 | ||
| 45312-35090 |
LN60,65,YN60,65 |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
LN6#,YN6# |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-36040 |
LN6#,YN6# 厚さ=0.092−0.108,T=0.10 |
1 | ||
| 45323-36010 |
LN6#,YN6# 厚さ=0.045−0.055,T=0.05 |
1 | ||
| 45323-36020 |
LN6#,YN6# 厚さ=0.065−0.075,T=0.07 |
1 | ||
| 45323-36080 |
LN6#,YN6# 厚さ=0.082−0.098,T=0.09 |
1 | ||
| 45323-36030 |
LN6#,YN6# 厚さ=0.072−0.088,T=0.08 |
1 | ||
| 45323-36070 |
LN6#,YN6# 厚さ=0.055−0.065,T=0.06 |
1 | ||
| 45323-36050 |
LN6#,YN6# 厚さ=0.185−0.215,T=0.20 |
1 | ||
| 45323-36060 |
LN6#,YN6# 厚さ=0.485−0.515,T=0.50 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36020 |
LN6#,YN6# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36010 |
LN6#,YN6#..CBR,DSL,TD |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
YN65..DLX;LN60,65,YN60 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LN6#,YN6#..CBR,DSL,TD |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45356-36010 |
LN6#,YN6# 厚さ=2.20,T=2.20 |
1 | ||
| 45352-36010 |
LN6#,YN6# 厚さ=2.00,T=2.00 |
1 | ||
| 45353-36010 |
LN6#,YN6# 厚さ=2.05,T=2.05 |
1 | ||
| 45354-36010 |
LN6#,YN6# 厚さ=2.10,T=2.10 |
1 | ||
| 45355-36010 |
LN6#,YN6# 厚さ=2.15,T=2.15 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
LN6#,YN6# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LN6#,YN6#..CBR,DSL,TD |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35120 |
LN6#,YN6# |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90119-10069 | ||||
| 90170-12161 | ||||
| 90949-01120 | ||||
| 91611-61022 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||

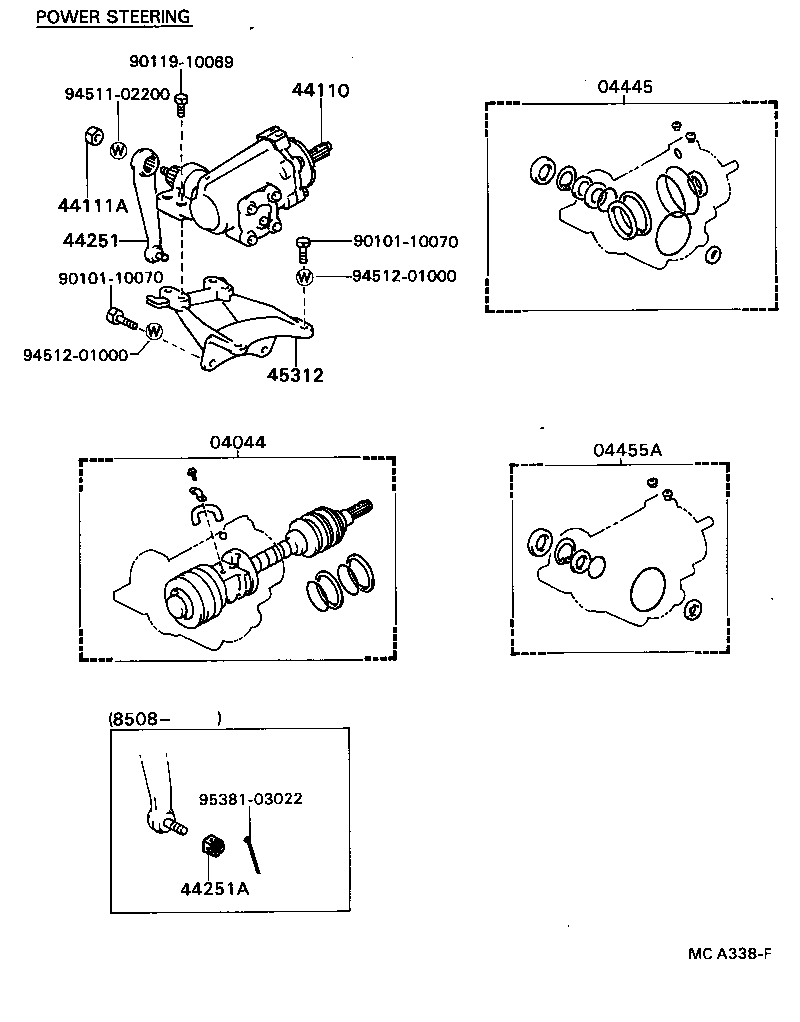

(8311-8608)YN65 ; (8311-8608)SR,SSR ; (8608-)LN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-35050 |
YN65;LN6#,YN60..SR |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-35020 |
YN65;LN60,65,YN60..SR |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-35020 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35040 |
YN65;LN6#,YN60..SR |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-35140 |
YN65;LN60,65,YN60..SR |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35060 |
YN65;LN60,65,YN60..SR W/POWER STEERING |
1 | ||
| 45312-35090 |
LN60,65,YN60,65 |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90119-10069 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
| 95381-03022 | ||||

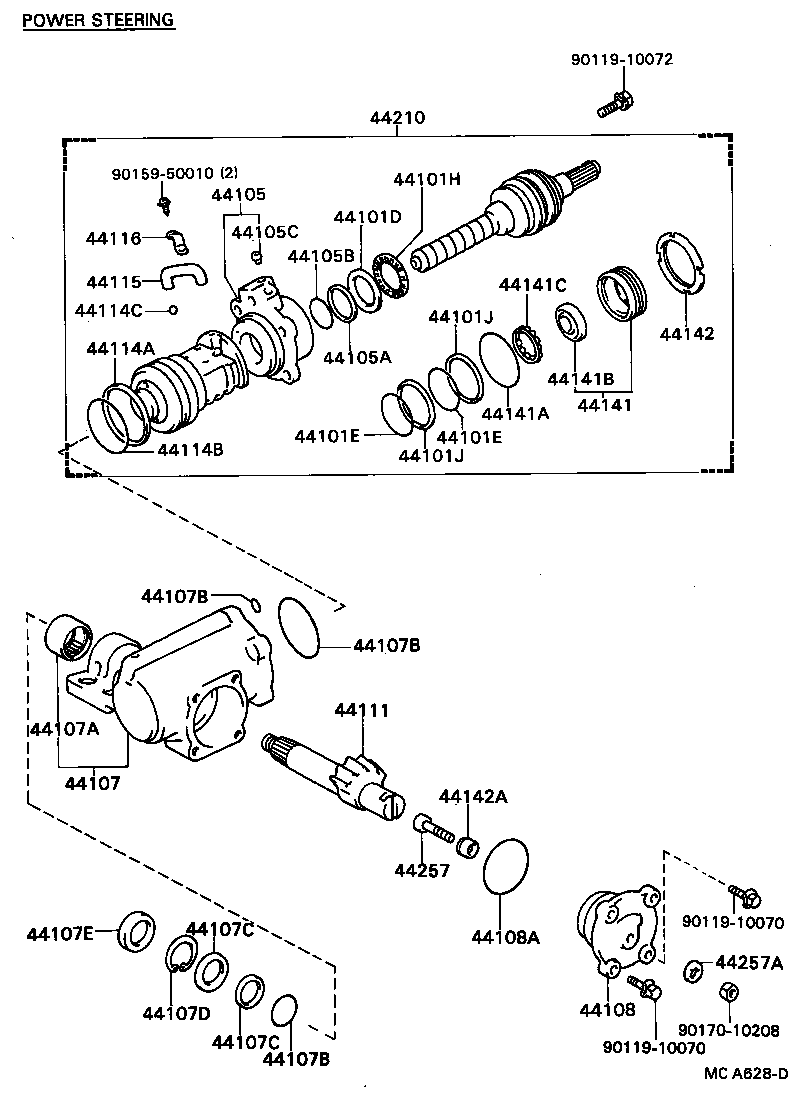

(8311-8608)YN65 ; (8311-8608)SR,SSR ; (8608-)LN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
YN65;LN6#,YN60..SR |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
YN65;LN6#,YN60..SR |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
YN65;LN6#,YN60..SR |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
YN65;LN6#,YN60..SR |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30060 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
YN65;LN6#,YN60,61..SR,SSR |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35040 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
YN65;LN6#,YN60,61..SR,SSR 内径=65.0,外径=70.0,OD=70 |
1 | ||
| 96711-19010 |
YN65;LN6#,YN60,61..SR,SSR 外径=13.6,内径=9.8,OD=13 |
1 | ||
| 90301-35001 |
YN65;LN6#,YN60..SR 外径=43.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
YN65;LN6#,YN60,61..SR,SSR 内径=65.0,外径=70.0,OD=70 |
1 | ||
| 96711-19010 |
YN65;LN6#,YN60,61..SR,SSR 外径=13.6,内径=9.8,OD=13 |
1 | ||
| 90301-35001 |
YN65;LN6#,YN60..SR 外径=43.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
YN65;LN6#,YN60,61..SR,SSR 内径=65.0,外径=70.0,OD=70 |
1 | ||
| 96711-19010 |
YN65;LN6#,YN60,61..SR,SSR 外径=13.6,内径=9.8,OD=13 |
1 | ||
| 90301-35001 |
YN65;LN6#,YN60..SR 外径=43.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
YN65;LN6#,YN60..SR 外径=35.7 |
1 | ||
| 90562-32001 |
YN65;LN60,65,YN60..SR 内径=32,外径=42,OD=42 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
YN65;LN6#,YN60..SR 外径=35.7 |
1 | ||
| 90562-32001 |
YN65;LN60,65,YN60..SR 内径=32,外径=42,OD=42 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60010 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
YN65;LN6#,YN60,61..SR,SSR |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60010 |
YN65;LN6#,YN60,61..SR,SSR |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-60010 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
YN65;LN6#,YN60..SR |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-35050 |
YN65;LN6#,YN60..SR |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60010 |
YN65;LN60,65,YN60..SR |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
YN65;LN6#,YN60,61..SR,SSR |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
