LN60V-MSX (1984)

Toyota Hilux

Production Nov 1984 - Aug 1985
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311-8608)LN6#..SR,SSR ; (8608- )LN6#

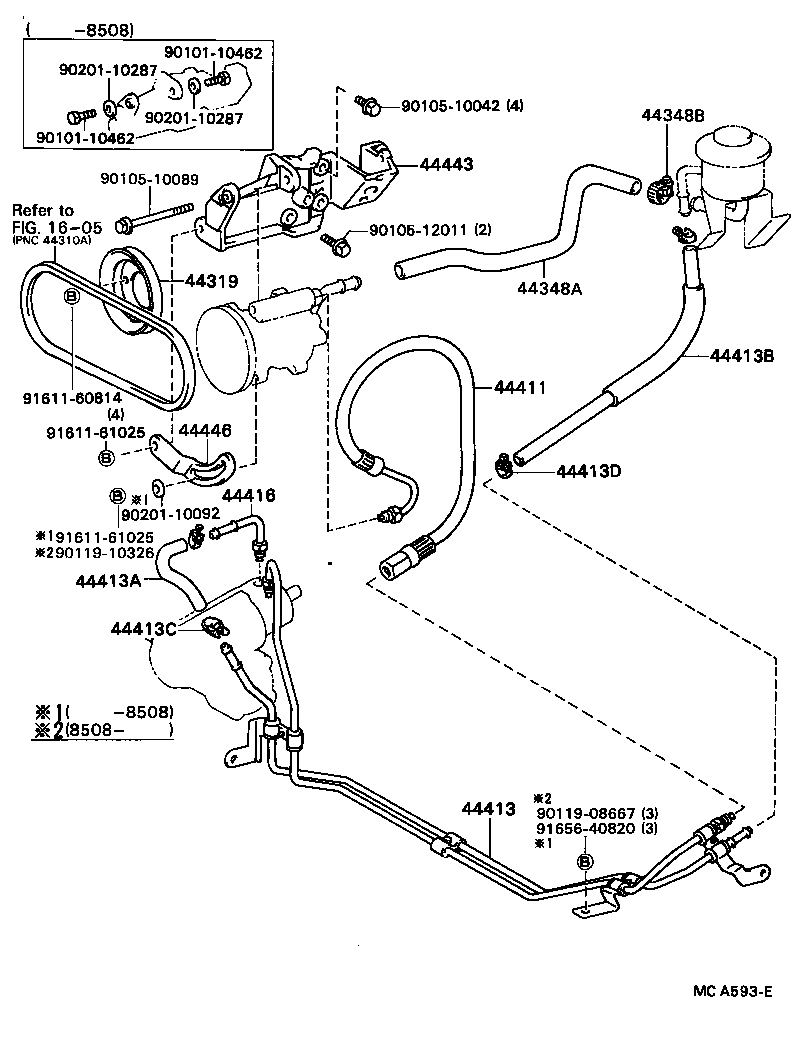

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44411 44413 44413A 44413B 44413C 44413D 44416 44443 44446 9010110462 9010110462 9010510042 9010510089 9010512011 9011908667 9011910326 9020110092 9020110287 9020110287 9161160814 9161161025 9161161025 9165640820
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-30020

LN6#..SR

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35070

LN60..TD

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LN6#..SR,SSR

 2
44411 - HOSE, PRESSURE FEED
44411-35040

LN6#..SR

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-35020

LN60,65..SR

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18079

YN65;LN60,65,YN60..SR

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90447-18020

LN6#..SR,SSR

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

YN65;LN6#,YN60,61..SR,SSR

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

YN65;LN6#,YN60,61..SR,SSR

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35040

YN65;LN60,65,YN60..SR

 1
44443 - BRACKET, PUMP
44443-22020

LN6#..SR

 1
44446 - STRUT, ADJUSTING
44446-30050

LN6#..SR

 1
Common parts
90101-10462
90105-10042
90105-10089
90105-12011
90119-08667
90119-10326
90201-10092
90201-10287
91611-60814
91611-61025
91656-40820
Linked diagrams
1605
