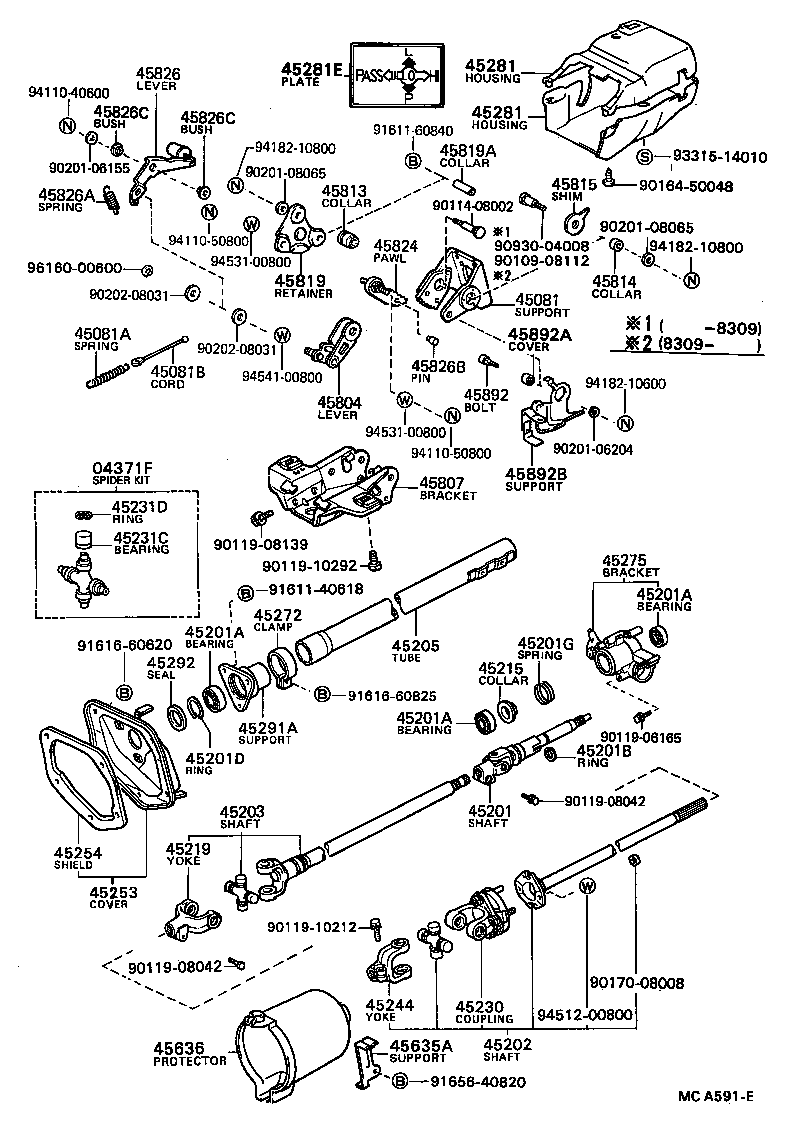

LN60V-MSX (1984)
Toyota Hilux
(8311-8508)SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
LN6#,YN6# |
2 | ||
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-35010 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
LN6#,YN6#..SR,SSR |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
LN6#,YN6#..SR,SSR 長さ=107.5 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
LN6#,YN6#..SR,SSR CTR |
1 | ||
| 90363-18001 |
LN6#,YN6#..SR,SSR UPR |
1 | ||
| 90363-30007 |
LN6#,YN6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
LN6#,YN6#..SR,SSR CTR |
1 | ||
| 90363-18001 |
LN6#,YN6#..SR,SSR UPR |
1 | ||
| 90363-30007 |
LN6#,YN6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
LN6#,YN6#..SR,SSR CTR |
1 | ||
| 90363-18001 |
LN6#,YN6#..SR,SSR UPR |
1 | ||
| 90363-30007 |
LN6#,YN6# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN5#,6#,YN5#,6# 厚さ=1.20,LWR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35080 |
LN6#,YN6# |
1 | ||
| 45220-35090 |
YN65;LN6#,YN60..SR W/POWER STEERING |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35020 |
LN6#,YN60..SR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35210 |
LN6#,YN60..SR |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-35010 |
LN6#,YN6# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35040 |
LN6#,YN6# |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
LN6#,YN6# |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
LN6#,YN6# T=1.20 |
4 | ||
| 90521-22012 |
LN6#,YN6# T=1.25 |
4 | ||
| 90521-22013 |
LN6#,YN6# T=1.30 |
4 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
LN6#,YN6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35060 |
LN6#,YN6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35020 |
LN6#,YN6#..CBR,DSL,TD |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
LN6#,YN6#..CBR,DSL,TD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28040 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-35140 |
LN6#,YN60,61..SR,SSR LWR |
1 | ||
| 45286-35240 |
LN6#,YN60,61..SR,SSR UPR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-35140 |
LN6#,YN60,61..SR,SSR LWR |
1 | ||
| 45286-35240 |
LN6#,YN60,61..SR,SSR UPR |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
LN5#,6#,YN5#,6# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
LN6#,YN6# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# |
1 | ||
| 45635A - SUPPORT, INTER LINK JOINT PROTECTOR | ||||
| 45635-35011 |
LN6#,YN6# |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-35011 |
LN6#,YN6# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-35080 |
LN6#,YN60..SR |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
LN6#,YN6#..SR,SSR 外径=18.003−18.010,OD=18.003-18.010 |
1 | ||
| 45813-22010 |
LN6#,YN6#..SR,SSR 外径=17.996−18.003,OD=17.996-18.003 |
1 | ||
| 45813-22040 |
LN6#,YN6#..SR,SSR 外径=18.017−18.024,OD=18.017-18.024 |
1 | ||
| 45813-22030 |
LN6#,YN6#..SR,SSR 外径=18.010−18.017,OD=18.010-18.017 |
1 | ||
| 45813-22050 |
LN6#,YN6#..SR,SSR 外径=17.989−17.996,OD=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
LN6#,YN6#..SR,SSR 外径=17.982−18.000,OD=17.982-18.000 |
1 | ||
| 45814-22020 |
LN6#,YN6#..SR,SSR 外径=18.000−18.018,OD=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22080 |
LN6#,YN6#..SR,SSR 厚さ=0.8,T=0.8 |
2 | ||
| 45815-22090 |
LN6#,YN6#..SR,SSR 厚さ=1.4,T=1.4 |
2 | ||
| 45815-22100 |
LN6#,YN6#..SR,SSR 厚さ=1.8,T=1.8 |
2 | ||
| 45815-22070 |
LN6#,YN6#..SR,SSR 厚さ=0.5,T=0.5 |
2 | ||
| 45815-22060 |
LN6#,YN6#..SR,SSR 厚さ=0.2,T=0.2 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45809-30021 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-35010 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LN6#,YN6#..SR,SSR |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LN6#,YN6#..SR,SSR |
2 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
LN6#,YN6#..SR,SSR |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-35020 |
LN6#,YN6#..SR,SSR |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06165 | ||||
| 90119-08042 | ||||
| 90119-08139 | ||||
| 90119-10212 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 90201-06155 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90202-08031 | ||||
| 90930-04008 | ||||
| 91611-40618 | ||||
| 91611-60840 | ||||
| 91616-60620 | ||||
| 91616-60825 | ||||
| 91656-40820 | ||||
| 93315-14010 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||
