LN60V-MSX (1984)

Toyota Hilux

Production Nov 1984 - Aug 1985
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )TD

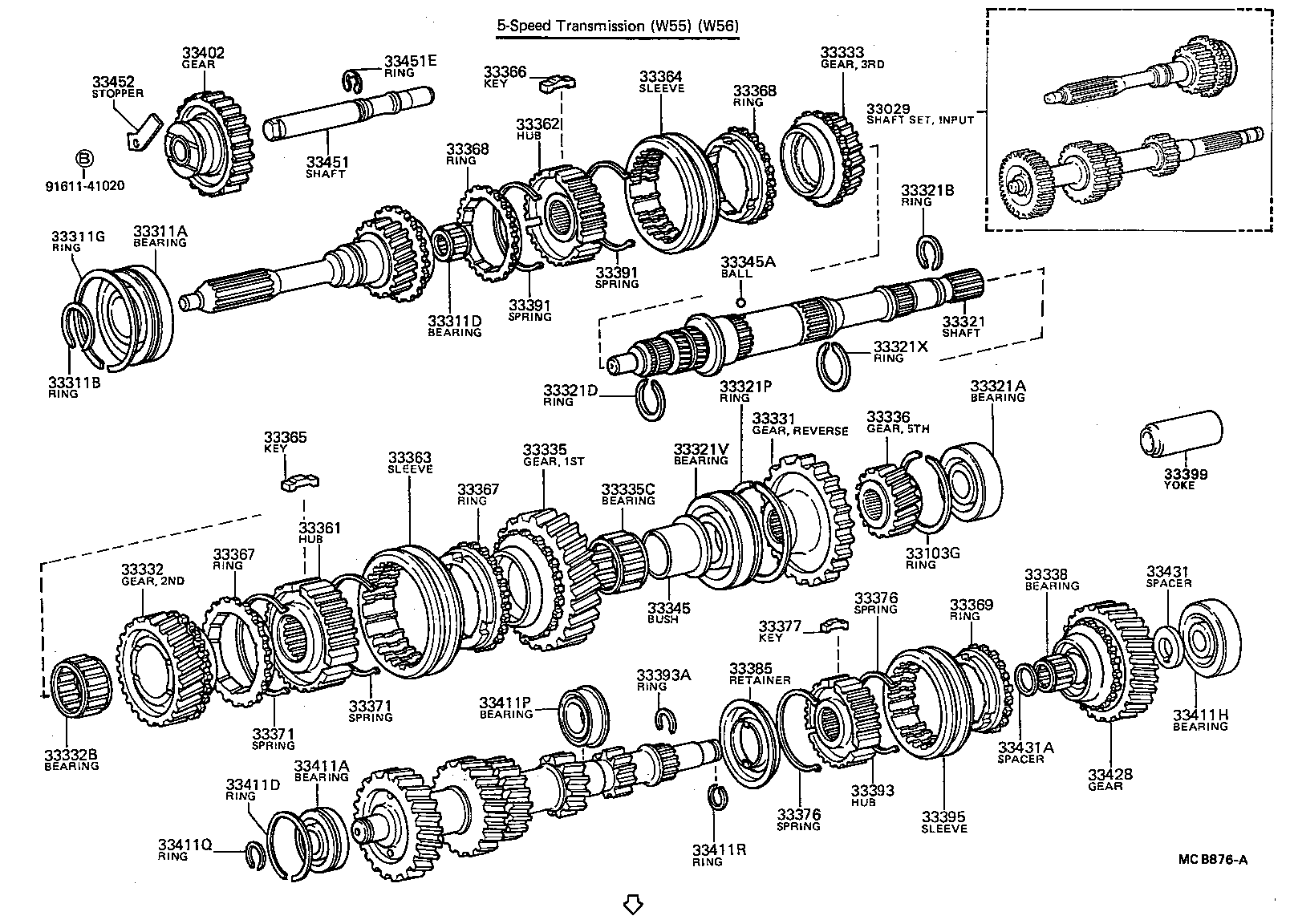

Click highlighted areas on diagram

diagram 33029 33103G 33311A 33311B 33311D 33311G 33321 33321A 33321B 33321D 33321P 33321V 33321X 33331 33332 33332B 33333 33335 33335C 33336 33338 33345 33345A 33361 33362 33363 33364 33365 33366 33367 33367 33368 33368 33369 33371 33371 33376 33376 33377 33385 33391 33391 33393 33393A 33395 33399 33402 33411A 33411D 33411H 33411P 33411Q 33411R 33428 33431 33431A 33451 33451E 33452 9161141020
Part # Description Qty Price
33029 - SHAFT SET, INPUT
33029-28010

LN55,6#

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-32016

LN55,6#,YN6#

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-33169

LN60,61,YN5#..(4H,5F)..(CBR,TD)

厚さ=2.10,ﾏｰｸ 2,T=2.10

 1
90520-33171

LN60,61,YN5#..(4H,5F)..(CBR,TD)

厚さ=2.20,ﾏｰｸ 4,T=2.20

 1
90520-33168

LN60,61,YN5#..(4H,5F)..(CBR,TD)

厚さ=2.05,ﾏｰｸ 1,T=2.05

 1
90520-33170

LN60,61,YN5#..(4H,5F)..(CBR,TD)

厚さ=2.15,ﾏｰｸ 3,T=2.15

 1
90520-33172

LN60,61,YN5#..(4H,5F)..(CBR,TD)

厚さ=2.25,ﾏｰｸ 5,T=2.25

 1
90520-33107

LN60,61,YN5#..(4H,5F)..(CBR,TD)

厚さ=2.30−2.35,ﾏｰｸ 11,T=2.30

 1
33311D - BEARING, INPUT SHAFT
90361-06047

LN55,6#,YN6#

 14
33321 - SHAFT, OUTPUT
33321-35110

LN6#,YN6#

 1
33369 - RING, SYNCHRONIZER, NO.3
33367-14010

LN5#,6#,YN5#,6#..5F,5H

 1
33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33371-14010

LN5#,6#,YN5#,6#..5F,5H

 2
33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33371-14010

LN5#,6#,YN5#,6#..5F,5H

 2
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-28010

LN55,6#,YN6#

 1
33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
90520-49222

LN5#,6#,YN5#,6#..5F,5H

厚さ=1.07,外径=55.6

 1
33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
90520-23089

LN5#,6#,YN5#,6#..5F,5H

厚さ=2.10−2.15,T=2.10

 1
90520-23090

LN5#,6#,YN5#,6#..5F,5H

厚さ=2.20−2.25,T=2.20

 1
90520-23144

LN5#,6#,YN5#,6#..5F,5H

厚さ=2.25−2.30,T=2.25

 1
90520-23143

LN5#,6#,YN5#,6#..5F,5H

厚さ=2.15−2.20,T=2.15

 1
90520-23145

LN5#,6#,YN5#,6#..5F,5H

厚さ=2.30−2.35,T=2.35

 1
90520-23115

LN5#,6#,YN5#,6#..5F,5H

厚さ=2.05−2.10,T=2.05

 1
Common parts
91611-41020
