LN60V-MSX (1984)
Toyota Hilux
Production
Nov 1984
-
Aug 1985
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8311- )YN5#,6#..5F,5H ; (8410-8508)LPG

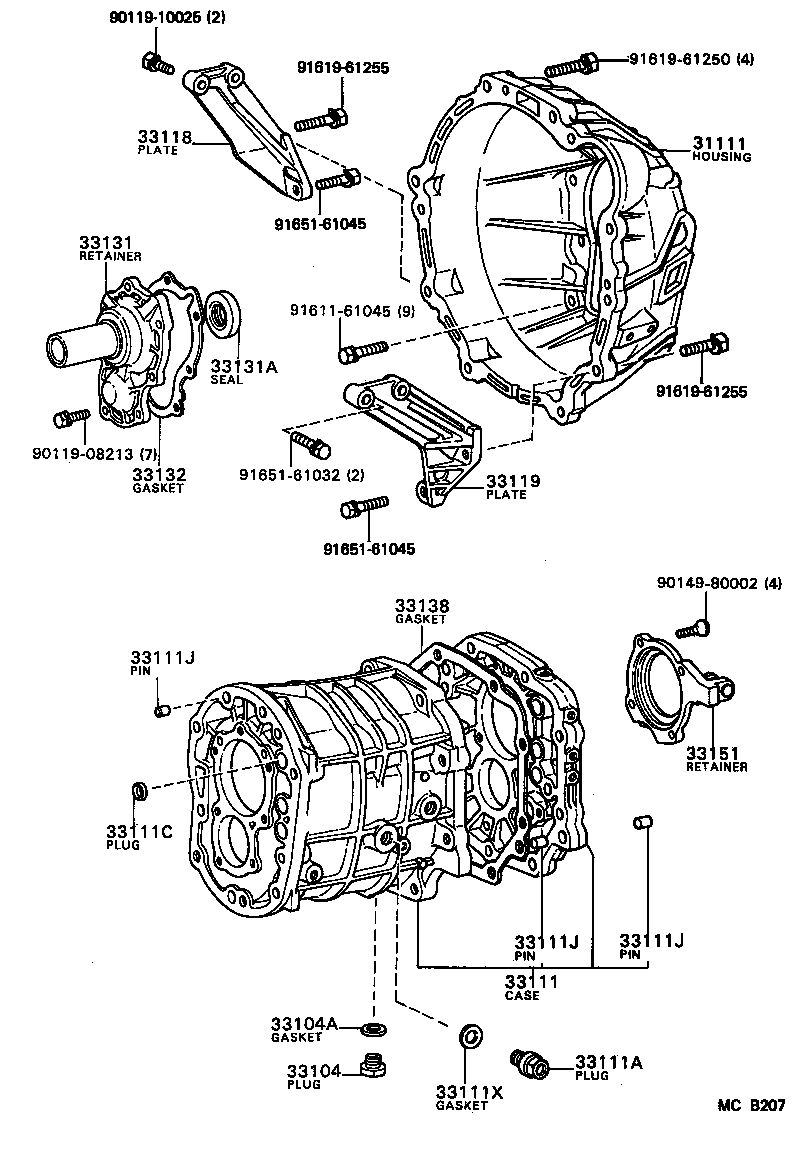

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22111 |
LN50,55,6# |
1 | ||
| 31111-30180 |
YN5#,6#..5F,5H |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LN50,55,6#,YN5#,6# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
LN55,6#,YN56,6# |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LN5#,6#,YN5#,6#..5F,5H 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN5#,6#,YN5#,6#..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN5#,6#,YN5#,6#..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
LN55,6#,YN56,6# |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LN50,55,6# |
1 | ||
| 33118-28010 |
YN5#,6#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YN5#,6#..MTM |
1 | ||
| 33119-25020 |
LN5#,6#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-28010 |
LN55,6#,YN6# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LN5#,6#,YN5#,6#..5F,5H |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10025 | ||||
| 90119-10263 | ||||
| 90119-12168 | ||||
| 90149-80002 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91651-61045 | ||||
| 91651-61055 | ||||
| 91659-61260 | ||||
(8411- )TD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22111 |
LN50,55,6# |
1 | ||
| 31111-30180 |
YN5#,6#..5F,5H |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LN50,55,6#,YN5#,6# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
LN55,6#,YN56,6# |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LN5#,6#,YN5#,6#..5F,5H 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN5#,6#,YN5#,6#..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN5#,6#,YN5#,6#..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN5#,6#,YN5#,6#..5F,5H 長さ=16,外径=12 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
LN55,6#,YN56,6# |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LN50,55,6# |
1 | ||
| 33118-28010 |
YN5#,6#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YN5#,6#..MTM |
1 | ||
| 33119-25020 |
LN5#,6#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-28010 |
LN55,6#,YN6# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LN5#,6#,YN5#,6#..5F,5H |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90119-10025 | ||||
| 90149-80002 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61032 | ||||
| 91651-61045 | ||||
