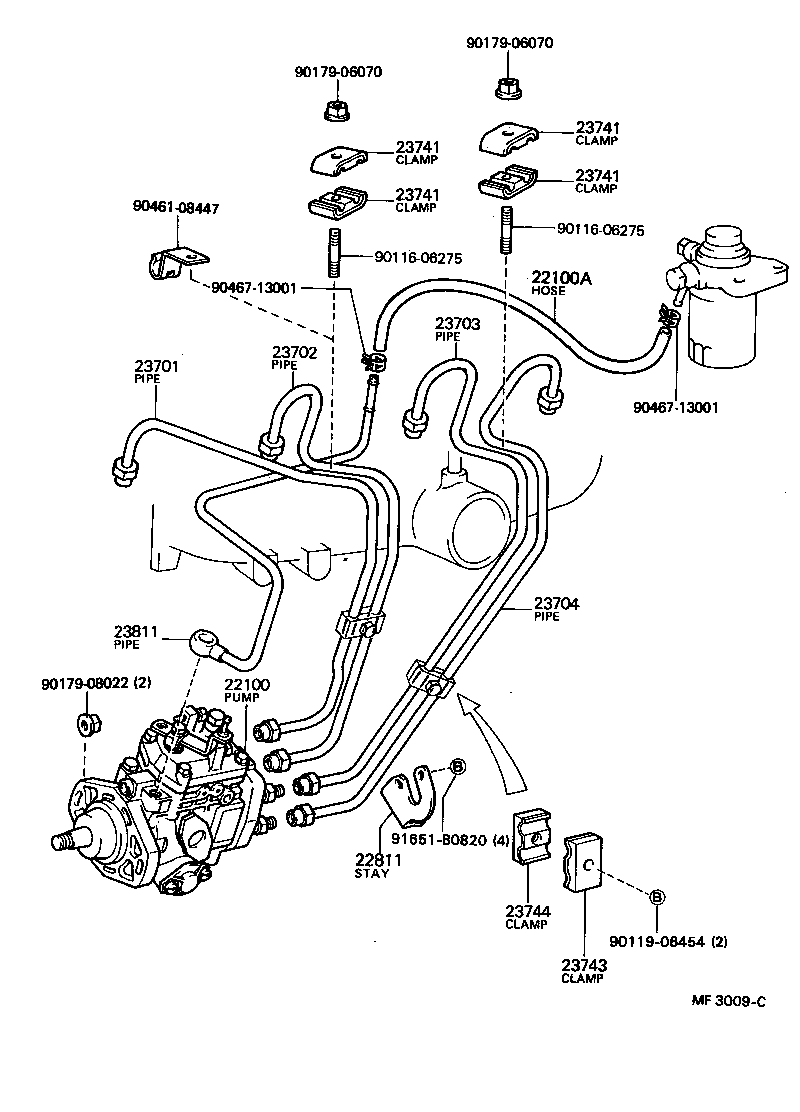

LN60V-MSX (1984)
Toyota Hilux
(8411- )2LT ; (8508- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-54261 |
2LT..LN60 |
1 | ||
| 22100-54340 |
2L..LN6#..SR |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-08040 |
L,2L#..LN5#,6# *H,L=320,内径=7.6 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54040 |
L,2L#..LN5#,6# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54082 |
L,2L#..LN5#,6# |
1 | ||
| 23701-54051 |
L,2L..LN5#,6# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54050 |
L,2L..LN5#,6# |
1 | ||
| 23702-54081 |
L,2L#..LN5#,6# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54050 |
L,2L..LN5#,6# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54050 |
L,2L..LN5#,6# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23741-54010 |
L,2L#..LN5#,6# |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23742-54010 |
L,2L#..LN5#,6# |
2 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-54051 |
L,2L..LN5#,6# |
1 | ||
| Common parts | ||||
| 90116-06275 | ||||
| 90119-06454 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90461-08447 | ||||
| 90467-13001 | ||||
| 91651-B0820 | ||||
(8311-8508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-54261 |
2LT..LN60 |
1 | ||
| 22100-54340 |
2L..LN6#..SR |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-08040 |
L,2L#..LN5#,6# *H,L=320,内径=7.6 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54040 |
L,2L#..LN5#,6# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54082 |
L,2L#..LN5#,6# |
1 | ||
| 23701-54051 |
L,2L..LN5#,6# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54050 |
L,2L..LN5#,6# |
1 | ||
| 23702-54081 |
L,2L#..LN5#,6# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54050 |
L,2L..LN5#,6# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54050 |
L,2L..LN5#,6# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2L#..LN5#,6# |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23741-54010 |
L,2L#..LN5#,6# |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23742-54010 |
L,2L#..LN5#,6# |
2 | ||
| 23802F - HOSE, FUEL | ||||
| 95332-08020 |
L,2L..LN5#,6# COLD SPEC,NO.1,L=200 |
1 | ||
| 95332-06030 |
L,2L..LN5#,6# COLD SPEC,NO.2,*H,L=260 |
1 | ||
| 23802F - HOSE, FUEL | ||||
| 95332-08020 |
L,2L..LN5#,6# COLD SPEC,NO.1,L=200 |
1 | ||
| 95332-06030 |
L,2L..LN5#,6# COLD SPEC,NO.2,*H,L=260 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-54051 |
L,2L..LN5#,6# |
1 | ||
| 23910 - HEATER ASSY, FUEL | ||||
| 23910-54030 |
L,2L..LN5#,6# COLD SPEC |
1 | ||
| Common parts | ||||
| 90116-06275 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90461-08447 | ||||
| 90464-00148 | ||||
| 90467-11009 | ||||
| 90467-13001 | ||||
| 91611-40620 | ||||
| 91651-B0820 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
