LN60V-MSX (1984)
Toyota Hilux
Production
Nov 1984
-
Aug 1985
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )2LT

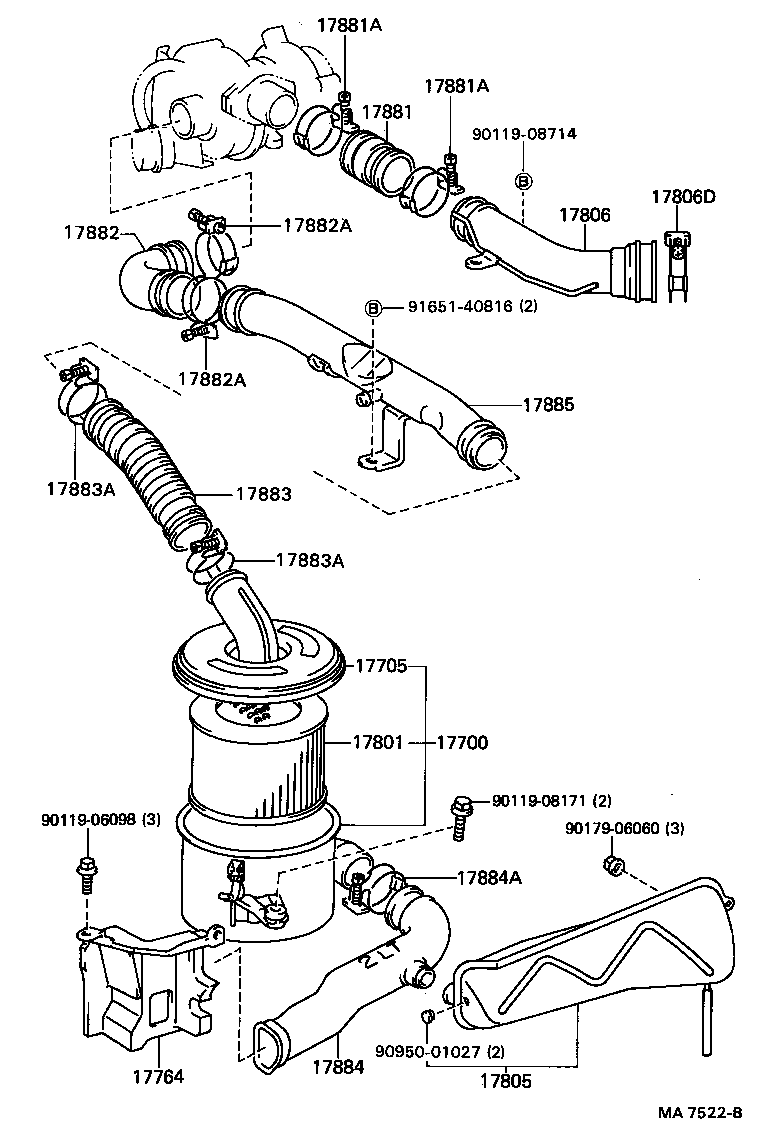

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54300 |
L,2L..LN5#,6# COLD SPEC |
1 | ||
| 17700-54330 |
2LT..LN60 |
1 | ||
| 17700-54180 |
L,2L..LN5#,6# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54032 |
L,2L..LN5#,6# |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-89104 |
L,2L#..LN5#,6# |
1 | ||
| 53207-89105 |
L,2L#..LN5#,6# COLD SPEC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54030 |
L,2L..LN5#,6# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-89104 |
L,2L..LN5#,6# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54190 |
L,2L..LN5#,6# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L,2L..LN5#,6# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L,2L..LN5#,6# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-89101 |
L,2L..LN5#,6# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L,2L#..LN5#,6# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L,2L#..LN5#,6# |
2 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90119-08171 | ||||
| 90119-08714 | ||||
| 90179-06060 | ||||
| 90950-01027 | ||||
| 91651-40816 | ||||
