LN60V-MSX (1984)
Toyota Hilux
Production
Nov 1984
-
Aug 1985
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

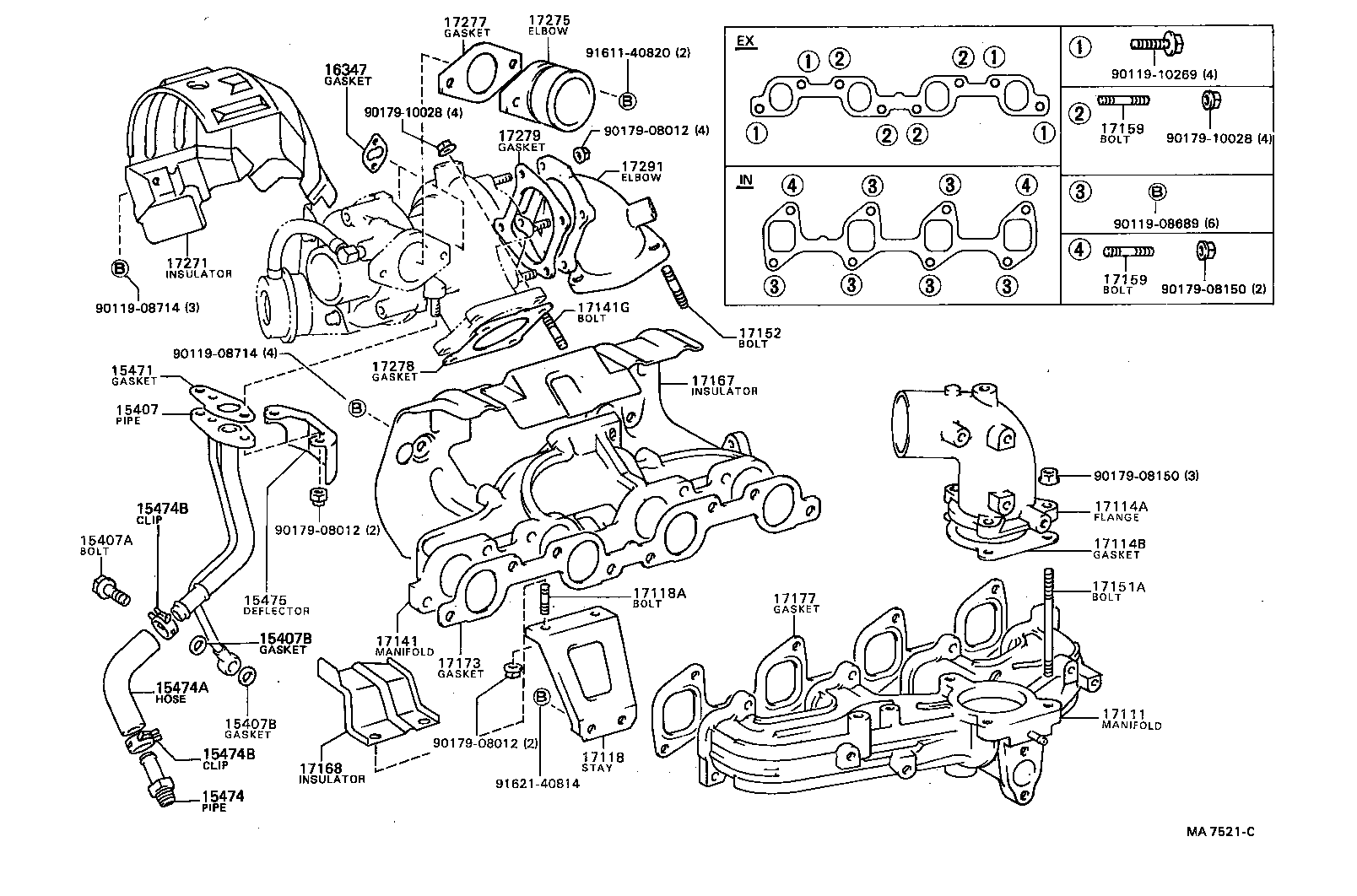

ILLUST NO. 1 OF 2(8411- )2LT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54030 |
L,2L..LN5#,6# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54040 |
L,2L..LN5#,6# |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
L,2L#..LN5#,6# L=47.4,S=14&22 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10091 |
L,2L..LN5#,6# EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-08053 |
L,2L#..LN5#,6# INTAKE MANIFOLD SIDE |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10091 |
L,2L..LN5#,6# EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-08053 |
L,2L#..LN5#,6# INTAKE MANIFOLD SIDE |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-54011 |
L,2L..LN5#,6# |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-54011 |
L,2L..LN5#,6# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54011 |
L,2L..LN5#,6# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54011 |
L,2L..LN5#,6# |
1 | ||
| Common parts | ||||
| 90119-08689 | ||||
| 90119-08714 | ||||
| 90119-10269 | ||||
| 90179-08012 | ||||
| 90179-08150 | ||||
| 90179-10028 | ||||
| 91611-40820 | ||||
| 91621-40814 | ||||

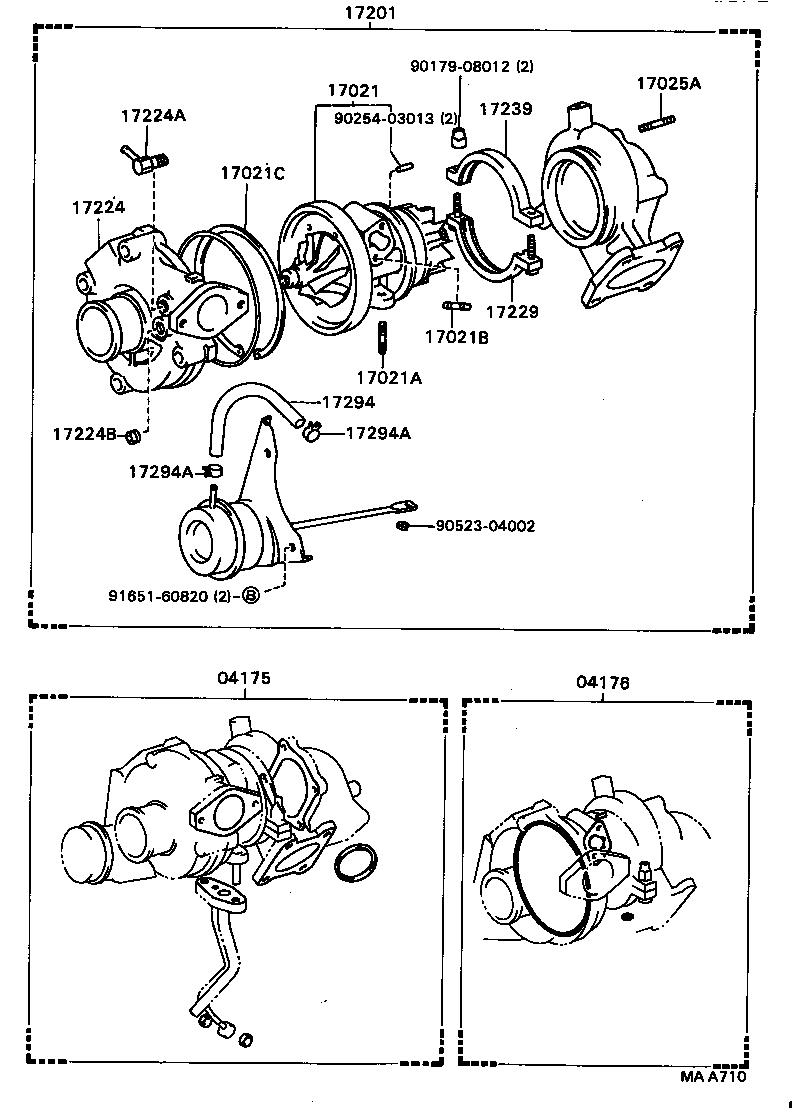

ILLUST NO. 2 OF 2(8411- )2LT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08012 | ||||
| 90254-03013 | ||||
| 90523-04002 | ||||
| 91651-60820 | ||||
