LN60V-MS (1984)
Toyota Hilux

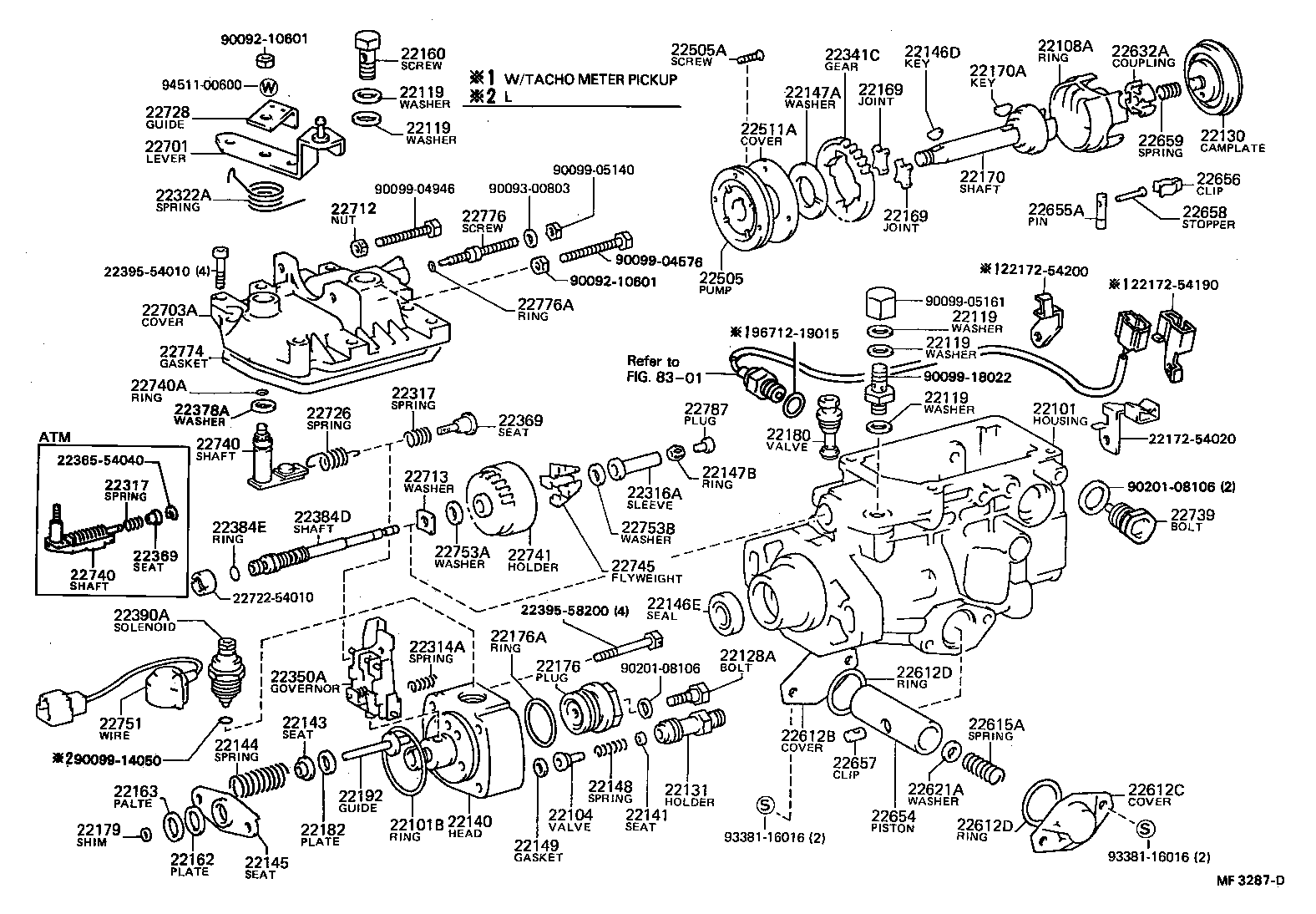

(8311-8406)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54230 |
2L..LN6#..SR |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
L,2L#..LN5#,6# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-54060 |
L,2L#..LN5#,6# |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
L,2L..LN5#,6# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-58200 |
2L..LN51,56,6# |
1 | ||
| 22130-54010 |
L,2LT..LN50,55,60,61 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54110 |
L,2L#..LN5#,6# |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-54410 |
L,2LT..LN50,55,60,61 |
1 | ||
| 22140-64400 |
2L..LN51,56,6# |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
L,2L#..LN5#,6# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
2L..LN51,56,6# |
2 | ||
| 22144-54180 |
L,2LT..LN50,55,60,61 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
L,2L#..LN5#,6# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 90099-15028 |
L,2L#..LN5#,6# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54010 |
L,2L..LN5#,6# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
L,2L#..LN5#,6# |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
L,2L#..LN5#,6# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
L,2L#..LN5#,6# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
L,2L#..LN5#,6# |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
L,2L#..LN5#,6# |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
L,2L#..LN5#,6# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54010 |
L,2L#..LN5#,6# 厚さ=1.9,T=1.9 |
1 | ||
| 22179-54011 |
L,2L#..LN5#,6# 厚さ=2.0,T=2.0 |
1 | ||
| 22179-54015 |
L,2L#..LN5#,6# 厚さ=2.4,T=2.4 |
1 | ||
| 22179-54016 |
L,2L#..LN5#,6# 厚さ=2.5,T=2.5 |
1 | ||
| 22179-54013 |
L,2L#..LN5#,6# 厚さ=2.2,T=2.2 |
1 | ||
| 22179-54012 |
L,2L#..LN5#,6# 厚さ=2.1,T=2.1 |
1 | ||
| 22179-54019 |
L,2L#..LN5#,6# 厚さ=2.8,T=2.8 |
1 | ||
| 22179-54014 |
L,2L#..LN5#,6# 厚さ=2.3,T=2.3 |
1 | ||
| 22179-54018 |
L,2L#..LN5#,6# 厚さ=2.7,T=2.7 |
1 | ||
| 22179-54017 |
L,2L#..LN5#,6# 厚さ=2.6,T=2.6 |
1 | ||
| 22179-54020 |
L,2L#..LN5#,6# 厚さ=2.9,T=2.9 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
L,2L#..LN5#,6# 厚さ=0.5,T=0.5 |
2 | ||
| 22185-54010 |
L,2L#..LN5#,6# 厚さ=1.2,T=1.2 |
2 | ||
| 22186-54010 |
L,2L#..LN5#,6# 厚さ=1.5,T=1.5 |
2 | ||
| 22187-54010 |
L,2L#..LN5#,6# 厚さ=1.8,T=1.8 |
2 | ||
| 22183-54010 |
L,2L#..LN5#,6# 厚さ=0.8,T=0.8 |
2 | ||
| 22188-54010 |
L,2L#..LN5#,6# 厚さ=2.0,T=2.0 |
2 | ||
| 22184-54010 |
L,2L#..LN5#,6# 厚さ=1.0,T=1.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
L,2L#..LN5#,6# |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
L,2L#..LN5#,6# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-58200 |
2L..LN56,6# |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54340 |
2L..LN56,6#..SDX,SR |
1 | ||
| 22322-54450 |
2L..LN56,6#..SDX,SR |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-54060 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
L,2L#..LN5#,6# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
L,2L#..LN5#,6# |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-54110 |
L,2L#..LN5#,6# |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
L,2L#..LN5#,6# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54020 |
L,2L..LN5#,6# |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
L,2L#..LN5#,6# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
L,2L#..LN5#,6# |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64010 |
2L#..LN51,56,6# ﾊﾞﾈ定数=3.30,長さ=37.1,CW=7.9 |
1 | ||
| 22615-54180 |
2L..LN51,56,6# ﾊﾞﾈ定数=3.00,長さ=37.3,CW=8.6 |
1 | ||
| 22615-54030 |
2L..LN51,56,6# ｺｲﾙ巻数=7.1,CW=7.1 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22622-54010 |
L,2L..LN5#,6# 厚さ=1.0,T=1.0 |
1 | ||
| 22624-54010 |
L,2L..LN5#,6# 厚さ=0.2,T=0.2 |
1 | ||
| 22621-54010 |
L,2L#..LN5#,6# 厚さ=0.5,T=0.5 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-54010 |
L,2L..LN5#,6# |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
L,2L#..LN5#,6# NO.1 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
L,2L#..LN5#,6# NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
L,2L..LN5#,6# |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54042 |
L,2L..LN5#,6# NO MARK |
1 | ||
| 22701-54043 |
L,2L..LN5#,6# MARK"0" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54020 |
L,2L..LN5#,6# |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
L,2L#..LN5#,6# |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22716-54010 |
L,2L#..LN5#,6# 厚さ=1.65,T=1.65 |
1 | ||
| 22717-54010 |
L,2L#..LN5#,6# 厚さ=1.85,T=1.85 |
1 | ||
| 22714-54010 |
L,2L#..LN5#,6# 厚さ=1.25,T=1.25 |
1 | ||
| 22715-54010 |
L,2L#..LN5#,6# 厚さ=1.45,T=1.45 |
1 | ||
| 22713-54010 |
L,2L#..LN5#,6# 厚さ=1.05,T=1.05 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-54260 |
2L#..LN6# CW=14.2 |
1 | ||
| 22726-54311 |
2L..LN6# CW=13.5 |
1 | ||
| 22726-54310 |
2L..LN6# CW=15.5 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-54010 |
L,2L..LN5#,6# |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
L,2L#..LN5#,6# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54320 |
2L..LN6# |
1 | ||
| 22740-54310 |
2L..LN6# |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54320 |
2L..LN6# |
1 | ||
| 22740-54310 |
2L..LN6# |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
L,2L#..LN5#,6# |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-54110 |
L,2L#..LN5#,6# |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
L,2L#..LN5#,6# |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
L,2L#..LN5#,6# |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
L,2L#..LN5#,6# |
2 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54018 |
L,2L..LN5#,6# 長さ=4.3,L=4.3 |
1 | ||
| 22787-54020 |
L,2L..LN5#,6# 長さ=4.7,L=4.7 |
1 | ||
| 22787-54024 |
L,2L..LN5#,6# 長さ=5.5,L=5.5 |
1 | ||
| 22787-54022 |
L,2L..LN5#,6# 長さ=5.1,L=5.1 |
1 | ||
| 22787-54021 |
L,2L..LN5#,6# 長さ=4.9,L=4.9 |
1 | ||
| 22787-54019 |
L,2L..LN5#,6# 長さ=4.5,L=4.5 |
1 | ||
| 22787-54025 |
L,2L..LN5#,6# 長さ=5.7,L=5.7 |
1 | ||
| 22787-54023 |
L,2L..LN5#,6# 長さ=5.3,L=5.3 |
1 | ||
| Common parts | ||||
| 22172-54020 | ||||
| 22172-54190 | ||||
| 22172-54200 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22722-54010 | ||||
| 90092-10601 | ||||
| 90093-00803 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-14050 | ||||
| 90099-18022 | ||||
| 90201-08106 | ||||
| 93381-16016 | ||||
| 94511-00600 | ||||
| 96712-19015 | ||||
| Linked diagrams | ||||
| 8301 | ||||

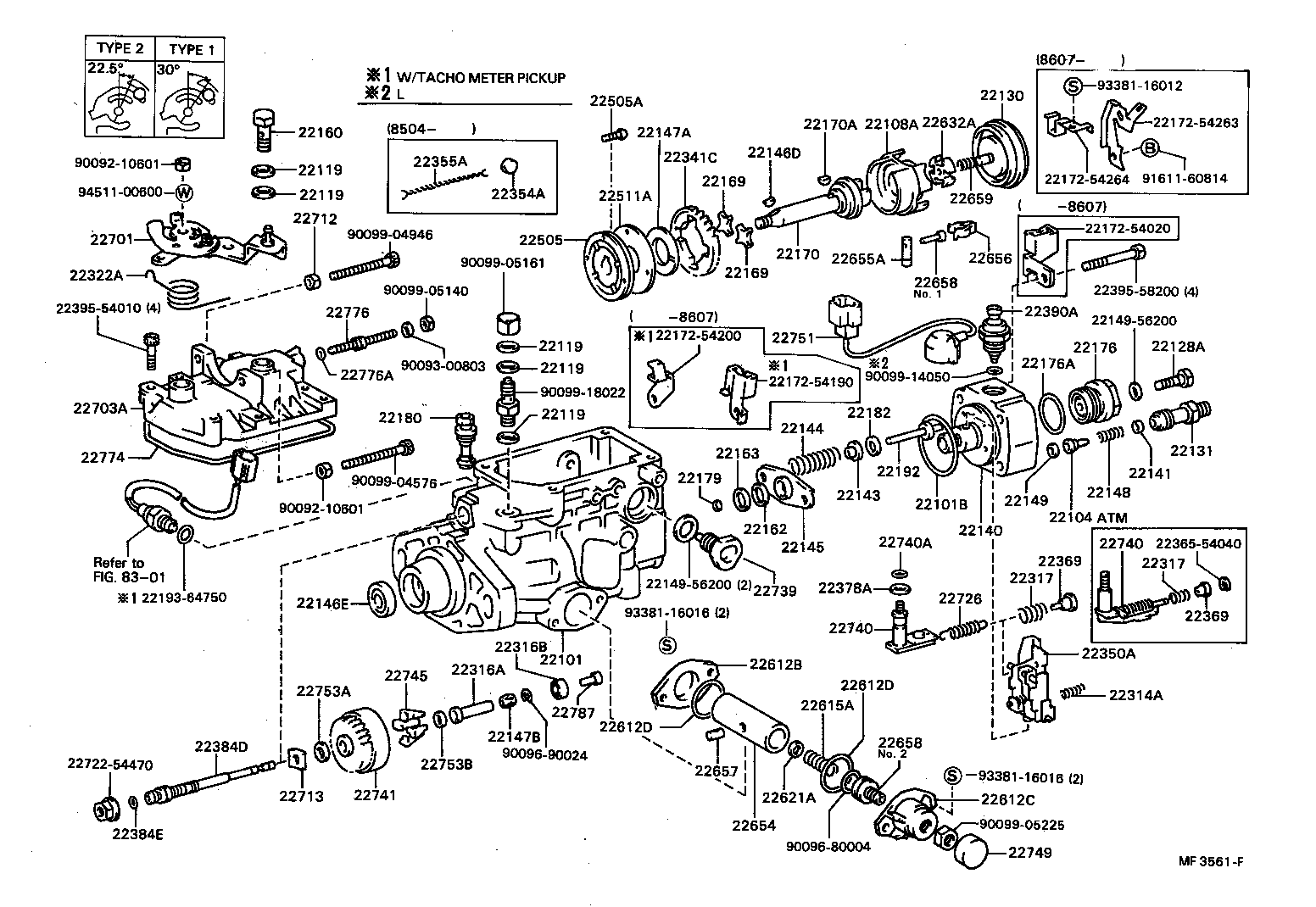

(8406- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54230 |
2L..LN6#..SR |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
L,2L#..LN5#,6# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-54060 |
L,2L#..LN5#,6# |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
L,2L..LN5#,6# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L#..LN5#,6# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-58200 |
2L..LN51,56,6# |
1 | ||
| 22130-54010 |
L,2LT..LN50,55,60,61 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54110 |
L,2L#..LN5#,6# |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-54410 |
L,2LT..LN50,55,60,61 |
1 | ||
| 22140-64400 |
2L..LN51,56,6# |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
L,2L#..LN5#,6# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
2L..LN51,56,6# |
2 | ||
| 22144-54180 |
L,2LT..LN50,55,60,61 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
L,2L#..LN5#,6# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 90099-15028 |
L,2L#..LN5#,6# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54010 |
L,2L..LN5#,6# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
L,2L#..LN5#,6# |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
L,2L#..LN5#,6# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
L,2L#..LN5#,6# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
L,2L#..LN5#,6# |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
L,2L#..LN5#,6# |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
L,2L#..LN5#,6# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54010 |
L,2L#..LN5#,6# 厚さ=1.9,T=1.9 |
1 | ||
| 22179-54011 |
L,2L#..LN5#,6# 厚さ=2.0,T=2.0 |
1 | ||
| 22179-54015 |
L,2L#..LN5#,6# 厚さ=2.4,T=2.4 |
1 | ||
| 22179-54016 |
L,2L#..LN5#,6# 厚さ=2.5,T=2.5 |
1 | ||
| 22179-54013 |
L,2L#..LN5#,6# 厚さ=2.2,T=2.2 |
1 | ||
| 22179-54012 |
L,2L#..LN5#,6# 厚さ=2.1,T=2.1 |
1 | ||
| 22179-54019 |
L,2L#..LN5#,6# 厚さ=2.8,T=2.8 |
1 | ||
| 22179-54014 |
L,2L#..LN5#,6# 厚さ=2.3,T=2.3 |
1 | ||
| 22179-54018 |
L,2L#..LN5#,6# 厚さ=2.7,T=2.7 |
1 | ||
| 22179-54017 |
L,2L#..LN5#,6# 厚さ=2.6,T=2.6 |
1 | ||
| 22179-54020 |
L,2L#..LN5#,6# 厚さ=2.9,T=2.9 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
L,2L#..LN5#,6# 厚さ=0.5,T=0.5 |
2 | ||
| 22185-54010 |
L,2L#..LN5#,6# 厚さ=1.2,T=1.2 |
2 | ||
| 22186-54010 |
L,2L#..LN5#,6# 厚さ=1.5,T=1.5 |
2 | ||
| 22187-54010 |
L,2L#..LN5#,6# 厚さ=1.8,T=1.8 |
2 | ||
| 22183-54010 |
L,2L#..LN5#,6# 厚さ=0.8,T=0.8 |
2 | ||
| 22188-54010 |
L,2L#..LN5#,6# 厚さ=2.0,T=2.0 |
2 | ||
| 22184-54010 |
L,2L#..LN5#,6# 厚さ=1.0,T=1.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
L,2L#..LN5#,6# |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
L,2L#..LN5#,6# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-58200 |
2L..LN56,6# |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54340 |
2L..LN56,6#..SDX,SR |
1 | ||
| 22322-54450 |
2L..LN56,6#..SDX,SR |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-54060 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
L,2L#..LN5#,6#..MTM |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
L,2L#..LN5#,6# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
L,2L#..LN5#,6# |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-54110 |
L,2L#..LN5#,6# |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
L,2L#..LN5#,6# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54020 |
L,2L..LN5#,6# |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
L,2L#..LN5#,6# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
L,2L#..LN5#,6# |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64010 |
2L#..LN51,56,6# ﾊﾞﾈ定数=3.30,長さ=37.1,CW=7.9 |
1 | ||
| 22615-54180 |
2L..LN51,56,6# ﾊﾞﾈ定数=3.00,長さ=37.3,CW=8.6 |
1 | ||
| 22615-54030 |
2L..LN51,56,6# ｺｲﾙ巻数=7.1,CW=7.1 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22622-54010 |
L,2L..LN5#,6# 厚さ=1.0,T=1.0 |
1 | ||
| 22624-54010 |
L,2L..LN5#,6# 厚さ=0.2,T=0.2 |
1 | ||
| 22621-54010 |
L,2L#..LN5#,6# 厚さ=0.5,T=0.5 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-54010 |
L,2L..LN5#,6# |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
L,2L#..LN5#,6# NO.1 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
L,2L#..LN5#,6# NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
L,2L#..LN5#,6# NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
L,2L..LN5#,6# |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54042 |
L,2L..LN5#,6# NO MARK |
1 | ||
| 22701-54043 |
L,2L..LN5#,6# MARK"0" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54020 |
L,2L..LN5#,6# |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
L,2L#..LN5#,6# |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22716-54010 |
L,2L#..LN5#,6# 厚さ=1.65,T=1.65 |
1 | ||
| 22717-54010 |
L,2L#..LN5#,6# 厚さ=1.85,T=1.85 |
1 | ||
| 22714-54010 |
L,2L#..LN5#,6# 厚さ=1.25,T=1.25 |
1 | ||
| 22715-54010 |
L,2L#..LN5#,6# 厚さ=1.45,T=1.45 |
1 | ||
| 22713-54010 |
L,2L#..LN5#,6# 厚さ=1.05,T=1.05 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-54260 |
2L#..LN6# CW=14.2 |
1 | ||
| 22726-54311 |
2L..LN6# CW=13.5 |
1 | ||
| 22726-54310 |
2L..LN6# CW=15.5 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
L,2L#..LN5#,6# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54320 |
2L..LN6# |
1 | ||
| 22740-54310 |
2L..LN6# |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54320 |
2L..LN6# |
1 | ||
| 22740-54310 |
2L..LN6# |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
L,2L#..LN5#,6# |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
L,2L#..LN5#,6# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
L,2L#..LN5#,6# |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-54110 |
L,2L#..LN5#,6# |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
L,2L#..LN5#,6# |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
L,2L#..LN5#,6# |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
L,2L#..LN5#,6# |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
L,2L#..LN5#,6# |
2 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54018 |
L,2L..LN5#,6# 長さ=4.3,L=4.3 |
1 | ||
| 22787-54020 |
L,2L..LN5#,6# 長さ=4.7,L=4.7 |
1 | ||
| 22787-54024 |
L,2L..LN5#,6# 長さ=5.5,L=5.5 |
1 | ||
| 22787-54022 |
L,2L..LN5#,6# 長さ=5.1,L=5.1 |
1 | ||
| 22787-54021 |
L,2L..LN5#,6# 長さ=4.9,L=4.9 |
1 | ||
| 22787-54019 |
L,2L..LN5#,6# 長さ=4.5,L=4.5 |
1 | ||
| 22787-54025 |
L,2L..LN5#,6# 長さ=5.7,L=5.7 |
1 | ||
| 22787-54023 |
L,2L..LN5#,6# 長さ=5.3,L=5.3 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54020 | ||||
| 22172-54190 | ||||
| 22172-54200 | ||||
| 22172-54263 | ||||
| 22172-54264 | ||||
| 22193-64750 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90092-10601 | ||||
| 90093-00803 | ||||
| 90096-80004 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-14050 | ||||
| 90099-18022 | ||||
| 91611-60814 | ||||
| 93381-16012 | ||||
| 93381-16016 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
