LN60V-MS (1984)

Toyota Hilux

Production May 1984 - Aug 1985
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311-8508)L

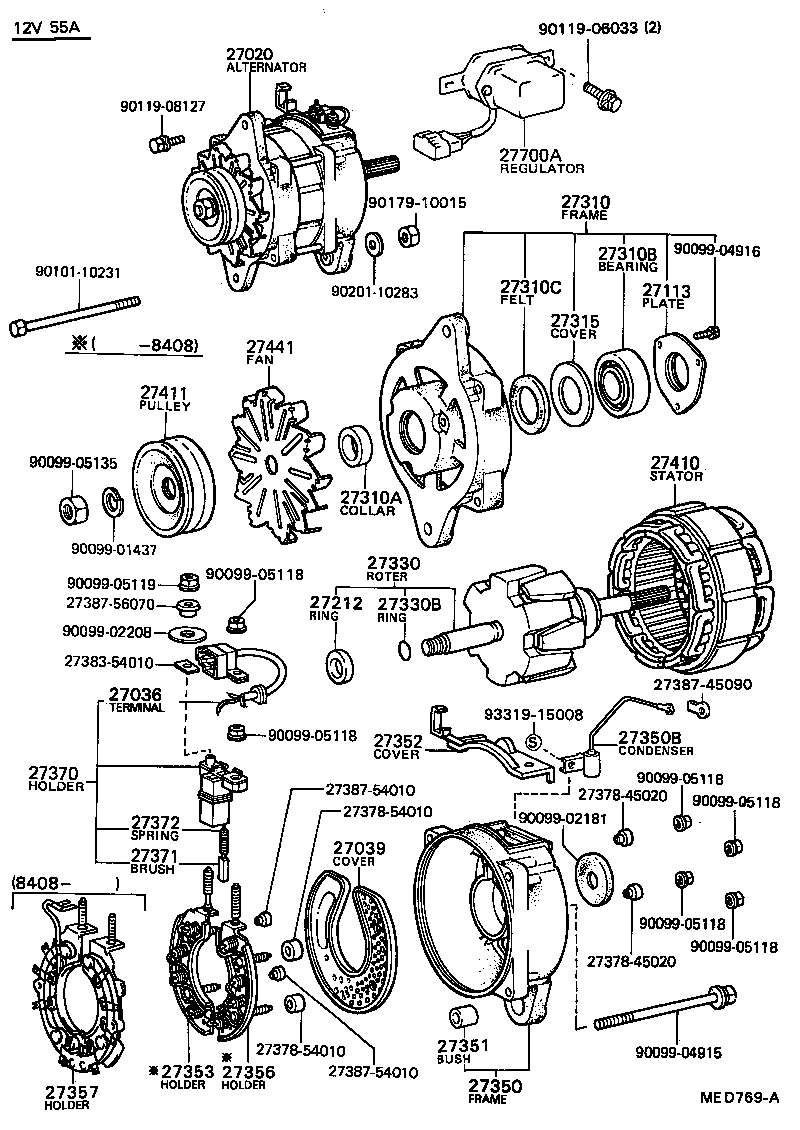

Click highlighted areas on diagram

diagram 27020 27036 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330B 27350 27350B 27351 27352 27353 27356 27357 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9009901437 9009902181 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9010110231 9011906033 9011908127 9017910015 9020110283 9331915008
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-54160

2L#..LN51,56,6#

12V 55A,12V 55A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-54010

L,2L#..LN5#,6#

12V 55A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

2L#..LN51,56,6#

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

2L#..LN51,56,6#

12V 55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54130

2L#..LN51,56,6#

12V 55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

2L#..LN51,56,6#

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

2L#..LN51,56,6#

12V 55A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

2L#..LN51,56,6#

12V 55A

 2
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

2L#..LN51,56,6#

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64010

2L#..LN51,56,6#

12V 55A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

2L#..LN51,56,6#

12V 55A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-54130

2L#..LN51,56,6#

12V 55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52082

2L#..LN51,56,6#

12V 55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

L,2L#..LN5#,6#

12V 55A

 1
27352 - COVER, FRAME BRUSH
27388-64010

2L#..LN51,56,6#

12V 55A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-54010

L,2L..LN5#,6#

12V 55A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-54010

L,2L..LN5#,6#

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54010

L,2L#..LN5#,6#

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

L,2L#..LN5#,6#

12V 55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

L,2L#..LN5#,6#

12V 55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-64010

L,2L..LN5#,6#

12V 55A

 1
27411 - PULLEY, ALTERNATOR
27411-54170

2L#..LN51,56,6#

12V 55A

 1
27441 - FAN, ALTERNATOR
27441-56090

2L#..LN51,56,6#

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72030

L,2L#,2YJ,3YJ..LN5#,6#,YN5#,6#

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90099-01437
90099-02181
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90101-10231
90119-06033
90119-08127
90179-10015
90201-10283
93319-15008
