LN56-PF (1983)

Toyota Hilux

Production Nov 1983 - Aug 1988
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )

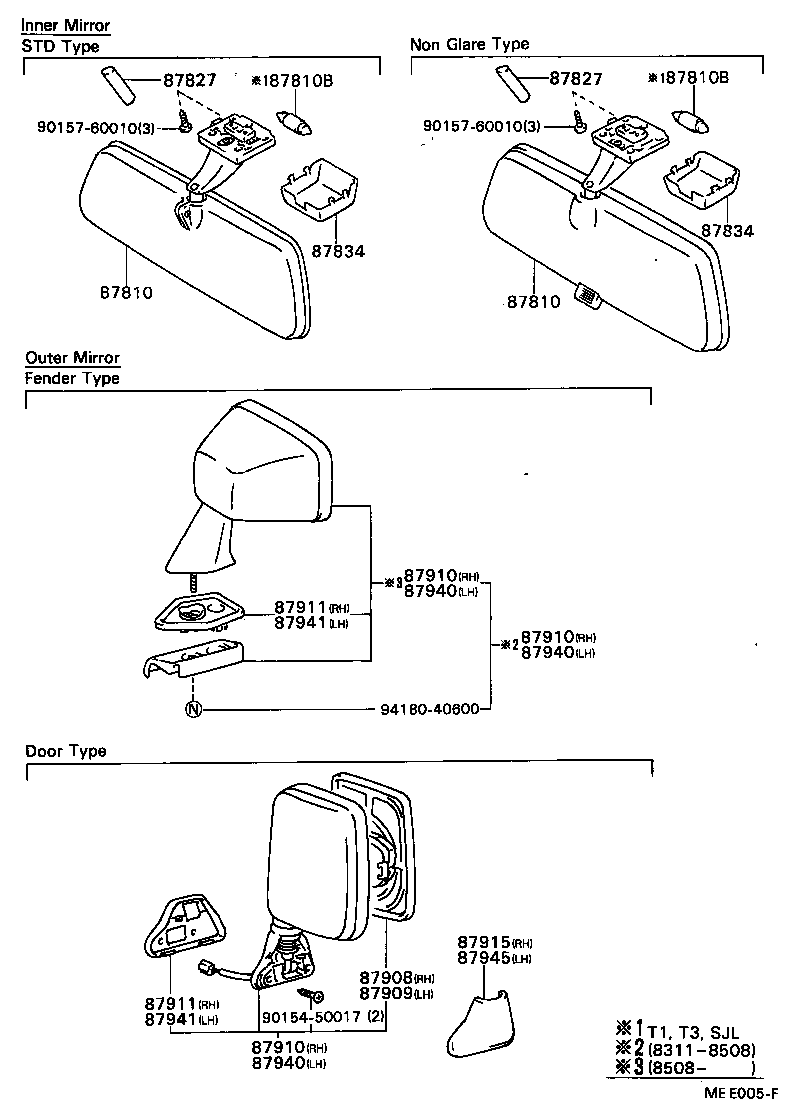

Click highlighted areas on diagram

diagram 87810 87810 87810B 87810B 87827 87827 87834 87834 87908 87909 87910 87910 87910 87911 87911 87915 87940 87940 87940 87941 87941 87945 9015450017 9015760010 9015760010 9418040600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87801-8911103

LN5#,65,YN65..(T1,T3)..(DLX,SDX)

STD TYPE,LIGHT GRAY,GRAY,TRIM1#

 1
87801-8911108

LN5#,65,YN65..(T1,T3)..(DLX,SDX)

STD TYPE,IVORY,IVORY,TRIM4#

 1
87801-8911123

LN5#,65..(SJL,T1,T3)..(DLX,SDX)

STD TYPE,GRAY,GRAY,TRIM1#,8#

 1
87801-8911105

LN5#,65..(SJL,T1,T3)..(DLX,SDX)

STD TYPE,BEIGE,BEIGE,TRIM4#

 1
87801-8911113

LN5#,65,YN65..(T1,T3)..(DLX,SDX)

STD TYPE,LIGHT GRAY,LIGHT GRAY,TRIM1#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87801-8911103

LN5#,65,YN65..(T1,T3)..(DLX,SDX)

STD TYPE,LIGHT GRAY,GRAY,TRIM1#

 1
87801-8911108

LN5#,65,YN65..(T1,T3)..(DLX,SDX)

STD TYPE,IVORY,IVORY,TRIM4#

 1
87801-8911123

LN5#,65..(SJL,T1,T3)..(DLX,SDX)

STD TYPE,GRAY,GRAY,TRIM1#,8#

 1
87801-8911105

LN5#,65..(SJL,T1,T3)..(DLX,SDX)

STD TYPE,BEIGE,BEIGE,TRIM4#

 1
87801-8911113

LN5#,65,YN65..(T1,T3)..(DLX,SDX)

STD TYPE,LIGHT GRAY,LIGHT GRAY,TRIM1#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-13050

LN5#,60,65,YN5#,60,65..SJL,T1,T3

12V 5W,12V 5W

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-13050

LN5#,60,65,YN5#,60,65..SJL,T1,T3

12V 5W,12V 5W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-89101

LN5#,6#,YN5#,6#

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-89101

LN5#,6#,YN5#,6#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-89102

LN5#,60,65,YN5#,60,65..SJL,T1,T3

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-89102

LN5#,60,65,YN5#,60,65..SJL,T1,T3

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-39345

LN5#,6#,YN5#,6#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-39345

LN5#,6#,YN5#,6#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-39345

LN5#,6#,YN5#,6#

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-89105

LN5#,6#,YN5#,6#

FENDER TYPE

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-89105

LN5#,6#,YN5#,6#

FENDER TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-39295

LN5#,YN5#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-39295

LN5#,YN5#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-39295

LN5#,YN5#

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-89103

LN5#,6#,YN5#,6#

FENDER TYPE

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-89103

LN5#,6#,YN5#,6#

FENDER TYPE

 1
Common parts
90154-50017
90157-60010
94180-40600
