LN55-QF (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )LN5#,YN5#

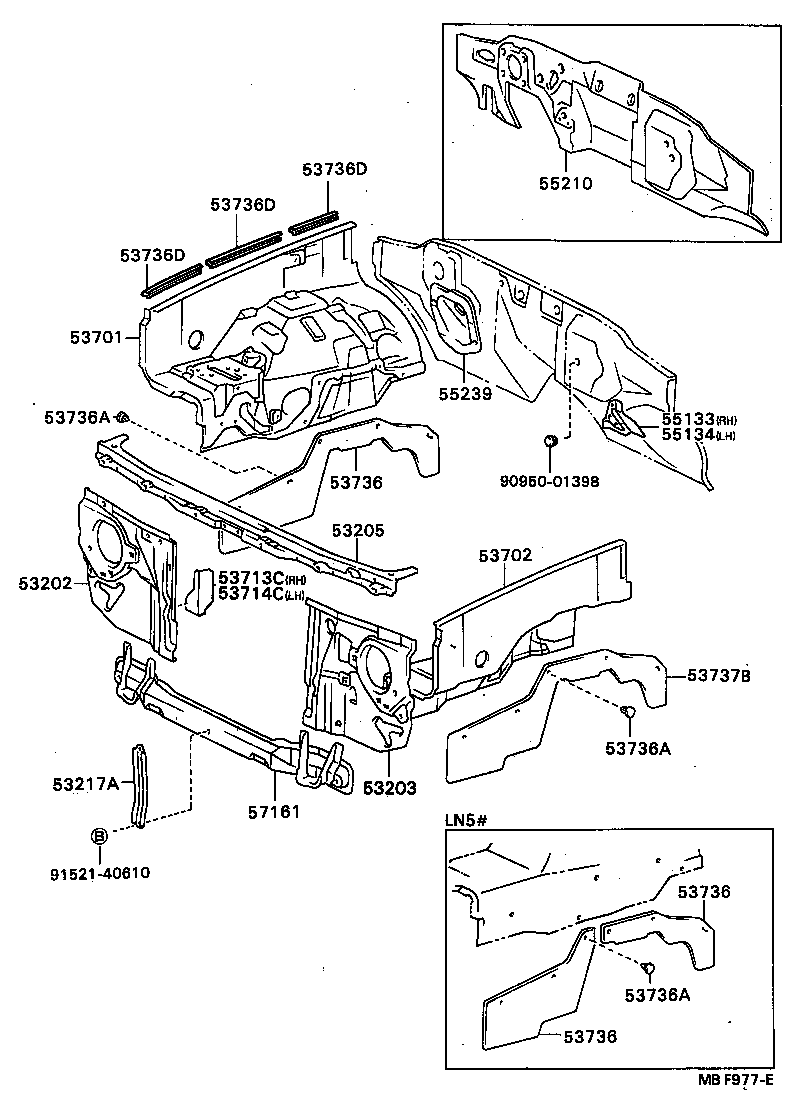

Click highlighted areas on diagram

diagram 53202 53203 53205 53217A 53701 53702 53713C 53714C 53736 53736 53736 53736A 53736A 53736A 53736D 53736D 53736D 53737B 55133 55134 55210 55239 57161 9095001398 9152140610
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-89113

LN5#,6#,YN56,6#..T1,T3,TW

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53212-89112

LN5#,60,65,YN5#,60,65..T1,T3,TW

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-89106

LN5#,60,65,YN5#,60,65..T1,T3,TW

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-89107

LN5#,6#,YN5#,6#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-89128

LN5#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-89173

LN5#

 1
53702-89182

LN5#

COLD SPEC

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-89101

LN5#,6#,YN5#,6#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-89101

LN5#,6#,YN5#,6#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53737-89105

LN5#

RR

 1
53736-89108

LN5#

FR

 1
53736 - SEAL, FRONT FENDER APRON, RH
53737-89105

LN5#

RR

 1
53736-89108

LN5#

FR

 1
53736 - SEAL, FRONT FENDER APRON, RH
53737-89105

LN5#

RR

 1
53736-89108

LN5#

FR

 1
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-1000501

LN5#

BLACK,BLACK

 11
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-1000501

LN5#

BLACK,BLACK

 11
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-1000501

LN5#

BLACK,BLACK

 11
53737B - SEAL, FRONT FENDER APRON, LH
53736-89107

LN5#

 1
55133 - PLATE, FRONT FENDER APRON SET, LOWER RH
55133-89103

LN5#,6#,YN5#,6#

 1
55134 - PLATE, FRONT FENDER APRON SET, LOWER LH
55134-89103

LN5#,6#,YN5#,6#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-89142

LN5#,6#

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55210-89137

LN5#,YN5#..MTM

 1
57161 - CROSSMEMBER, FRONT
57104-89104

LN5#,YN5#

 1
Common parts
90950-01398
91521-40610
