LN55-QF (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )

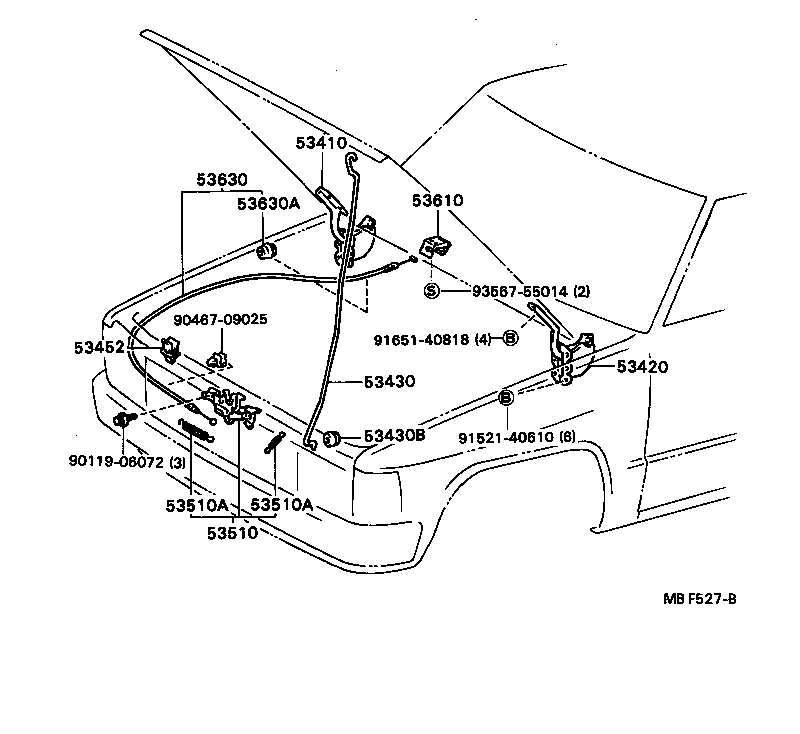

Click highlighted areas on diagram

diagram 53410 53420 53430 53430B 53452 53510 53510A 53510A 53610 53630 53630A 9011906072 9046709025 9152140610 9165140818 9356755014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-89105

LN5#,6#,YN5#,6#

 2
53420 - HINGE ASSY, HOOD, LH
53410-89105

LN5#,6#,YN5#,6#

 2
53430 - SUPPORT ASSY, HOOD
53441-89104

LN5#,6#,YN5#,6#

 1
53430B - GROMMET(FOR HOOD SUPPORT)
90480-15012

LN5#,6#,YN5#,6#

 1
53452 - HOLDER, HOOD STAY
53452-90351

LN5#,6#,YN5#,6#

 1
53510 - LOCK ASSY, HOOD
53510-89112

LN5#,6#,YN5#,6#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-26015

LN5#,6#,YN56,6#

CW=15

 1
90506-09017

LN5#,6#,YN5#,6#

CW=11.7

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-26015

LN5#,6#,YN56,6#

CW=15

 1
90506-09017

LN5#,6#,YN5#,6#

CW=11.7

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-8910204

LN5#,6#,YN5#,6#

BLUE,BLUE,TRIM8#

 1
53601-8910206

LN5#,6#,YN5#,6#

BROWN,BROWN,TRIM4#

 1
53601-8910203

LN5#,6#,YN5#,6#

GRAY,GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-89109

LN5#,6#,YN56,6#..T1,T3,TW

 1
53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE)
90480-15001

LN5#,6#,YN5#,6#

 1
Common parts
90119-06072
90467-09025
91521-40610
91651-40818
93567-55014
