LN55-QF (1983)
Toyota Hilux
ILLUST NO. 1 OF 2(8311- )LN5#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35040 |
LN5#,6#,YN5#,6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-35030 |
LN5#,6#,YN5#,6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35080 |
LN5#,YN5# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-13215 |
LN5#,YN5#..T1,TW |
4 | ||
| 90118-13216 |
LN5#,YN5#..T1 6-LEAF SPRING |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35080 |
LN5#,YN5# |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LN5#,6#,YN5#,6# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LN5#,6#,YN5#,6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LN5#,6#,YN5#,6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LN5#,6#,YN5#,6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN5#,6#,YN5#,6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN5#,6#,YN5#,6# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-35030 |
LN5#,YN5#..T1,TW H=70 |
2 | ||
| 48341-35040 |
LN5#,YN5# H=80 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-35070 |
LN5#,YN5#..T1,TW |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-35070 |
LN5#,YN5#..T1,TW |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-35050 |
LN5#,YN5#..T1,TW |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-35050 |
LN5#,YN5#..T1,TW |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35020 |
LN5#,YN56 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35020 |
LN5#,YN56 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39605 |
LN5#,YN5# ﾏｰｸ 48531−35270 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN5#,YN5# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN5#,YN5# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN5#,YN5# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LN5#,YN5# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
LN5#,YN5# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
LN5#,YN5# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
LN5#,YN5# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
LN5#,YN5# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39605 |
LN5#,YN5# ﾏｰｸ 48531−35270 |
1 | ||
| Common parts | ||||
| 90170-13001 | ||||
| 90201-13023 | ||||
| 90201-15012 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-41020 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

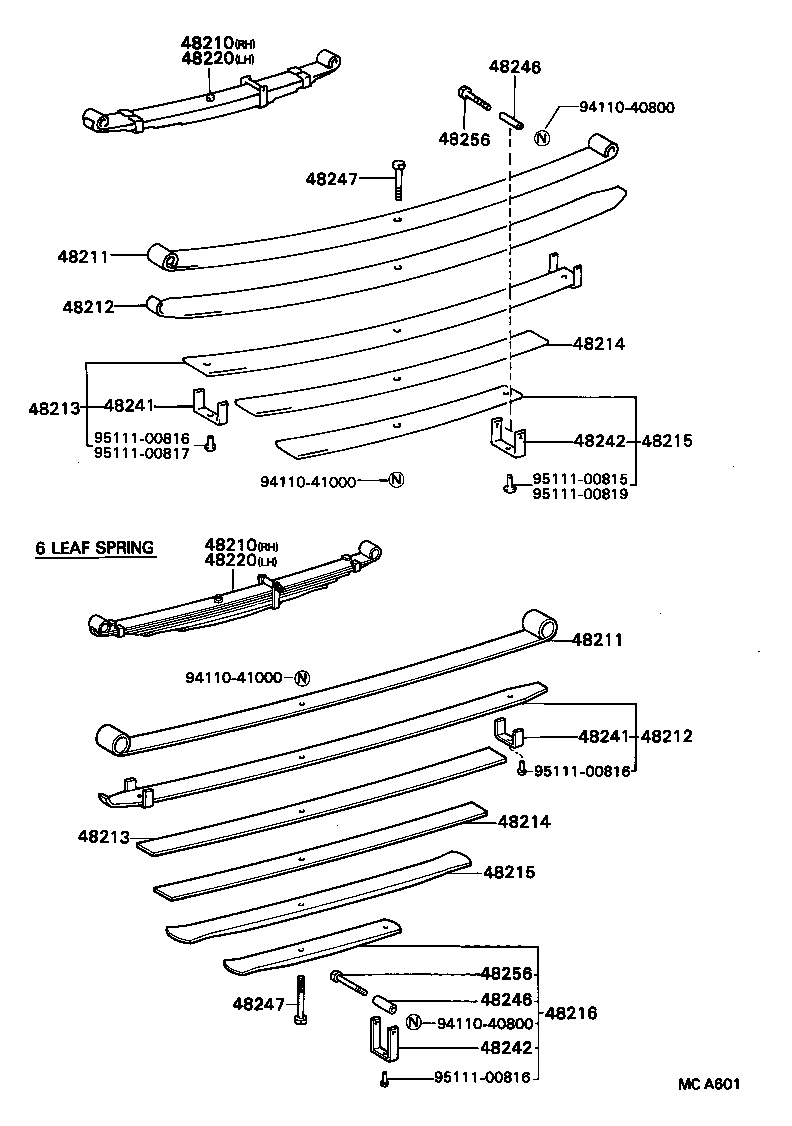

ILLUST NO. 2 OF 2(8311- )LN5#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
1 | ||
| 48210-35250 |
LN5#,YN5#..T1 6枚ﾘｰﾌ |
1 | ||
| 48210-35300 |
LN5#,YN5#..T1,TW |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
1 | ||
| 48210-35250 |
LN5#,YN5#..T1 6枚ﾘｰﾌ |
1 | ||
| 48210-35300 |
LN5#,YN5#..T1,TW |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35320 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48211-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48211-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35320 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48211-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48211-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48202-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48212-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48202-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48212-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48201-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48201-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48213-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48201-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48201-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48213-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48214-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48214-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48214-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48214-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48215-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48202-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-35300 |
LN5#,YN5#..T1,TW |
2 | ||
| 48215-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48202-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-35250 |
LN5#,YN5#..T1 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
1 | ||
| 48210-35300 |
LN5#,YN5#..T1,TW |
1 | ||
| 48210-35250 |
LN5#,YN5#..T1 6枚ﾘｰﾌ,6-LEAF SPRING |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35310 |
LN5#,YN5#..T1,TW W/185R14 TIRE |
1 | ||
| 48210-35300 |
LN5#,YN5#..T1,TW |
1 | ||
| 48210-35250 |
LN5#,YN5#..T1 6枚ﾘｰﾌ,6-LEAF SPRING |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-35141 |
LN5#,YN5#..T1 6-LEAF SPRING |
4 | ||
| 48243-35120 |
LN5#,YN5#..T1,TW |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-35141 |
LN5#,YN5#..T1 6-LEAF SPRING |
4 | ||
| 48243-35120 |
LN5#,YN5#..T1,TW |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48242-35290 |
LN5#,YN5# |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48242-35290 |
LN5#,YN5# |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-35040 |
LN5#,YN5#..T1,T3,TW |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-35040 |
LN5#,YN5#..T1,T3,TW |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48247-35070 |
LN5#,YN5#..T1,TW |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35250 |
LN5#,YN5#..T1 6-LEAF SPRING |
2 | ||
| 48247-35070 |
LN5#,YN5#..T1,TW |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35040 |
LN5#,YN5#..T1,T3,TW |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35040 |
LN5#,YN5#..T1,T3,TW |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 95111-00815 | ||||
| 95111-00816 | ||||
| 95111-00817 | ||||
| 95111-00819 | ||||
