LN55-QF (1983)
Toyota Hilux

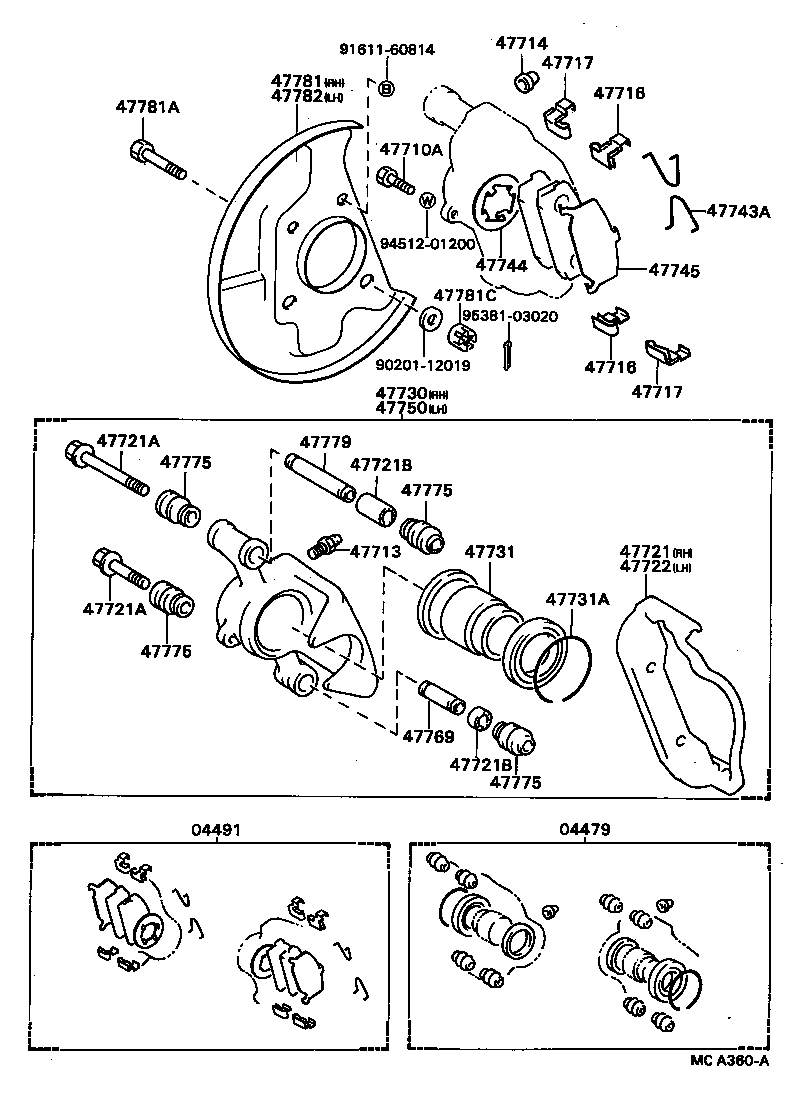

ILLUST NO. 1 OF 2(8311- )LN5#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-40010 |
LN5#,YN5# |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-35050 |
LN5#,YN5# |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12030 |
LN5#,YN5# *12−1.25PX31−20 |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
LN5#,YN5# |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
LN5#,6#,YN5#,6# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-40010 |
LN5#,YN5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-40010 |
LN5#,YN5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-40010 |
LN5#,YN5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-40010 |
LN5#,YN5# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-26040 |
LN5#,YN5# |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
LN5#,YN5# *10−1.25PX65.5−30,*10-1.25PX63-25 |
2 | ||
| 90119-10249 |
LN5#,YN5# *10−1.25PX95.5−30,*10-1.25PX93-25 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
LN5#,YN5# *10−1.25PX65.5−30,*10-1.25PX63-25 |
2 | ||
| 90119-10249 |
LN5#,YN5# *10−1.25PX95.5−30,*10-1.25PX93-25 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16004 |
LN5#,YN5# L=6 |
2 | ||
| 90387-16005 |
LN5#,YN5# L=36 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16004 |
LN5#,YN5# L=6 |
2 | ||
| 90387-16005 |
LN5#,YN5# L=36 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-26040 |
LN5#,YN5# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-26040 |
LN5#,YN5# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-40010 |
LN5#,YN5# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-70001 |
LN5#,YN5# |
1 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-40010 |
LN5#,YN5# |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-26020 |
LN5#,YN5# |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-40020 |
LN5#,YN5# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-26040 |
LN5#,YN5# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
LN5#,YN5# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LN5#,YN5# |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LN5#,YN5# |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LN5#,YN5# |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LN5#,YN5# |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
LN5#,YN5# |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-35040 |
LN5#,YN5# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12006 |
LN5#,YN5# |
2 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90171-12006 |
LN5#,YN5# |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-35040 |
LN5#,YN5# |
1 | ||
| Common parts | ||||
| 90201-12019 | ||||
| 91611-60814 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-35020 |
LN5#,YN5# ﾏｰｸ SUMITOMO PS509 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-26060 |
LN5#,YN5# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-26030 |
LN5#,YN5# |
1 | ||
