LN55-QF (1983)
Toyota Hilux
Production
Nov 1983
-
Aug 1985
Engine
L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8311- )

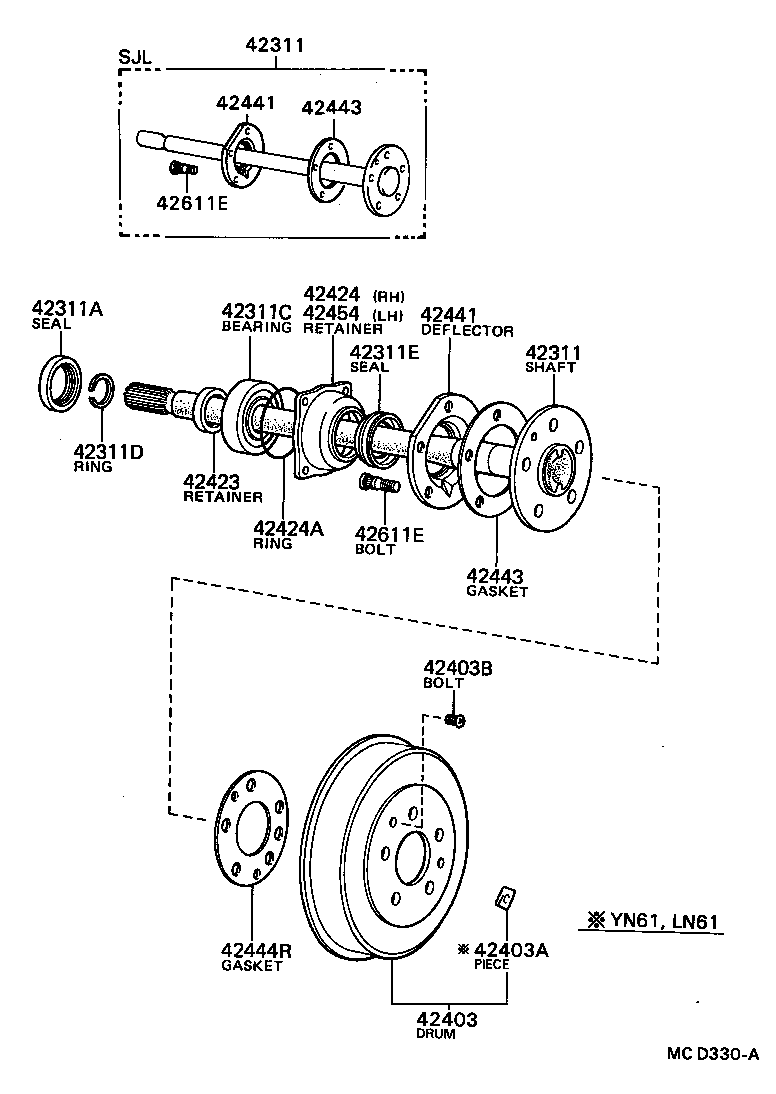

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-35110 |
LN5#,YN5#..T1,T3,TW |
2 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-35110 |
LN5#,YN5#..T1,T3,TW |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-50001 |
LN5#,6#,YN5#,6# |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 97144-06308 |
LN5#,YN5# NACHI |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90520-36045 |
LN5#,6#,YN5#,6# |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48001 |
LN5#,6#,YN5#,6# |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-35030 |
LN5#,YN5# |
2 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10035 |
LN5#,YN5# |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
LN5#,6#,YN5#,6# |
2 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42421-35030 |
LN5#,6#,YN5#,6# |
1 | ||
| 42424A - RING, O (FOR BEARING RETAINER SET) | ||||
| 90301-88077 |
LN5#,6#,YN5#,6# |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-26010 |
LN5#,YN5# |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-26010 |
LN5#,YN5# |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-30010 |
LN5#,YN5# |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-30010 |
LN5#,YN5# |
2 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35020 |
LN5#,YN5# |
2 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42421-35030 |
LN5#,6#,YN5#,6# |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02037 |
LN5#,YN5#..T1,T3,TW |
10 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02037 |
LN5#,YN5#..T1,T3,TW |
10 | ||
