LN55-QDP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )LN55,56,YN56..TW

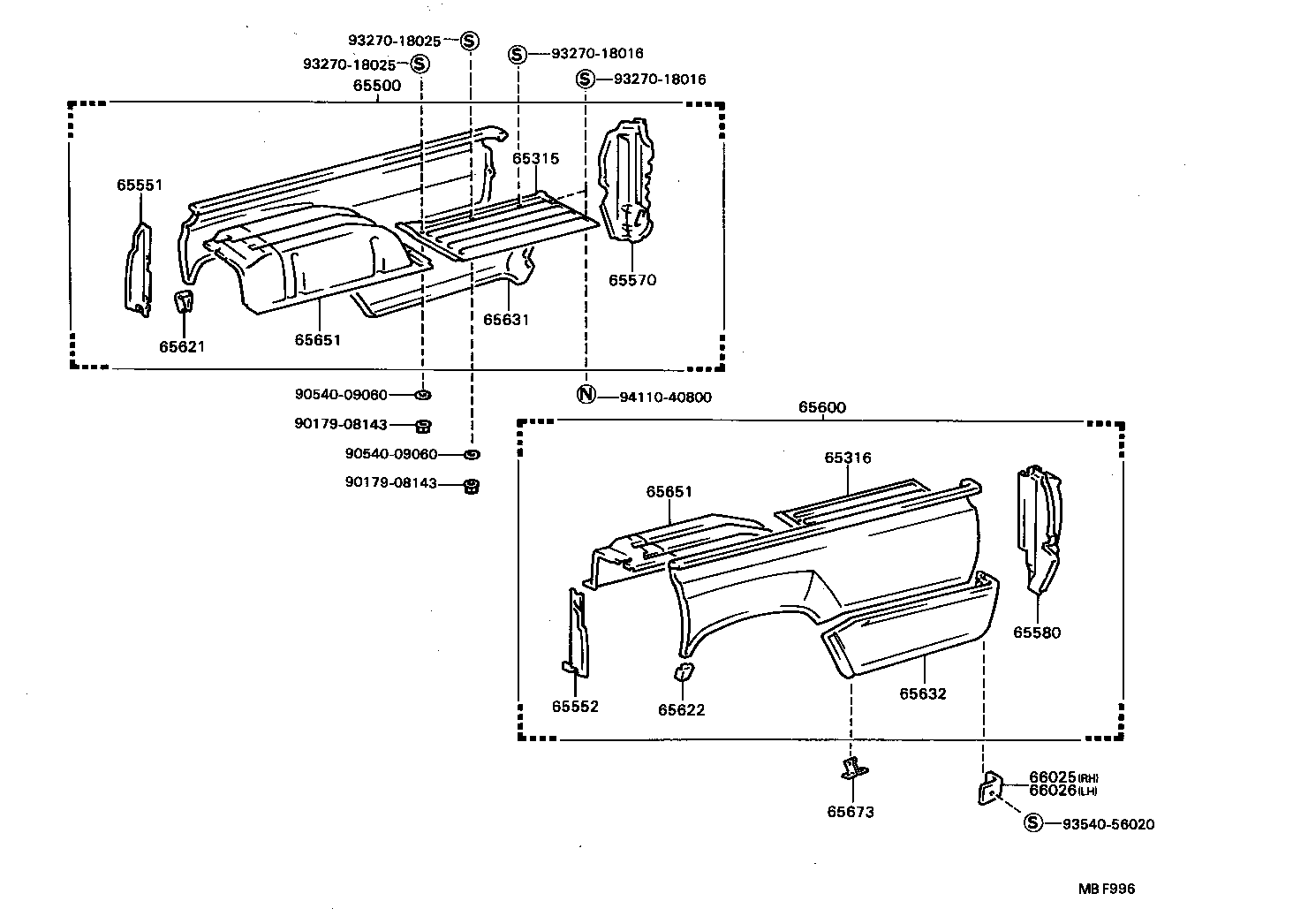

Click highlighted areas on diagram

diagram 65315 65316 65500 65551 65552 65570 65580 65600 65621 65622 65631 65632 65651 65651 65673 66025 66026 9017908143 9017908143 9054009060 9054009060 9327018016 9327018016 9327018025 9327018025 9354056020 9411040800
Part # Description Qty Price
65315 - PANEL, FLOOR REAR CORNER, RH
65315-89115

LN55,56,YN56..T1,TW

 1
65316 - PANEL, FLOOR REAR CORNER, LH
65316-89115

LN55,56,YN56..T1,TW

 1
65631 - SKIRT, SIDE PANEL, REAR RH
65623-89113

LN55,56,YN56..T1,TW

 1
65632 - SKIRT, SIDE PANEL, REAR, LH
65624-89113

LN55,56,YN56..T1,TW

 1
65673 - BRACE, SIDE PANEL SKIRT, REAR
65608-89104

LN5#,YN5#

RH

 1
65609-89102

LN5#,YN5#

LH

 1
66025 - BUMPER SUB-ASSY, REAR BODY RUBBER, RH
75916-89102

LN5#,60,65,YN5#,60,65..T1,TW

 1
66026 - BUMPER SUB-ASSY, REAR BODY RUBBER, LH
75918-89102

LN5#,60,65,YN5#,60,65..T1,TW

 1
Common parts
90179-08143
90540-09060
93270-18016
93270-18025
93540-56020
94110-40800
