LN55-QDP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )TW

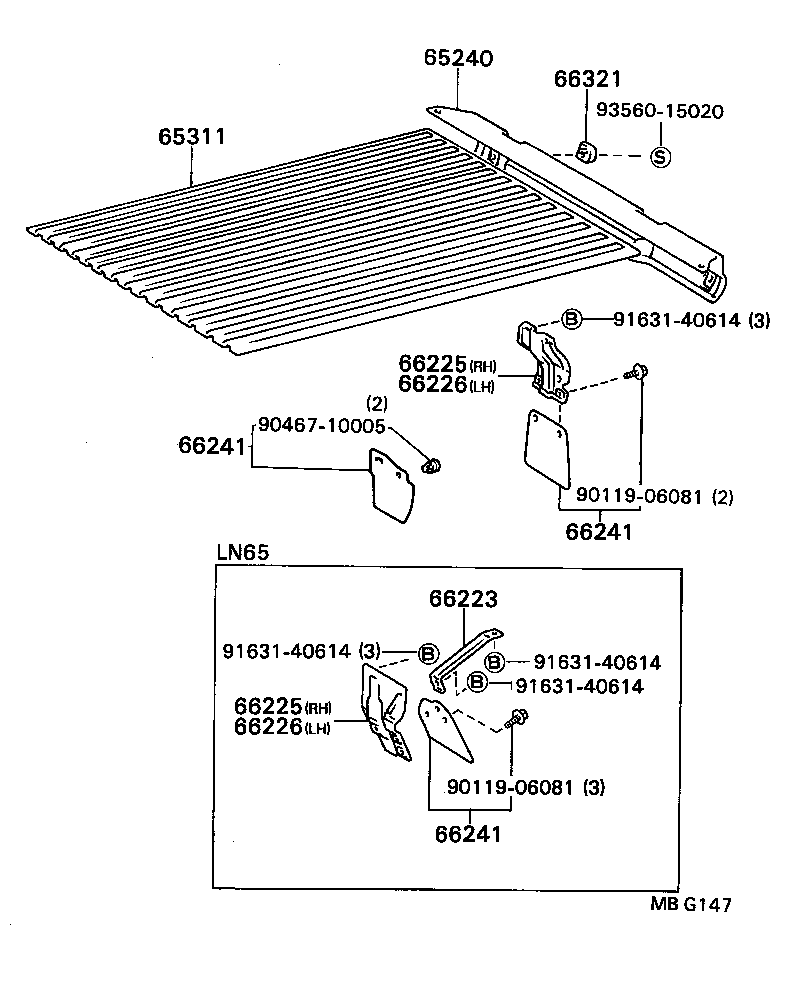

Click highlighted areas on diagram

diagram 65240 65311 66223 66225 66225 66226 66226 66241 66241 66241 66321 9011906081 9011906081 9046710005 9163140614 9163140614 9163140614 9163140614 9356015020
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-89116

LN5#,60,65,YN5#,60,65..T1,TW

 1
66225 - SUPPORT, REAR MUDGUARD, RH
76647-89101

LN5#,YN5#..T1,TW

 1
66225 - SUPPORT, REAR MUDGUARD, RH
76647-89101

LN5#,YN5#..T1,TW

 1
66226 - SUPPORT, REAR MUDGUARD, LH
76648-89101

LN5#,YN5#..T1,TW

 1
66226 - SUPPORT, REAR MUDGUARD, LH
76648-89101

LN5#,YN5#..T1,TW

 1
66241 - MUDGUARD, REAR
66241-39015

LN55,YN56..TW

RR

 2
66241 - MUDGUARD, REAR
66241-39015

LN55,YN56..TW

RR

 2
66241 - MUDGUARD, REAR
66241-39015

LN55,YN56..TW

RR

 2
66321 - BUMPER, GATE RUBBER
65739-89102

LN5#,60,65,YN5#,60,65..T1,TW

 2
Common parts
90119-06081
90467-10005
91631-40614
93560-15020
